Securing APIs with Apigee X

Join Sign in

Securing APIs with Apigee X

2 hours 1 Credit

GSP844

Google Cloud self-paced labs logo

Overview

Apigee is a platform for developing and managing APIs. Apigee can help you secure access to your APIs and rate limit access to them. Apigee also provides features used to secure internal access to API data.

In this lab, you create an API that requires OAuth tokens for access. You use the SpikeArrest policy to limit the rate of API calls by application, and you use private variables and data masking to hide sensitive data from users who debug API traffic.

Objectives

In this lab, you learn how to perform the following tasks:

  • Secure access to APIs by requiring an OAuth token

  • Limit the overall rate of traffic and the rate by application with the SpikeArrest policy

  • Use private variables and data masking to hide sensitive data while debugging API calls

  • Restrict calls to backend to specified resources

  • Rewrite backend error messages to protect against data leakage

Setup and requirements

Before you click the Start Lab button

Read these instructions. Labs are timed and you cannot pause them. The timer, which starts when you click Start Lab, shows how long Google Cloud resources will be made available to you.

This hands-on lab lets you do the lab activities yourself in a real cloud environment, not in a simulation or demo environment. It does so by giving you new, temporary credentials that you use to sign in and access Google Cloud for the duration of the lab.

To complete this lab, you need:

  • Access to a standard internet browser (Chrome browser recommended).
Note: Use an Incognito or private browser window to run this lab. This prevents any conflicts between your personal account and the Student account, which may cause extra charges incurred to your personal account.
  • Time to complete the lab---remember, once you start, you cannot pause a lab.
Note: If you already have your own personal Google Cloud account or project, do not use it for this lab to avoid extra charges to your account. Note: It is recommended that you use a new Incognito window to complete this lab.

How to start your lab and sign in to the Google Cloud Console

  1. Click the Start Lab button. If you need to pay for the lab, a pop-up opens for you to select your payment method. On the left is the Lab Details panel with the following:

    • The Open Google Console button
    • Time remaining
    • The temporary credentials that you must use for this lab
    • Other information, if needed, to step through this lab
  2. Click Open Google Console. The lab spins up resources, and then opens another tab that shows the Sign in page.

    Tip: Arrange the tabs in separate windows, side-by-side.

    Note: If you see the Choose an account dialog, click Use Another Account.
  3. If necessary, copy the Username from the Lab Details panel and paste it into the Sign in dialog. Click Next.

  4. Copy the Password from the Lab Details panel and paste it into the Welcome dialog. Click Next.

    Important: You must use the credentials from the left panel. Do not use your Google Cloud Skills Boost credentials. Note: Using your own Google Cloud account for this lab may incur extra charges.
  5. Click through the subsequent pages:

    • Accept the terms and conditions.
    • Do not add recovery options or two-factor authentication (because this is a temporary account).
    • Do not sign up for free trials.

After a few moments, the Cloud Console opens in this tab.

Note: You can view the menu with a list of Google Cloud Products and Services by clicking the Navigation menu at the top-left. Navigation menu icon

Activate Cloud Shell

Cloud Shell is a virtual machine that is loaded with development tools. It offers a persistent 5GB home directory and runs on the Google Cloud. Cloud Shell provides command-line access to your Google Cloud resources.

  1. Click Activate Cloud Shell Activate Cloud Shell icon at the top of the Google Cloud console.

When you are connected, you are already authenticated, and the project is set to your PROJECT_ID. The output contains a line that declares the PROJECT_ID for this session:

Your Cloud Platform project in this session is set to YOUR_PROJECT_ID

gcloud is the command-line tool for Google Cloud. It comes pre-installed on Cloud Shell and supports tab-completion.

  1. (Optional) You can list the active account name with this command:

gcloud auth list
  1. Click Authorize.

  2. Your output should now look like this:

Output:

ACTIVE: * ACCOUNT: student-01-xxxxxxxxxxxx@qwiklabs.net To set the active account, run: $ gcloud config set account `ACCOUNT`
  1. (Optional) You can list the project ID with this command:

gcloud config list project

Output:

[core] project = <project_ID>

Example output:

[core] project = qwiklabs-gcp-44776a13dea667a6 Note: For full documentation of gcloud, in Google Cloud, refer to the gcloud CLI overview guide.

Open the Apigee UI

The Apigee UI is accessed on a page separate from the Google Cloud Console. This lab has automatically created an Apigee organization that has the same name as the Google Cloud project.

  • Click to open the Apigee UI.

    You may also open the Apigee UI from the Google Cloud Console by opening the Navigation menu (Navigation menu) and selecting Tools > Apigee.

If you see an error indicating that the project does not have an organization provisioned, the tab might be trying to load the organization for a previous lab.

If you get this error:

  • Click on the organization dropdown.

    Not provisioned error message

    The organization dropdown should show an organization that has the same name as the Google Cloud project.

    Apigee UI organization dropdown

    The organizations listed are those that are accessible by the logged-in user. For this lab, you should be logged in with the lab credentials provided in the Lab Details panel when you started the lab.

    You can navigate the Apigee UI using its left navigation menu. The landing page also shows quick links for navigating to commonly used locations.

Task 1. Proxy the backend service using an Apigee API proxy

In this task, you create an Apigee API proxy that acts as a facade for a backend service. The API proxy will use a service account to allow it to present OpenID Connect identity tokens to the Cloud Run service.

A backend service named simplebank-rest has already been created and deployed to Cloud Run. A service account has also been created for you.

Create the Apigee proxy

  1. In Cloud Shell, to retrieve the URL for the backend service, use the following command:

    gcloud run services describe simplebank-rest --platform managed --region us-west1 --format 'value(status.url)'

    Save this URL, as it will be used when creating the API proxy.

  2. Select the Apigee UI tab in your browser window.

  3. On the left navigation menu, select Develop > API Proxies.

  4. To create a new proxy using the proxy wizard, click Create New.

    You will create a reverse proxy for your backend service. This API proxy will use an OpenAPI specification to create a skeleton for the API.

  5. In the Reverse proxy box, click Use OpenAPI Spec.

  6. Specify the following for the OpenAPI Spec URL:

    https://storage.googleapis.com/cloud-training-cors/api-dev-quest/simplebank-backend.yaml Note: If you would like to look at the OpenAPI specification, open the same URL in a browser and the OpenAPI specification YAML file will be downloaded to your computer.
  7. Click Select.

  8. Specify the following for the Proxy details:

    Property Value
    Name bank-v1
    Base path /bank/v1
    Description SimpleBank read-only API
    Target (Existing API) backend URL
    Note: Confirm that you are using "/bank/v1" for the base path, not "/bank-v1".

    The target should be the backend URL you retrieved earlier in the task. The target should look something like this:

    https://simplebank-rest-nu7rb74j5a-uw.a.run.app
  9. Click Next.

  10. Leave the Common Policies settings at their defaults, and click Next.

    The OpenAPI operations page shows a list of operations that are documented in the backend OpenAPI specification. In this case, you are creating an API that should only allow access to read-only operations of the backend service.

  11. On the OpenAPI operations page, unselect the four POST operations and the two PUT operations, and then click Next.

    Only the GET operations should remain selected.

  12. On the summary page, leave the settings at their defaults, and click Create.

  13. Click Edit proxy.

  14. If a Switch to Classic link is in the upper right corner, click that link.

  15. Click the Develop tab.

    Note: Flows have been added to the proxy endpoint, each one specifying a verb and path condition of one of the operations from the OpenAPI spec.

Modify the target to send an OpenID Connect identity token

The backend service is deployed to require authenticated access, so you cannot call the service without a valid OpenID Connect identity token.

The HTTPTargetConnection specifies the backend target for the service.

  1. In the Navigator menu for the proxy, in the Target Endpoints section, click PreFlow.

  2. Find the following code (your URL will be different):

    <HTTPTargetConnection> <URL>https://simplebank-rest-zce6j3rjwq-uw.a.run.app</URL> </HTTPTargetConnection> Note: If you do not see the HTTPTargetConnection section, make sure you have clicked on the PreFlow in the Target Endpoints section, not in the Proxy Endpoints section.
  3. Below the URL, add an Authentication section that looks like this:

    <Authentication> <GoogleIDToken> <Audience>AUDIENCE</Audience> </GoogleIDToken> </Authentication>
  4. Replace AUDIENCE with the URL value already in the HTTPTargetConnection section. Your code should now look similar to this, except with your specific URL in the URL and Audience elements:

    <TargetEndpoint name="default"> <PreFlow name="PreFlow"> <Request/> <Response/> </PreFlow> <Flows/> <PostFlow name="PostFlow"> <Request/> <Response/> </PostFlow> <HTTPTargetConnection> <URL>https://simplebank-rest-zce6j3rjwq-uw.a.run.app</URL> <Authentication> <GoogleIDToken> <Audience>https://simplebank-rest-zce6j3rjwq-uw.a.run.app</Audience> </GoogleIDToken> </Authentication> </HTTPTargetConnection> </TargetEndpoint>
  5. Click Save.

Click Check my progress to verify the objective. Create the API proxy

Task 2. Add OAuth to the API proxy

In this task, you add an OAuthV2 policy to the API proxy. An OAuthV2 policy using the VerifyJWTAccessToken operation enforces verification of access tokens at runtime, allowing only applications with a valid OAuth access token to access the API.

The OAuthV2 policy can create and verify both opaque tokens and JSON Web Tokens (JWTs). This API proxy will use JWTs for the access tokens.

A property set will be used to store the signing secret used in the creation and verification of the JWT.

Create the signing secret in the property set

The JWT will be signed using a hash-based message authentication code (HMAC). This type of cryptographic signing requires a secret.

  1. In the Navigator menu for the proxy, next to Resources, click +.

  2. In the File Type dropdown, select Property Set.

  3. Specify oauth.properties for the File Name, and then click Add.

  4. In the oauth.properties code pane, add the following property:

    secret=thisisnotagoodsecret,useabettersecretinproduction

    This value can be accessed in the code by using the flow variable propertyset.oauth.secret.

    Note: Property set values are stored in plaintext. In a production environment, you would likely store the HMAC secret in an encrypted location, and you would definitely want to use a more secure (random) secret.

Add an AssignMessage policy to retrieve the property set value

The signing secret must be provided to the OAuth policy in a private variable, but the propertyset.oauth.secret variable is not private. This AssignMessage policy will create a private variable from the property set variable.

  1. In the Navigator menu for the proxy, in the Proxy Endpoints section, under default, click PreFlow.

    The request PreFlow in the default proxy endpoint is the first flow that is executed when a request comes in to the API proxy.

    The OAuthV2 policy requires the secret, and will be executed very early on in the API proxy.

  2. In the Flow pane, click the +Step button in the upper right above the request flow.

  3. In the Mediation section, select Assign Message, and then set the Display Name and Name to AM-GetSecret.

  4. Click Add.

    The AssignMessage policy configuration is shown in the Code pane.

  5. Change the policy configuration to:

    <AssignMessage name="AM-GetSecret"> <AssignVariable> <Name>private.secretkey</Name> <Ref>propertyset.oauth.secret</Ref> </AssignVariable> <IgnoreUnresolvedVariables>false</IgnoreUnresolvedVariables> </AssignMessage>

    The AssignVariable setting copies the propertyset.oauth.secret variable into the private.secretkey variable.

    The IgnoreUnresolvedVariables setting causes the AssignMessage policy to raise a fault if propertyset.oauth.secret cannot be resolved.

Add the OAuthV2 policy to verify a token

  1. In the Navigator menu for the proxy, in the Proxy Endpoints section, under default, click PreFlow.

    The OAuthV2 policy should execute after the AssignMessage policy.

  2. In the Flow pane, click the +Step button in the upper right above the request flow.

  3. In the Security section, select OAuth v2.0, and then set the Display Name and Name to OA-VerifyToken.

  4. Click Add, and then click on the OA-VerifyToken icon.

    The OAuthV2 policy configuration is shown in the Code pane.

  5. Change the OAuthV2 policy configuration to:

    <OAuthV2 name="OA-VerifyToken"> <Operation>VerifyJWTAccessToken</Operation> <Algorithm>HS256</Algorithm> <SecretKey> <Value ref="private.secretkey"/> </SecretKey> </OAuthV2>

    The configuration specifies that the JWT access token will use the HS256 (HMAC-SHA256) algorithm, using the private variable created in the AssignMessage policy as the secret key.

  6. Click Save.

Click Check my progress to verify the objective. Add policies to verify tokens

Task 3. Add policies to generate tokens

A separate proxy endpoint will also be added to the API proxy to allow creation of the JWT tokens.

Add a new proxy endpoint for token operations

In a production environment, a separate proxy is typically created for generating tokens. For this lab, you will create the token generation flow in a separate proxy endpoint within the same API proxy.

  1. In the Navigator menu for the proxy, on the Proxy Endpoints row, click the + button.

    Note: Do not click the "+" button that is next to "default."

    This will create a new proxy endpoint to be used when creating a new JWT.

  2. For Proxy Endpoint Name, specify token, and then click Add.

    The new proxy endpoint named token will be shown in the Code pane.

  3. Change the entire token flow configuration from:

    <ProxyEndpoint name="token"> . . . </ProxyEndpoint>

    to:

    <ProxyEndpoint name="token"> <PreFlow name="PreFlow"> <Request/> <Response/> </PreFlow> <PostFlow name="PostFlow"> <Request/> <Response/> </PostFlow> <Flows/> <HTTPProxyConnection> <BasePath>/token</BasePath> </HTTPProxyConnection> <RouteRule name="noTarget"/> </ProxyEndpoint>
  4. Click Save.

    This updated configuration results in 2 specific changes:

    • The BasePath is set to /token. This is the base path that will be used when creating a token.
    • The RouteRule no longer references a target endpoint. The API proxy creates a token without calling the backend service.

Create a flow for generating a token

  1. In the Navigator menu for the proxy, in the Proxy Endpoints section, next to token, click +.

  2. For the new conditional flow, specify the following values:

    Property Value
    Flow Name generateToken
    Condition Type select Custom
  3. For Condition, specify this value:

    (proxy.pathsuffix MatchesPath "/") and (request.verb = "POST") and (request.formparam.grant_type = "client_credentials")

    Only valid client credentials token requests will be allowed.

  4. Click Add.

Attach the AssignMessage policy to retrieve the property set value

The OAuthV2 policy that will generate tokens will also need access to the private.secretkey variable.

  1. In the Navigator menu for the proxy, in the Proxy Endpoints section, under token, click generateToken.

  2. In the Flow pane, click the +Step button in the upper right above the request flow.

  3. For Policy Instance, select Existing, and then click AM-GetSecret.

  4. Click Add.

    The same AssignMessage policy is attached to the token proxy endpoint PreFlow.

Add an OAuthV2 policy to generate a token

  1. In the Navigator menu for the proxy, in the Proxy Endpoints section, under token, click generateToken.

  2. In the Flow pane, click the +Step button in the upper right above the request flow.

  3. In the Security section, select OAuth v2.0, and then set the Display Name and Name to OA-GenerateToken.

  4. Click Add, and then click on the OA-GenerateToken icon.

    The OAuthV2 policy configuration is shown in the Code pane.

  5. Change the OAuthV2 policy configuration to:

    <OAuthV2 name="OA-GenerateToken"> <Operation>GenerateJWTAccessToken</Operation> <Algorithm>HS256</Algorithm> <SecretKey> <Value ref="private.secretkey"/> </SecretKey> <SupportedGrantTypes> <!-- pass client_id and client_secret via basic auth header --> <GrantType>client_credentials</GrantType> </SupportedGrantTypes> <!-- 1800000 ms = 1800 s = 30 min --> <ExpiresIn>1800000</ExpiresIn> <GenerateResponse enabled="true"/> <RFCCompliantRequestResponse>true</RFCCompliantRequestResponse> </OAuthV2>

    This configuration will allow creation of a JWT OAuth token which expires in 30 minutes.

Raise a fault for an invalid token request

  1. In the Navigator menu for the proxy, in the Proxy Endpoints section, next to token, click +.

  2. For the new conditional flow, specify the following values:

    Property Value
    Flow Name invalidRequest
    Condition Type select Custom
    Condition DELETETHIS

    The condition will be deleted once the flow has been added, because any invalid generateToken request should go through this flow.

  3. Click Add.

  4. In the invalidRequest flow, remove the following line:

    <Condition>DELETETHIS</Condition>
  5. In the Navigator menu for the proxy, in the Proxy Endpoints section, under token, click invalidRequest.

  6. In the Flow pane, click the +Step button in the upper right above the request flow.

  7. In the Mediation section, select Raise Fault, and then set the Display Name and Name to RF-InvalidTokenRequest.

  8. Click Add, and then click on the RF-InvalidTokenRequest icon.

    The RaiseFault policy configuration is shown in the Code pane.

  9. Change the RaiseFault policy configuration to:

    <RaiseFault name="RF-InvalidTokenRequest"> <FaultResponse> <Set> <StatusCode>400</StatusCode> <ReasonPhrase>Bad Request</ReasonPhrase> <Payload contentType="application/json">{ "error":"Bad request: use POST /token" }</Payload> </Set> </FaultResponse> <IgnoreUnresolvedVariables>true</IgnoreUnresolvedVariables> </RaiseFault>

    This will create a 400 Bad Request response if the request was invalid.

  10. Click Save.

Click Check my progress to verify the objective. Add policies to generate tokens

Task 4. Deploy the OAuth proxy

In this task, you deploy the API proxy and confirm that access requires an OAuth token.

Confirm that the runtime instance is available

  1. In Cloud Shell, paste and run the following set of commands:

    export INSTANCE_NAME=eval-instance; export ENV_NAME=eval; export PREV_INSTANCE_STATE=; echo "waiting for runtime instance ${INSTANCE_NAME} to be active"; while : ; do export INSTANCE_STATE=$(curl -s -H "Authorization: Bearer $(gcloud auth print-access-token)" -X GET "https://apigee.googleapis.com/v1/organizations/${GOOGLE_CLOUD_PROJECT}/instances/${INSTANCE_NAME}" | jq "select(.state != null) | .state" --raw-output); [[ "${INSTANCE_STATE}" == "${PREV_INSTANCE_STATE}" ]] || (echo; echo "INSTANCE_STATE=${INSTANCE_STATE}"); export PREV_INSTANCE_STATE=${INSTANCE_STATE}; [[ "${INSTANCE_STATE}" != "ACTIVE" ]] || break; echo -n "."; sleep 5; done; echo; echo "instance created, waiting for environment ${ENV_NAME} to be attached to instance"; while : ; do export ATTACHMENT_DONE=$(curl -s -H "Authorization: Bearer $(gcloud auth print-access-token)" -X GET "https://apigee.googleapis.com/v1/organizations/${GOOGLE_CLOUD_PROJECT}/instances/${INSTANCE_NAME}/attachments" | jq "select(.attachments != null) | .attachments[] | select(.environment == \"${ENV_NAME}\") | .environment" --join-output); [[ "${ATTACHMENT_DONE}" != "${ENV_NAME}" ]] || break; echo -n "."; sleep 5; done; echo "***ORG IS READY TO USE***";

    This series of commands uses the Apigee API to determine when the Apigee runtime instance has been created and the eval environment has been attached.

  2. Wait until the instance is ready.

    When the text ***ORG IS READY TO USE*** is displayed, the instance is ready. The Apigee organization (org) may have been created before you started the lab, so you might not have to wait for the instance to be created.

    If you are waiting for the org to be ready, you can learn about OAuth, the SpikeArrest policy, masking and hiding data, and opaque tokens and JWTs.

Deploy the API proxy

  1. Select the Apigee UI tab in your browser window.

  2. On the left navigation menu, select Develop > API Proxies, and then click bank-v1.

  3. Click the Develop tab.

  4. Click Deploy to eval.

    A dialog asks you to confirm the deployment.

  5. For Service Account, specify the service account's email address:

    apigee-internal-access@PROJECT.iam.gserviceaccount.com
  6. In the email address, replace PROJECT with the Google Cloud project ID.

  7. Click Deploy.

  8. Click the Overview tab, and wait for the eval deployment status to show that the proxy has been deployed.

Click Check my progress to verify the objective. Deploy the API proxy

Test the API proxy

The eval environment in the Apigee organization can be called using the hostname eval.example.com. The DNS entry for this hostname has been created within your project, and it resolves to the IP address of the Apigee runtime instance. This DNS entry has been created in a private zone, which means it is only visible on the internal network.

Cloud Shell does not reside on the internal network, so Cloud Shell commands cannot resolve this DNS entry. A virtual machine (VM) within your organization can access the private zone DNS. A virtual machine named apigeex-test-vm was automatically created. You can use this machine to call the API proxy.

  1. In Cloud Shell, open an SSH connection to your test VM:

    gcloud compute ssh apigeex-test-vm --zone=us-east4-c --force-key-file-overwrite

    If asked to authorize, click Authorize.

  2. For each question asked in the Cloud Shell, click Enter or Return to specify the default input.

    Your logged in identity is the owner of the project, so SSH to this machine is allowed.

    Your Cloud Shell session is now running inside the VM.

  3. Call the deployed bank-v1 API proxy in the eval environment:

    curl -i -k -X GET "https://eval.example.com/bank/v1/customers"

    The -k option tells curl to skip verification of the TLS certificate. For this lab, the Apigee runtime is using a self-signed certificate instead of a certificate that has been created by a trusted certificate authority (CA).

    Note: You should not use the -k option to bypass certificate verification for production use cases.

    This API attempts to retrieve a list of customers. You should now see a 401 Unauthorized response similar to this:

    HTTP/2 401 content-type: application/json www-authenticate: Bearer realm="null",error="invalid_token",error_description="oauth.v2.InvalidAccessToken: Invalid access token" x-request-id: 99263881-d0f7-4495-b886-0253f28a2e05 content-length: 101 date: Tue, 11 Jan 2022 18:59:01 GMT via: 1.1 google {"fault":{"faultstring":"Invalid access token","detail":{"errorcode":"oauth.v2.InvalidAccessToken"}}}

    This response indicates that the API proxy has blocked access to the backend service because the access token was not provided.

  4. Enter the command exit to leave the SSH session and return to Cloud Shell.

Task 5. Add an API product, developer, and application

In this task, you add an API product that will provide access to your API. You will also create a developer, and then an application which will be associated with your API product.

Create an API product

  1. Select the Apigee UI tab in your browser window.

  2. On the left navigation menu, select Publish > API Products.

  3. To create a new API product, click +Create.

  4. In the Product details pane, specify the following:

    Property Value
    Name bank-readonly
    Display Name bank (read access)
    Environment select eval
    Access select Public

    Leave Automatically approve access requests selected.

  5. In the Operations section, click +Add an Operation.

    Operations are used to specify which requests in which API proxies are allowed for an application associated with the API product.

    Note: Confirm that the button is in the "Operations" section, not the "GraphQL Operations" section.
  6. Specify the following:

    Property Value
    Source select the bank-v1 API proxy
    Path /**
    Methods select GET

    The path expression /\*\* indicates that any request matching the base path will be allowed.

    In a production environment, you might choose to add each operation that is allowed separately, rather than using this wildcard path expression.

  7. Click Save to save the operation.

  8. To save the API product, at the top of the Product Details page, click Save.

  9. Return to the Publish > API Products page.

    The API product will be listed.

Create an app developer

Before creating an app, you must create an app developer.

  1. On the left navigation menu, click Publish > Developers.

  2. To create a new app developer, click +Developer.

  3. Specify the following:

    Property Value
    First Name Joe
    Last Name Developer
    Username joe
    Email joe@example.com
  4. Click Create to create the app developer.

Create an app with bank-v1 access

  1. On the left navigation menu, click Publish > Apps.

  2. To create a new app, click +App.

  3. In the App details pane, specify the following:

    Property Value
    Name readonly-app
    Developer select joe@example.com
  4. In the Credentials pane, click Add product, click on bank (read access), and then click Add(1) to add.

  5. Click Create in the upper right corner to create the app.

    The Key and Secret are now configured for the app.

  6. Click the Show links next to Key and Secret.

    For this API, an OAuth access token is required. The key and secret will be used as the credentials for the app, allowing the app to create an OAuth access token.

Click Check my progress to verify the objective. Add the API product and create an app

Test the API

  1. In Cloud Shell, open an SSH connection to your test VM:

    gcloud compute ssh apigeex-test-vm --zone=us-east4-c --force-key-file-overwrite

    If asked to authorize, click Authorize.

    Your Cloud Shell session is now running inside the VM.

  2. To get the consumer key and secret for the application, run the following commands:

    export PROJECT_ID=$(gcloud config list --format 'value(core.project)' 2>/dev/null); echo "PROJECT_ID=${PROJECT_ID}" export CONSUMER_KEY=$(curl -s -H "Authorization: Bearer $(gcloud auth print-access-token)" -X GET "https://apigee.googleapis.com/v1/organizations/${PROJECT_ID}/developers/joe@example.com/apps/readonly-app" | jq ".credentials[0].consumerKey" --raw-output); echo "CONSUMER_KEY=${CONSUMER_KEY}" export CONSUMER_SECRET=$(curl -s -H "Authorization: Bearer $(gcloud auth print-access-token)" -X GET "https://apigee.googleapis.com/v1/organizations/${PROJECT_ID}/developers/joe@example.com/apps/readonly-app" | jq ".credentials[0].consumerSecret" --raw-output); echo "CONSUMER_SECRET=${CONSUMER_SECRET}"

    The first command reads the gcloud configuration to get the current project. The second and third commands retrieve the consumer key and secret by using the Apigee API. The request is authorized because you send an access token that has the permissions of the logged in user.

    For the OAuth client credentials grant type, the client application needs to send the consumer key and secret in an Authorization header in order to generate an access token.

  3. To generate a JWT access token, run the following command:

    export TOKEN_RESPONSE=$(curl -k -u "${CONSUMER_KEY}:${CONSUMER_SECRET}" -X POST "https://eval.example.com/token" -H "Content-Type: application/x-www-form-urlencoded" -d "grant_type=client_credentials"); echo ${TOKEN_RESPONSE} export JWT_TOKEN=$(echo ${TOKEN_RESPONSE} | jq ".access_token" --raw-output); echo "JWT_TOKEN=${JWT_TOKEN}"

    The first command calls the token endpoint, and saves the response. The token is then extracted from the JSON response and stored in JWT_TOKEN.

  4. To test a request using the JWT token, use the following command:

    curl -i -k -H "Authorization: Bearer ${JWT_TOKEN}" -X GET "https://eval.example.com/bank/v1/customers"

    The API call should now return a list of customers.

    Note: If you get a response that indicates that "Your client does not have permission to the requested URL," verify that the audience was set correctly in task 1.
  5. Enter the command exit to leave the SSH session and return to Cloud Shell.

Task 6. Add rate limiting

In this task, you add a SpikeArrest policy that will use the API product quota configuration to limit the rate of calls to the API.

The SpikeArrest policy protects your APIs and backends against traffic surges by allowing you to specify a maximum rate of traffic that will be allowed. This policy can be used to ensure that your backend is not overwhelmed by traffic that it is unable to handle.

Add a SpikeArrest policy for token generation

This SpikeArrest policy will specify an overall rate limit for traffic for calls to the /token API.

  1. Select the Apigee UI tab in your browser window.

  2. On the left navigation menu, select Develop > API Proxies, and then click bank-v1.

  3. Click the Develop tab.

  4. In the Navigator menu for the proxy, in the Proxy Endpoints section, under token, click PreFlow.

    The SpikeArrest policy should execute before the conditional flow policies.

  5. In the Flow pane, click the +Step button in the upper right above the request flow.

  6. In the Traffic Management section, select Spike Arrest, and then set the Display Name and Name to SA-LimitTokenRate.

  7. Click Add, and then click on the SA-LimitTokenRate icon.

    The SpikeArrest policy configuration is shown in the Code pane.

  8. Change the SpikeArrest policy configuration to:

    <SpikeArrest name="SA-LimitTokenRate"> <Rate>5pm</Rate> <UseEffectiveCount>false</UseEffectiveCount> </SpikeArrest>

    The configuration specifies that the maximum allowed rate of requests is 5 per minute. All traffic will be limited by this SpikeArrest policy.

    Note: 5 requests per minute is used to facilitate testing -- the SpikeArrest limits in this lab are typically too low for real-world scenarios.

    UseEffectiveCount set to false specifies that the SpikeArrest policy is using the Token Bucket algorithm. The traffic is smoothed by dividing the rate into smaller intervals. 5 requests per minute means 1 request per one-fifth of a minute, or 1 request every 12 seconds. When a second request comes in to a message processor less than 12 seconds after the previous one, it may be rejected.

Add a SpikeArrest policy for API requests

This SpikeArrest policy will specify a rate limit for traffic for calls to the /bank/v1 API. The rate will be applied per application.

  1. In the Navigator menu for the proxy, in the Proxy Endpoints section, under default, click PreFlow.

    The SpikeArrest policy should execute early in the call, but it must execute after the OAuthV2 VerifyJWTAccessToken policy to limit the rate based upon the application.

  2. In the Flow pane, click the +Step button in the upper right above the request flow.

  3. In the Traffic Management section, select Spike Arrest, and then set the Display Name and Name to SA-LimitRateByApp.

  4. Click Add, and then click on the SA-LimitRateByApp icon.

    The SpikeArrest policy configuration is shown in the Code pane.

  5. Change the SpikeArrest policy configuration to:

    <SpikeArrest name="SA-LimitRateByApp"> <Rate>5pm</Rate> <Identifier ref="client_id" /> <UseEffectiveCount>true</UseEffectiveCount> </SpikeArrest>

    Like the previous policy, the configuration specifies that the maximum allowed rate of requests is 5 per minute. However, this policy specifies an Identifier, which maintains the SpikeArrest rate separately for each client_id. The client ID is populated by the OA-VerifyToken policy, and it is unique per developer application.

    UseEffectiveCount set to true specifies that the rate count is maintained for all traffic within the region. The policy maintains a counter of requests received per period, which is a minute long when using a rate of requests per minute. The rate calculation is based on a sliding window.

    A sliding window example, with the rate of 48 and 5.

    For this example shown above, assume we are using a rate of 50 requests per minute. The counters use a period of one minute, although the counter period would be one second if the rate had been specified per second. Assume that we are 10 seconds into the current minute, represented by the arrow. The previous minute had 48 requests, and the current period had 5 requests so far.

    To allow another request, the rate would need to be less than 50 requests per minute. The calculated rate is:

    request_rate = (48 * (60-10)/60) + 6 = 46

    Since only 10 seconds out of 60 have elapsed in the current period, the other 50 seconds are calculated using the previous period's rate. 5/6 of 48 is 40. If a request were allowed, the count for the current period would be 5 + 1, or 6. The request rate calculation of 46 indicates that the request is allowed, because the request rate is less than 50 requests per minute.

  6. Click Save. If you are notified that the proxy was saved as a new revision, click OK.

  7. Click Deploy to eval, and then click Deploy.

  8. Click the Overview tab, and wait for the eval deployment status to show that the proxy has been deployed.

Click Check my progress to verify the objective. Add the SpikeArrest policy

Test rate limiting

  1. In Cloud Shell, open an SSH connection to your test VM:

    gcloud compute ssh apigeex-test-vm --zone=us-east4-c --force-key-file-overwrite

    If asked to authorize, click Authorize.

    Your Cloud Shell session is now running inside the VM.

  2. To get the consumer key and secret for the application, run the following commands:

    export PROJECT_ID=$(gcloud config list --format 'value(core.project)' 2>/dev/null); echo "PROJECT_ID=${PROJECT_ID}" export CONSUMER_KEY=$(curl -s -H "Authorization: Bearer $(gcloud auth print-access-token)" -X GET "https://apigee.googleapis.com/v1/organizations/${PROJECT_ID}/developers/joe@example.com/apps/readonly-app" | jq ".credentials[0].consumerKey" --raw-output); echo "CONSUMER_KEY=${CONSUMER_KEY}" export CONSUMER_SECRET=$(curl -s -H "Authorization: Bearer $(gcloud auth print-access-token)" -X GET "https://apigee.googleapis.com/v1/organizations/${PROJECT_ID}/developers/joe@example.com/apps/readonly-app" | jq ".credentials[0].consumerSecret" --raw-output); echo "CONSUMER_SECRET=${CONSUMER_SECRET}"
  3. Generate multiple access tokens, by repeatedly running the following command:

    curl -i -k -u "${CONSUMER_KEY}:${CONSUMER_SECRET}" -X POST "https://eval.example.com/token" -H "Content-Type: application/x-www-form-urlencoded" -d "grant_type=client_credentials"

    You should quickly receive a 429 Too Many Requests response, indicating that the rate has been exceeded. Because UseEffectiveCount is false for this policy, this smooths the traffic using the Token Bucket algorithm. You will probably get the spike arrest violation before your 5th request.

  4. To save a JWT access token, run the following command:

    export TOKEN_RESPONSE=$(curl -k -u "${CONSUMER_KEY}:${CONSUMER_SECRET}" -X POST "https://eval.example.com/token" -H "Content-Type: application/x-www-form-urlencoded" -d "grant_type=client_credentials"); echo ${TOKEN_RESPONSE} export JWT_TOKEN=$(echo ${TOKEN_RESPONSE} | jq ".access_token" --raw-output); echo "JWT_TOKEN=${JWT_TOKEN}"
  5. To test the SpikeArrest policy for API calls, repeatedly send the following command:

    curl -i -k -H "Authorization: Bearer ${JWT_TOKEN}" -X GET "https://eval.example.com/bank/v1/customers"

    UseEffectiveCount is true, so this policy uses the sliding window algorithm. You should be able to get 5 successful requests before a request is blocked.

  6. Enter the command exit to leave the SSH session and return to Cloud Shell.

Task 7. Data masking

In this task, you create a data mask to hide specific fields in a Debug session.

Start a debug session

Debug is a tool for troubleshooting and monitoring API proxies running on Apigee. The Debug tool lets you examine the details of each step during an API call.

  1. On the left navigation menu, select Develop > API Proxies, and then click bank-v1.

  2. Click the Debug tab.

  3. In the Start a debug session pane, on the environment dropdown, select the eval environment.

  4. Click Start Debug Session.

    It may take a short period of time before the debug session starts capturing requests.

    Note: If you get error messages in red boxes toward the top of the screen, with descriptions like "Error fetching debug transactions" or "List debug session transaction error," your debug session may still work correctly.

    You will make API requests and then examine the debug session.

Debug a request

  1. In Cloud Shell, open an SSH connection to your test VM:

    gcloud compute ssh apigeex-test-vm --zone=us-east4-c --force-key-file-overwrite

    If asked to authorize, click Authorize.

    Your Cloud Shell session is now running inside the VM.

  2. To get the token for the application, run the following commands:

    export PROJECT_ID=$(gcloud config list --format 'value(core.project)' 2>/dev/null); echo "PROJECT_ID=${PROJECT_ID}" export CONSUMER_KEY=$(curl -s -H "Authorization: Bearer $(gcloud auth print-access-token)" -X GET "https://apigee.googleapis.com/v1/organizations/${PROJECT_ID}/developers/joe@example.com/apps/readonly-app" | jq ".credentials[0].consumerKey" --raw-output); echo "CONSUMER_KEY=${CONSUMER_KEY}" export CONSUMER_SECRET=$(curl -s -H "Authorization: Bearer $(gcloud auth print-access-token)" -X GET "https://apigee.googleapis.com/v1/organizations/${PROJECT_ID}/developers/joe@example.com/apps/readonly-app" | jq ".credentials[0].consumerSecret" --raw-output); echo "CONSUMER_SECRET=${CONSUMER_SECRET}" export TOKEN_RESPONSE=$(curl -k -u "${CONSUMER_KEY}:${CONSUMER_SECRET}" -X POST "https://eval.example.com/token" -H "Content-Type: application/x-www-form-urlencoded" -d "grant_type=client_credentials"); echo ${TOKEN_RESPONSE} export JWT_TOKEN=$(echo ${TOKEN_RESPONSE} | jq ".access_token" --raw-output); echo "JWT_TOKEN=${JWT_TOKEN}"
  3. Make this request to the API:

    curl -i -k -H "Authorization: Bearer ${JWT_TOKEN}" -X GET "https://eval.example.com/bank/v1/customers/abe@example.org/accounts"
  4. Return to the Apigee UI page.

    The Debug page should show 2 requests: a POST (generating the token) and a GET (retrieving the accounts for a user).

  5. Click on the GET request.

    The GET request details are shown.

  6. In the View Options box, uncheck Automatically Compare Selected Phase.

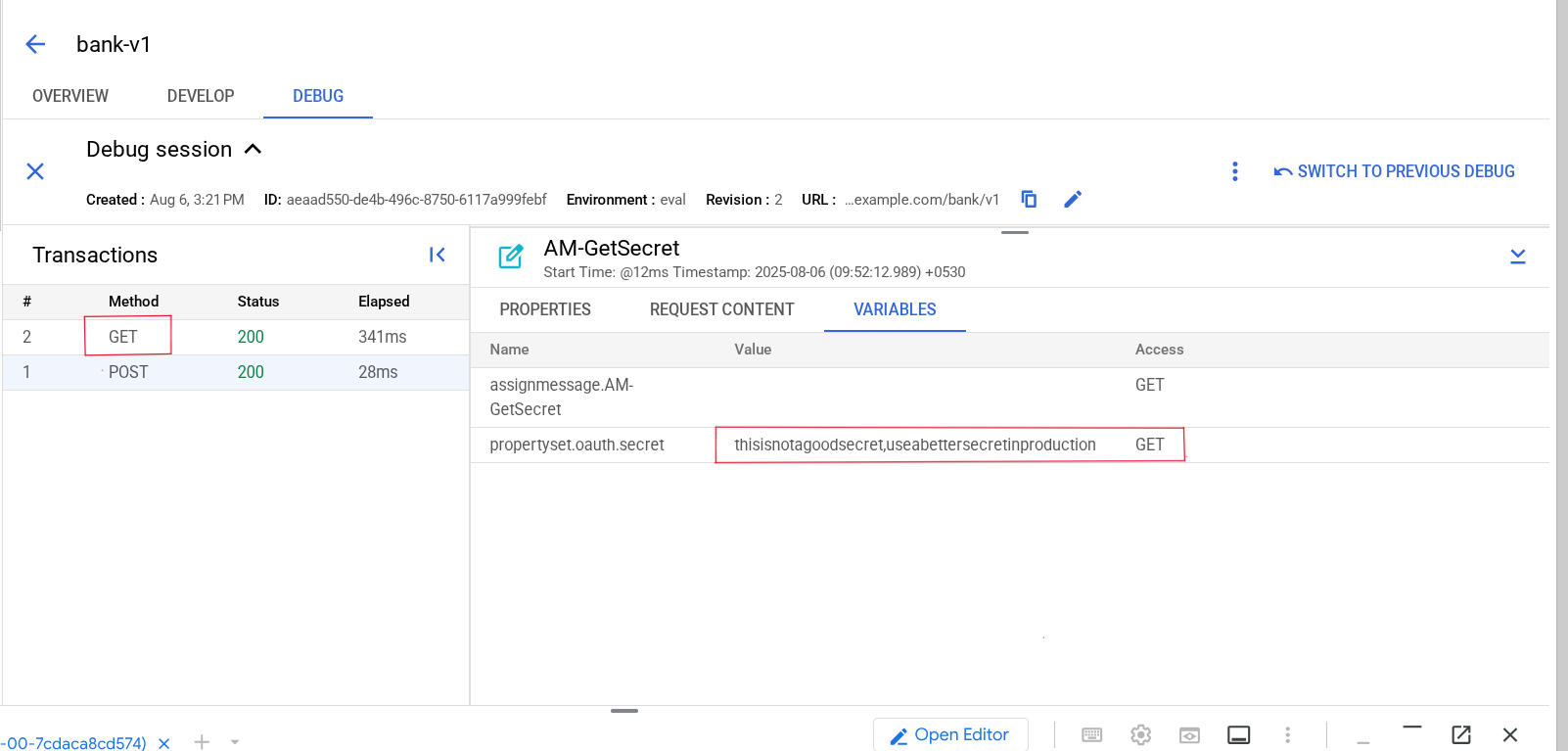

  7. Click on the first policy, which is the AssignMessage policy that copies the variable propertyset.oauth.secret into the variable private.secretkey.

    The Apigee UI page, with the AssignMessage icon and Variables Read description highlighted.

    The Phase Details do not show the private variable, because variables prefixed with "private." are hidden from the Debug session. However, the property set variable holds the same sensitive data, and it might be smart to hide it from users who are debugging traffic.

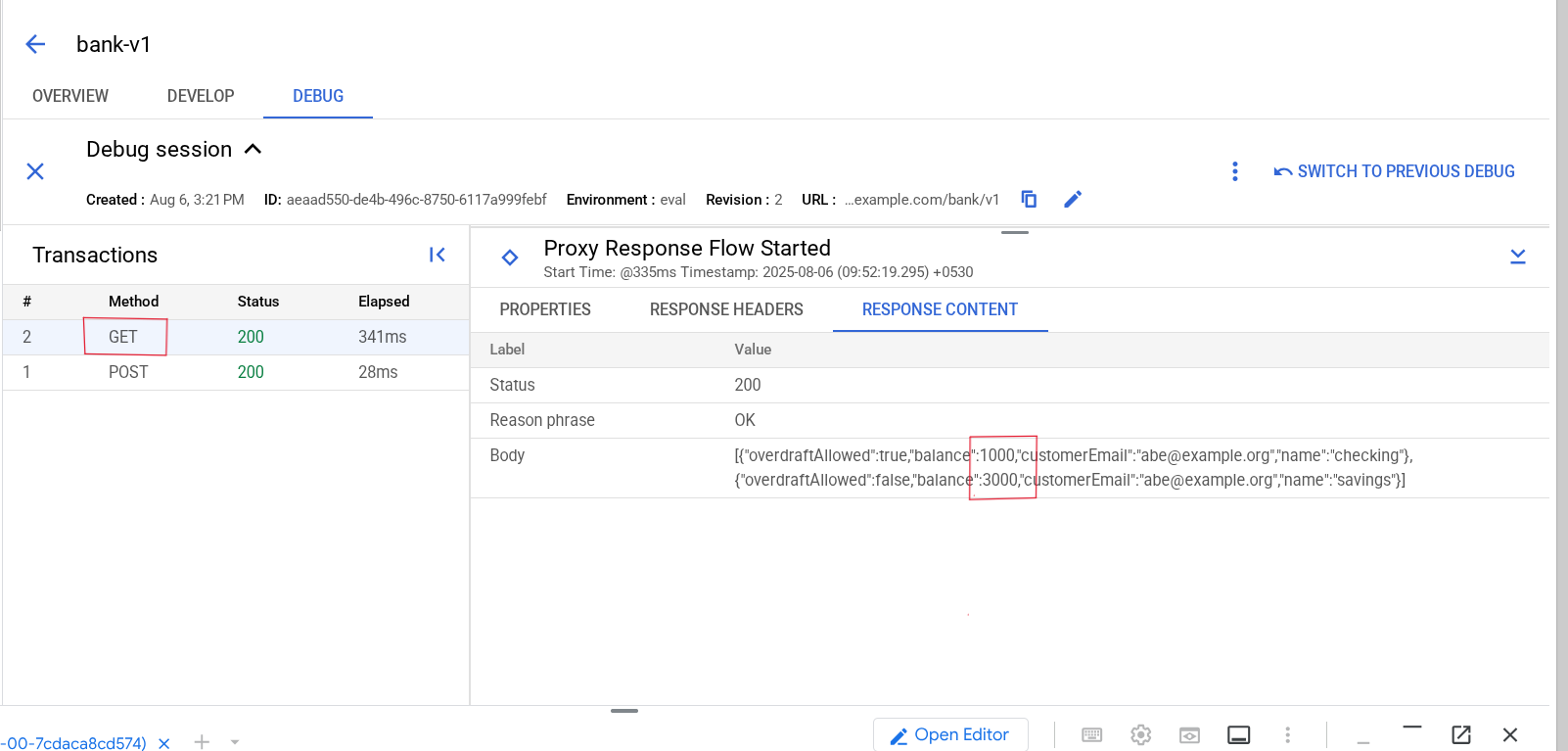

  8. Click on the response from the backend, which is indicated by the circle to the left of the factory icon.

    The highlighted backend toggle within the Transaction Map category, along with the highlighted body text in the Response Content.

    The response contains the accounts for the user, including the account balances.

Create a debug mask

  1. Open a new tab in the same browser window, and navigate to the Apigee API reference.

    The Apigee API reference provides details for the various API calls that can be used to manage Apigee, and can also be used to make calls to the Apigee API. This page shows the organization.environments API calls.

  2. Scroll to the bottom of the page, and click updateDebugmask.

    This API call will update the debug mask for the environment.

  3. In the Try this API pane, for the name request parameter, use the following:

    organizations/PROJECT/environments/eval/debugmask

    Replace PROJECT with your project ID. The name will look similar to this:

    organizations/qwiklabs-gcp-01-895f35b9370c/environments/eval/debugmask
  4. For the request body, enter the following body:

    { "responseJSONPaths": [ "$[*].balance" ], "variables": [ "propertyset.oauth.secret" ] }

    This payload will cause the propertyset.oauth.secret variable to be masked, and also mask each balance field in the array of objects in the response payload.

  5. Click Execute.

    If a pop-up box asks you to choose your account, select the student account.

  6. Click Allow to allow the page to use the student credentials.

Test the debug mask

  1. In the Apigee UI, on the left navigation menu, select Develop > API Proxies, and then click bank-v1.

  2. Click the Debug tab.

  3. In the Start a debug session pane, on the environment dropdown, select the eval environment.

  4. Click Start Debug Session.

  5. In Cloud Shell, if the SSH connection has closed, open an SSH connection to your test VM:

    gcloud compute ssh apigeex-test-vm --zone=us-east4-c --force-key-file-overwrite
  6. Get a token and make the API request again:

    export PROJECT_ID=$(gcloud config list --format 'value(core.project)' 2>/dev/null) export CONSUMER_KEY=$(curl -s -H "Authorization: Bearer $(gcloud auth print-access-token)" -X GET "https://apigee.googleapis.com/v1/organizations/${PROJECT_ID}/developers/joe@example.com/apps/readonly-app" | jq ".credentials[0].consumerKey" --raw-output) export CONSUMER_SECRET=$(curl -s -H "Authorization: Bearer $(gcloud auth print-access-token)" -X GET "https://apigee.googleapis.com/v1/organizations/${PROJECT_ID}/developers/joe@example.com/apps/readonly-app" | jq ".credentials[0].consumerSecret" --raw-output) export TOKEN_RESPONSE=$(curl -k -u "${CONSUMER_KEY}:${CONSUMER_SECRET}" -X POST "https://eval.example.com/token" -H "Content-Type: application/x-www-form-urlencoded" -d "grant_type=client_credentials") export JWT_TOKEN=$(echo ${TOKEN_RESPONSE} | jq ".access_token" --raw-output) curl -i -k -H "Authorization: Bearer ${JWT_TOKEN}" -X GET "https://eval.example.com/bank/v1/customers/abe@example.org/accounts"
  7. Return to the Debug page in the Apigee UI, and click the GET request.

  8. Click on the AssignMessage policy.

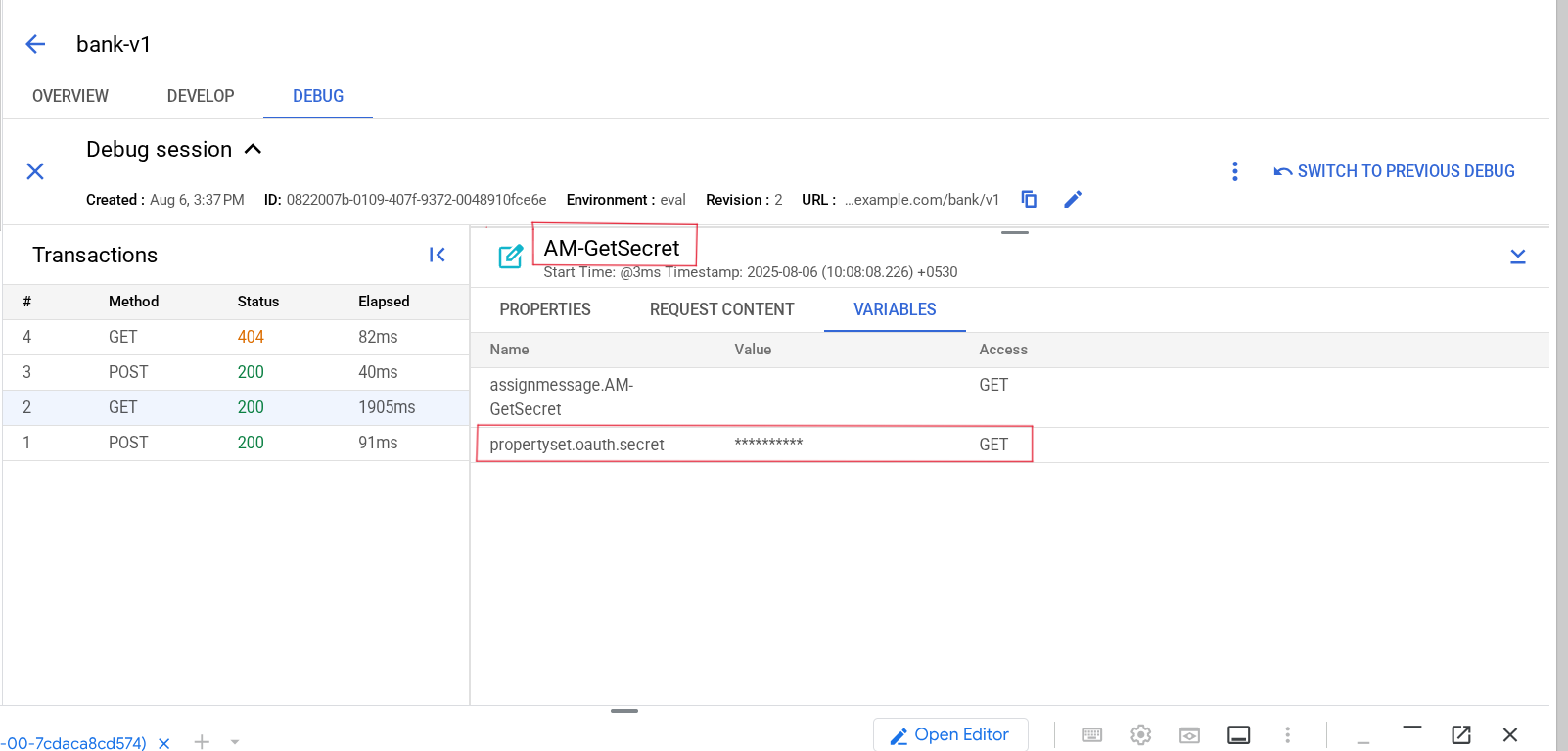

    The propertyset.oauth.secret variable is masked.

    The propertyset.oauth.secret variable in hidden mode.

  9. Click on the circle for the backend response.

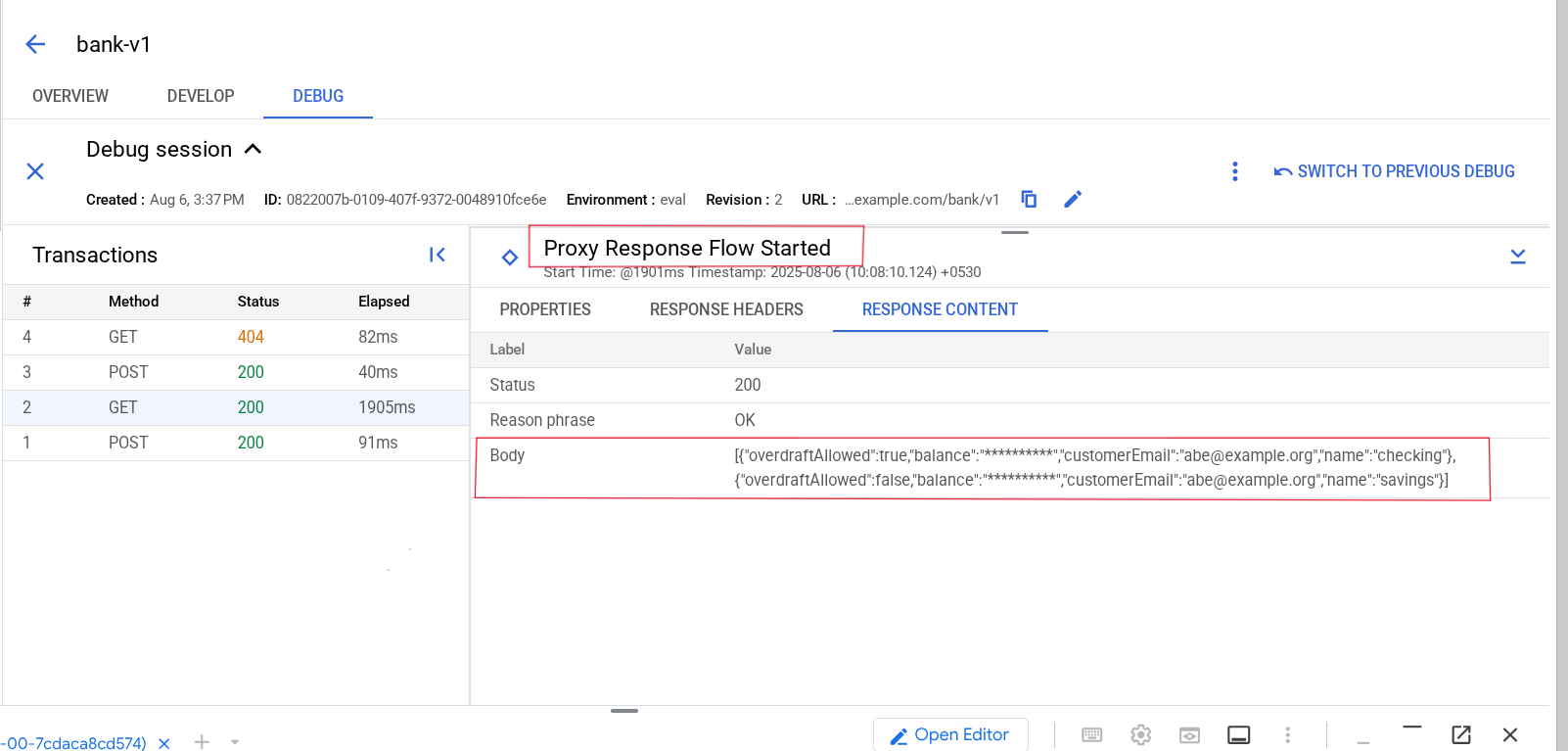

    Each balance field is masked.

    The hidden balance fields in the body text.

Task 8. Error handling

In this task, you create a default conditional flow to restrict calls to specific backend resources, and you rewrite a backend error message.

Test the API

  1. In Cloud Shell, if the SSH connection has closed, open an SSH connection to your test VM:

    gcloud compute ssh apigeex-test-vm --zone=us-east4-c --force-key-file-overwrite
  2. Enter Y to continue and press ENTER twice to leave the passphrase empty.

  3. Get a token and make a GET request to /users:

    export PROJECT_ID=$(gcloud config list --format 'value(core.project)' 2>/dev/null) export CONSUMER_KEY=$(curl -s -H "Authorization: Bearer $(gcloud auth print-access-token)" -X GET "https://apigee.googleapis.com/v1/organizations/${PROJECT_ID}/developers/joe@example.com/apps/readonly-app" | jq ".credentials[0].consumerKey" --raw-output) export CONSUMER_SECRET=$(curl -s -H "Authorization: Bearer $(gcloud auth print-access-token)" -X GET "https://apigee.googleapis.com/v1/organizations/${PROJECT_ID}/developers/joe@example.com/apps/readonly-app" | jq ".credentials[0].consumerSecret" --raw-output) export TOKEN_RESPONSE=$(curl -k -u "${CONSUMER_KEY}:${CONSUMER_SECRET}" -X POST "https://eval.example.com/token" -H "Content-Type: application/x-www-form-urlencoded" -d "grant_type=client_credentials") export JWT_TOKEN=$(echo ${TOKEN_RESPONSE} | jq ".access_token" --raw-output) curl -i -k -H "Authorization: Bearer ${JWT_TOKEN}" -X GET "https://eval.example.com/bank/v1/users"

    The backend service does not recognize the GET /users request, so it returns a 404 response which looks similar to this:

    HTTP/2 404 x-powered-by: Express content-security-policy: default-src 'none' x-content-type-options: nosniff content-type: text/html; charset=utf-8 x-cloud-trace-context: 7e96528757cc5053ba4fc8853037b02d;o=1 date: Wed, 19 Jan 2022 01:49:53 GMT server: Google Frontend content-length: 144 x-request-id: 2d8c8002-3152-4fc2-a60b-1729dd5483d8 via: 1.1 google <!DOCTYPE html> <html lang="en"> <head> <meta charset="utf-8"> <title>Error</title> </head> <body> <pre>Cannot GET /users</pre> </body> </html>

    The response returns an HTML payload, which does not match the format of the RF-InvalidTokenRequest payload. In addition, a backend response may contain sensitive data. For these reasons, it is a best practice to rewrite error responses from backend services.

Rewrite a 404 Not Found error

Fault rules can be used to detect errors and rewrite error messages.

A RaiseFault policy will be used to set the new response.

  1. Select the Apigee UI tab in your browser window.

  2. On the left navigation menu, select Develop > API Proxies, and then click bank-v1.

  3. Click the Develop tab.

  4. In the Navigator menu for the proxy, next to Policies, click +.

  5. In the Mediation section, select Raise Fault, and then set the Display Name and Name to RF-404NotFound.

  6. Click Add.

  7. Change the RaiseFault policy configuration to:

    <RaiseFault name="RF-404NotFound"> <FaultResponse> <Remove> <Headers/> </Remove> <Set> <StatusCode>404</StatusCode> <ReasonPhrase>Not Found</ReasonPhrase> <Headers> <Header name="FaultName">{fault.name}</Header> </Headers> <Payload contentType="application/json">{ "error": "{request.verb} {proxy.pathsuffix} not found" }</Payload> </Set> </FaultResponse> <AssignTo createNew="true" type="response"/> <IgnoreUnresolvedVariables>true</IgnoreUnresolvedVariables> </RaiseFault>

    The Remove section first removes all headers that might have come from the backend service, then the Set section creates the response. The FaultName header has been added to show the value of the fault.name variable when the fault is raised. The fault.name variable specifies the name of the fault.

Create the FaultRule

  1. In the Navigator menu for the proxy, in the Target Endpoints section, click default.

    The default target endpoint contains the backend target call that is returning the 404 response. A 404 is treated as a failure code. The endpoint will raise a fault, and FaultRules specified in the target endpoint can be used to rewrite the API response.

  2. In the TargetEndpoint configuration, directly under the TargetEndpoint tag, add the following FaultRules section:

    <FaultRules> <FaultRule name="404"> <Step> <Name>RF-404NotFound</Name> </Step> <Condition>response.status.code == 404</Condition> </FaultRule> </FaultRules>

    The beginning of the TargetEndpoint will now look similar to this:

    <TargetEndpoint name="default"> <FaultRules> <FaultRule name="404"> <Step> <Name>RF-404NotFound</Name> </Step> <Condition>response.status.code == 404</Condition> </FaultRule> </FaultRules>
  3. Click Save. If you are notified that the proxy was saved as a new revision, click OK.

  4. Click Deploy to eval, and then click Deploy.

  5. Click the Overview tab, and wait for the eval deployment status to show that the proxy has been deployed.

Test the endpoint response fault

  1. In Cloud Shell, if the SSH connection has closed, open an SSH connection to your test VM:

    gcloud compute ssh apigeex-test-vm --zone=us-east4-c --force-key-file-overwrite
  2. Get a token and make a GET request to /users:

    export PROJECT_ID=$(gcloud config list --format 'value(core.project)' 2>/dev/null) export CONSUMER_KEY=$(curl -s -H "Authorization: Bearer $(gcloud auth print-access-token)" -X GET "https://apigee.googleapis.com/v1/organizations/${PROJECT_ID}/developers/joe@example.com/apps/readonly-app" | jq ".credentials[0].consumerKey" --raw-output) export CONSUMER_SECRET=$(curl -s -H "Authorization: Bearer $(gcloud auth print-access-token)" -X GET "https://apigee.googleapis.com/v1/organizations/${PROJECT_ID}/developers/joe@example.com/apps/readonly-app" | jq ".credentials[0].consumerSecret" --raw-output) export TOKEN_RESPONSE=$(curl -k -u "${CONSUMER_KEY}:${CONSUMER_SECRET}" -X POST "https://eval.example.com/token" -H "Content-Type: application/x-www-form-urlencoded" -d "grant_type=client_credentials") export JWT_TOKEN=$(echo ${TOKEN_RESPONSE} | jq ".access_token" --raw-output) curl -i -k -H "Authorization: Bearer ${JWT_TOKEN}" -X GET "https://eval.example.com/bank/v1/users"

    The response has been rewritten, and now looks similar to this:

    HTTP/2 404 faultname: ErrorResponseCode content-type: application/json x-request-id: 8d9db301-b3c7-4957-816d-93e796306dfb content-length: 39 date: Tue, 18 Jan 2022 06:42:23 GMT via: 1.1 google { "error": "GET /users not found" }

    The response is now using JSON. Note that the faultname header has the value ErrorResponseCode, which is the value of the fault.name variable specified when the target returns a failure code. As soon as the 404 response came back from the backend service, a fault was raised and the target endpoint fault rules were evaluated. The 404 fault rule then rewrote the response.

Add a 404 conditional flow

Instead of counting on the backend to return a response when an unexpected request is sent, a new conditional flow can be added at the end of the proxy endpoint conditional flows to raise a fault when none of the other conditional flows match their conditions. This guarantees that only the operations listed in the conditional flows will pass through to the backend. This pattern allows you to allow access to only a subset of the backend service resources.

  1. In the Navigator menu for the proxy, in the Proxy Endpoints section, next to default, click +.

  2. For the new conditional flow, specify the following values:

    Property Value
    Flow Name 404NotFound
    Condition Type select Custom
    Condition DELETETHIS
  3. Click Add.

  4. In the 404NotFound flow, remove the following line:

    <Condition>DELETETHIS</Condition>

    If all of the previous conditional flow conditions do not match, the 404NotFound flow will execute.

  5. In the Navigator menu for the proxy, in the Proxy Endpoints section, under default, click 404NotFound.

  6. In the Flow pane, click the +Step button in the upper right above the request flow.

  7. For Policy Instance, select Existing, and then click RF-404NotFound.

  8. Click Add.

  9. Click Save. If you are notified that the proxy was saved as a new revision, click OK.

  10. Click Deploy to eval, and then click Deploy.

  11. Click the Overview tab, and wait for the eval deployment status to show that the proxy has been deployed.

Click Check my progress to verify the objective. Add error handling

Test the 404 conditional flow

  1. In Cloud Shell, if the SSH connection has closed, open an SSH connection to your test VM:

    gcloud compute ssh apigeex-test-vm --zone=us-east4-c --force-key-file-overwrite
  2. Get a token and make a GET request to /users:

    export PROJECT_ID=$(gcloud config list --format 'value(core.project)' 2>/dev/null) export CONSUMER_KEY=$(curl -s -H "Authorization: Bearer $(gcloud auth print-access-token)" -X GET "https://apigee.googleapis.com/v1/organizations/${PROJECT_ID}/developers/joe@example.com/apps/readonly-app" | jq ".credentials[0].consumerKey" --raw-output) export CONSUMER_SECRET=$(curl -s -H "Authorization: Bearer $(gcloud auth print-access-token)" -X GET "https://apigee.googleapis.com/v1/organizations/${PROJECT_ID}/developers/joe@example.com/apps/readonly-app" | jq ".credentials[0].consumerSecret" --raw-output) export TOKEN_RESPONSE=$(curl -k -u "${CONSUMER_KEY}:${CONSUMER_SECRET}" -X POST "https://eval.example.com/token" -H "Content-Type: application/x-www-form-urlencoded" -d "grant_type=client_credentials") export JWT_TOKEN=$(echo ${TOKEN_RESPONSE} | jq ".access_token" --raw-output) curl -i -k -H "Authorization: Bearer ${JWT_TOKEN}" -X GET "https://eval.example.com/bank/v1/users"

    The response has been rewritten, and now looks similar to this:

    HTTP/2 404 faultname: RaiseFault content-type: application/json x-request-id: d6bbd48f-65bd-4551-9236-636fad03a609 content-length: 39 date: Tue, 18 Jan 2022 07:07:58 GMT via: 1.1 google alt-svc: h3=":443"; ma=2592000,h3-29=":443"; ma=2592000 { "error": "GET /users not found" }

    The faultname header now has the value RaiseFault, which is the fault.name value used when a RaiseFault policy caused the fault to be raised. The RaiseFault policy in the 404NotFound conditional flow generated the response.

Congratulations!

In this lab, you secured an API by requiring a JWT OAuth token. You limited traffic by adding SpikeArrest policies. You used private variables and data masking to hide sensitive data in Debug sessions. You also rewrote a backend error message and used a 404 conditional flow to restrict calls to the backend to specific resources.

Finish your quest

This self-paced lab is part of the Develop and Secure APIs with Apigee X quest. A quest is a series of related labs that form a learning path. Completing this quest earns you a badge to recognize your achievement. You can make your badge or badges public and link to them in your online resume or social media account. Enroll in this quest or any quest that contains this lab and get immediate completion credit. See the Google Cloud Skills Boost catalog to see all available quests.

Take your next lab

Continue your quest with the next lab in the series, Using Google Cloud Services with Apigee X.

Next steps / learn more

Manual last updated: August 24, 2022

Lab last tested May 26, 2022

Copyright 2022 Google LLC All rights reserved. Google and the Google logo are trademarks of Google LLC. All other company and product names may be trademarks of the respective companies with which they are associated.
