Overview

BigQuery Machine Learning (BigQuery ML) enables users to create and execute machine learning models in BigQuery using SQL queries. The goal is to democratise machine learning by enabling SQL practitioners to build models using their existing tools and to increase development speed by eliminating the need for data movement.

There is an ecommerce dataset that has millions of Google Analytics records for the Google Merchandise Store loaded into BigQuery. In this lab you will use this data to create a model that predicts whether a visitor will make a transaction.

What you'll learn

How to create, evaluate and use machine learning models in BigQuery

What you'll need

• A Browser, such as Chrome or Firefox
• Basic knowledge of SQL or BigQuery

Setup and requirements

For each lab, you get a new Google Cloud project and set of resources for a fixed time at no cost.

1. Sign in to Qwiklabs using an incognito window.

2. Note the lab's access time (for example, 1:15:00), and make sure you can finish within that time.
   There is no pause feature. You can restart if needed, but you have to start at the beginning.

3. When ready, click Start lab.

4. Note your lab credentials (Username and Password). You will use them to sign in to the Google Cloud Console.

5. Click Open Google Console.

6. Click Use another account and copy/paste credentials for this lab into the prompts.
   If you use other credentials, you'll receive errors or incur charges.

7. Accept the terms and skip the recovery resource page.

Open BigQuery Console

1. In the Google Cloud Console, select Navigation menu > BigQuery.

The Welcome to BigQuery in the Cloud Console message box opens. This message box provides a link to the quickstart guide and lists UI updates.

2. Click Done.

Task 1. Explore the data

In this task, you explore and prepare a public dataset for a machine learning model. You execute a SQL query to inspect a sample of Google Analytics data and save the result as your training_data.

The data we will use in this lab sits in the bigquery-public-data project, that is available to all. Let's take a look at a sample of this data.

1. To verify that the bqml_lab dataset is present, click the arrow to the left of your Project_ID which starts as qwiklabs-gcp-00-XXXXXXXXXX. The bqml_lab dataset should be listed underneath.

2. Click to create a new SQL Query. A new tab is displayed in BigQuery Studio.

Explain the query

1. Add the query to Untitled query box.

SELECT IF(totals.transactions IS NULL, 0, 1) AS label, IFNULL(device.operatingSystem, "") AS os, device.isMobile AS is_mobile, IFNULL(geoNetwork.country, "") AS country, IFNULL(totals.pageviews, 0) AS pageviews FROM `bigquery-public-data.google_analytics_sample.ga_sessions_*` WHERE _TABLE_SUFFIX BETWEEN '20160801' AND '20170631' LIMIT 10000;

2. Select the query.

3. Click Gemini Code Assist button immediately to the left of the query.

4. Click Explain this query.

5. You see the dialog for Gemini open to the right of BigQuery Studio.

6. The Welcome to Gemini in Cloud Console message is displayed in the Gemini pane. Click Start Chatting. You can see an explanation for the query like the one below in the chat window.

Note: If no explanation appears in the chat window, please click Explain this query again after selecting the entire query.

7. Review the explanation.

Note: As a generative tool, the response from Gemini Code Assist will differ slightly each time, but the key points should be similar.

8. Gemini returns a response similar to the following:

   This GoogleSQL query is designed to extract a sample of Google Analytics session data and transform it into a format suitable for machine learning or analytical purposes.

9. Click Run.

10. Click Save and then select Save view.

11. In the Save view dialog box, click Dataset and select bqml_lab.

12. For Table, type training_data and then click Save.

Click Check my progress to verify the objective. Create a view table.

Task 2. Create a model

In this task, you generate a new machine learning model to predict visitor transactions using a SQL query natural language prompt in BigQuery. You specify a logistic regression model type and train it using the existing training_data.

1. Click to create a new SQL Query. A new tab is displayed in BigQuery Studio.

2. Click to access the SQL generation tool. You see the Generate SQL with Gemini dialog appear. You can enter a natural language prompt in this window to generate a new SQL statement.

3. Copy and paste the prompt below

   Create a model name sample_model, type logistic_reg to predict whether a visitor will make a transaction using the training_data view table.

4. Click Generate. Gemini suggests a SQL query similar to the one below.

   CREATE MODEL `{{{project_0.project_id|set at lab start}}}`.`bqml_lab`.`sample_model` OPTIONS ( model_type = 'LOGISTIC_REG', input_label_cols = ['label']) AS SELECT label, os, is_mobile, country, pageviews FROM `{{{project_0.project_id|set at lab start}}}`.`bqml_lab`.`training_data`;

Note: If the generated query results in the error message, consider adjusting the query syntax or replacing the entire query to match the example provided.

5. Click Insert.

6. Click Run.

In this case, bqml_lab is the name of the dataset, sample_model is the name of the model, training_data is the transactions data we looked at in the previous task. The model type specified is binary logistic regression.

Running the CREATE MODEL command creates a Query Job that will run asynchronously so you can, for example, close or refresh the BigQuery UI window.

Click Check my progress to verify the objective. Create a model.

[Optional] Model information & training statistics

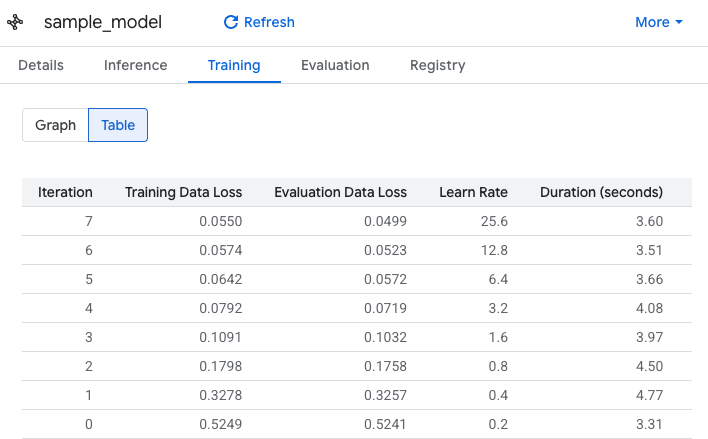

If interested, you can get information about the model by clicking on bqml_lab dataset on the left-hand menu and then click the sample_model dataset in the UI. Under Details, you should find some basic model info and training options used to produce the model. Under Training, you should see a table similar to this:

Task 3. Evaluate the Model

In this task, you evaluate the performance of your machine learning model by using the ML.EVALUATE function. This provides key metrics that show how accurately the model predicts visitor transactions.

1. Click to create a new SQL Query. A new tab is displayed in BigQuery Studio.

2. Click to access the SQL generation tool. You see the Generate SQL with Gemini dialog appear. You can enter a natural language prompt in this window to generate a new SQL statement.

3. Copy and paste the prompt below.

   Write a query to evaluate the performance of the model `bqml_lab.sample_model` using the `ml.EVALUATE` function.

4. Click Generate. Gemini suggests a SQL query similar to the one below.

   SELECT * FROM ML.EVALUATE( MODEL `{{{project_0.project_id|set at lab start}}}`.`bqml_lab`.`sample_model`, TABLE `{{{project_0.project_id|set at lab start}}}`.`bqml_lab`.`training_data`);

Note: If the generated query results in the error message, consider adjusting the query syntax or replacing the entire query to match the example provided.

5. Click Insert.

6. Click Run.

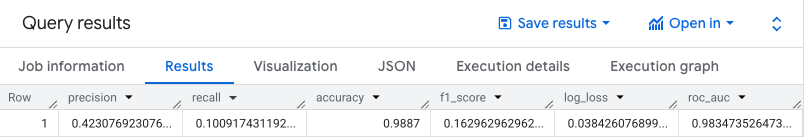

You should see a table similar to this:

Task 4. Use the model

In this task, you learn to use BigQuery's ML.PREDICT function to make predictions, but first, you must debug a query that uses an incorrect function. You will use Gemini to identify and correct the syntax error before running the query to predict the top 10 purchasing countries.

1. Click to create a new SQL Query and run the below query:

SELECT IF(totals.transactions IS NULL, 0, 1) AS label, IFNULL(device.operatingSystem, "") AS os, device.isMobile AS is_mobile, IFNULL(geoNetwork.country, "") AS country, IFNULL(totals.pageviews, 0) AS pageviews, fullVisitorId FROM `bigquery-public-data.google_analytics_sample.ga_sessions_*` WHERE _TABLE_SUFFIX BETWEEN '20170701' AND '20170801';

You'll realize the SELECT and FROM portions of the query is similar to that used to generate training data. There is the additional fullVisitorId column which you will use for predicting transactions by individual user.The WHERE portion reflects the change in time frame (July 1 to August 1 2017).

2. Let's save this July data so we can use it in the next steps to make predictions using our model.

3. Click Save and then select Save view.

4. In the Save view dialog box, click Dataset and select bqml_lab.

5. For Table, type july_data and then click Save.

Predict purchases per country/region

With this query you will try to predict the number of transactions made by visitors of each country or region, sort the results, and select the top 10 by purchases:

1. Click the to create a new SQL query.

2. Copy and paste the query below.

SELECT country, TOTAL(predicted_label) as total_predicted_purchases FROM ml.PREDICT(MODEL `bqml_lab.sample_model`, ( SELECT * FROM `bqml_lab.july_data`)) GROUP BY country ORDER BY total_predicted_purchases DESC LIMIT 10;

3. Click Run. You confirm the query fails to run and you get the following error:

   Function not found: TOTAL at [3:3]

Debug the code with Gemini and the error

1. Click the Gemini chat window in BigQuery.

2. In the chat window, copy and paste the following question.

   Why am I getting "Function not found: TOTAL at [3:3]" when I run this query?

3. Press <SHIFT><ENTER>, or <SHIFT><return> on Mac, to create a new line in the chat window.

4. Select the query and copy it.

5. Paste it immediately after the question you asked.

6. Press <SHIFT><ENTER>, or <SHIFT><return> on Mac, to create a new line in the chat window.

7. Copy and paste the following sentence below:

   Please suggest new code to resolve any issues.

8. Click Send prompt. You get a response from Gemini.

9. Review the suggestions in the response. Based upon these suggestions, indicates that TOTAL() is not a valid SQL aggregation function in BigQuery.

Within the suggestions, a refined query with a potential solution similar to the one below is provided:

SELECT country, SUM(predicted_label) as total_predicted_purchases FROM ml.PREDICT(MODEL `bqml_lab.sample_model`, ( SELECT * FROM `bqml_lab.july_data`)) GROUP BY country ORDER BY total_predicted_purchases DESC LIMIT 10;

10. Copy the refined query.

11. Click to create a new SQL query.

12. Paste the refined query in the new untitled query tab.

13. Click Run.

In this query, you're using ml.PREDICT and the BigQuery ML portion of the query is wrapped with standard SQL commands. For this lab you''re interested in the country and the sum of purchases for each country, so that's why SELECT, GROUP BY and ORDER BY. LIMIT is used to ensure you only get the top 10 results.

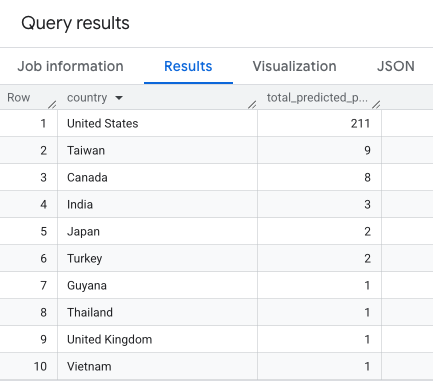

You should see a table similar to this:

Click Check my progress to verify the objective. Fix the error and retrieve the top 10 purchases for each country.

Challenge

Predict purchases per user

This time you will try to predict the number of transactions each visitor makes, sort the results, and select the top 10 visitors by transactions.

End your lab

When you have completed your lab, click End Lab. Google Cloud Skills Boost removes the resources you’ve used and cleans the account for you.

You will be given an opportunity to rate the lab experience. Select the applicable number of stars, type a comment, and then click Submit.
