Cloud Armor Preconfigured WAF Rules

1 hour 1 Credit

GSP879

Overview

Google Cloud Armor is Google's enterprise edge network security solution providing DDOS protection, WAF rule enforcement, and adaptive manageability at scale.

Cloud Armor has extended the preconfigured WAF rule sets to mitigate against the OWASP Top 10 web application security vulnerabilities. The rule sets are based on the OWASP Modsecurity core rule set version 3.0.2 to protect against some of the most common web application security risks including local file inclusion (lfi), remote file inclusion (rfi), remote code execution (rce), and many more.

In this lab, you learn how to mitigate some of the common vulnerabilities by using Google Cloud Armor WAF rules.

What you'll learn

In this lab, you learn how to:

  • Set up an Instance Group and a Global Load Balancer to support a service
  • Configure Cloud Armor security policies with preconfigured WAF rules to protect against lfi, rce, scanners, protocol attacks, and session fixation
  • Validate that Cloud Armor mitigated an attack by observing logs

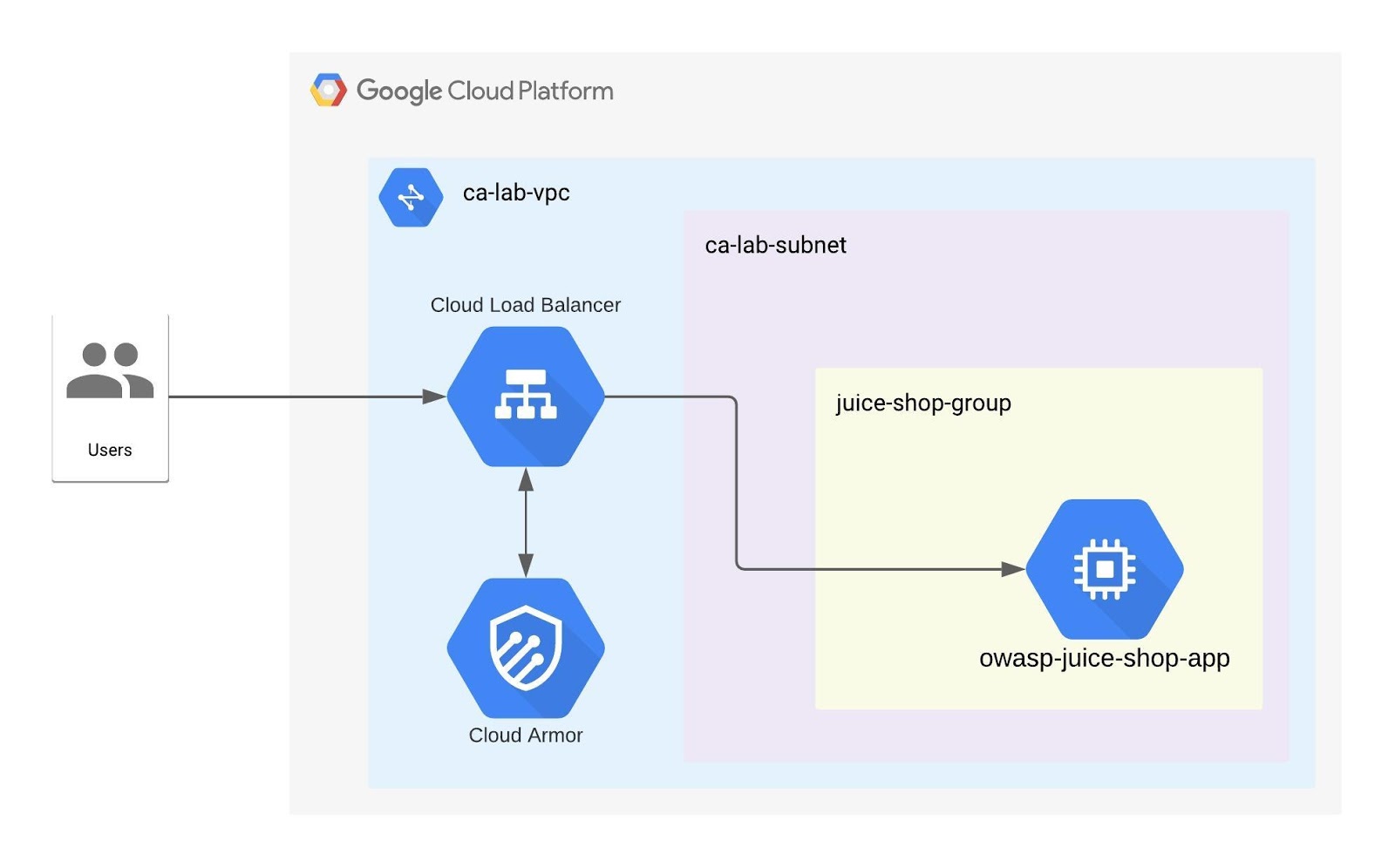

Cloud Armor WAF rules topology

The OWASP Juice Shop application is useful for security training and awareness, because it contains instances of each of the OWASP Top 10 security vulnerabilities—by design. An attacker can exploit it for testing purposes. In this lab, you use it to demonstrate some application attacks followed by protecting the application with Cloud Armor WAF rules. The application is fronted by a Google Cloud Load Balancer, onto which the Cloud Armor security policy and rules are be applied. It is served on the public internet thus reachable from almost anywhere and protected using Cloud Armor and VPC firewall rules.

Setup and requirements

Before you click the Start Lab button

Read these instructions. Labs are timed and you cannot pause them. The timer, which starts when you click Start Lab, shows how long Google Cloud resources will be made available to you.

This hands-on lab lets you do the lab activities yourself in a real cloud environment, not in a simulation or demo environment. It does so by giving you new, temporary credentials that you use to sign in and access Google Cloud for the duration of the lab.

To complete this lab, you need:

  • Access to a standard internet browser (Chrome browser recommended).
Note: Use an Incognito or private browser window to run this lab. This prevents any conflicts between your personal account and the Student account, which may cause extra charges incurred to your personal account.
  • Time to complete the lab---remember, once you start, you cannot pause a lab.
Note: If you already have your own personal Google Cloud account or project, do not use it for this lab to avoid extra charges to your account.

How to start your lab and sign in to the Google Cloud Console

  1. Click the Start Lab button. If you need to pay for the lab, a pop-up opens for you to select your payment method. On the left is the Lab Details panel with the following:

    • The Open Google Console button
    • Time remaining
    • The temporary credentials that you must use for this lab
    • Other information, if needed, to step through this lab
  2. Click Open Google Console. The lab spins up resources, and then opens another tab that shows the Sign in page.

    Tip: Arrange the tabs in separate windows, side-by-side.

    Note: If you see the Choose an account dialog, click Use Another Account.
  3. If necessary, copy the Username from the Lab Details panel and paste it into the Sign in dialog. Click Next.

  4. Copy the Password from the Lab Details panel and paste it into the Welcome dialog. Click Next.

    Important: You must use the credentials from the left panel. Do not use your Google Cloud Skills Boost credentials. Note: Using your own Google Cloud account for this lab may incur extra charges.
  5. Click through the subsequent pages:

    • Accept the terms and conditions.
    • Do not add recovery options or two-factor authentication (because this is a temporary account).
    • Do not sign up for free trials.

After a few moments, the Cloud Console opens in this tab.

Note: You can view the menu with a list of Google Cloud Products and Services by clicking the Navigation menu at the top-left. Navigation menu icon

Activate Cloud Shell

Cloud Shell is a virtual machine that is loaded with development tools. It offers a persistent 5GB home directory and runs on the Google Cloud. Cloud Shell provides command-line access to your Google Cloud resources.

  1. Click Activate Cloud Shell Activate Cloud Shell icon at the top of the Google Cloud console.

When you are connected, you are already authenticated, and the project is set to your PROJECT_ID. The output contains a line that declares the PROJECT_ID for this session:

Your Cloud Platform project in this session is set to YOUR_PROJECT_ID

gcloud is the command-line tool for Google Cloud. It comes pre-installed on Cloud Shell and supports tab-completion.

  1. (Optional) You can list the active account name with this command:

gcloud auth list
  1. Click Authorize.

  2. Your output should now look like this:

Output:

ACTIVE: * ACCOUNT: student-01-xxxxxxxxxxxx@qwiklabs.net To set the active account, run: $ gcloud config set account `ACCOUNT`
  1. (Optional) You can list the project ID with this command:

gcloud config list project

Output:

[core] project = <project_ID>

Example output:

[core] project = qwiklabs-gcp-44776a13dea667a6 Note: For full documentation of gcloud, in Google Cloud, refer to the gcloud CLI overview guide.

Before you begin

  • In Cloud Shell, set up your project ID:

gcloud config list project export PROJECT_ID=$(gcloud config get-value project) echo $PROJECT_ID gcloud config set project $PROJECT_ID

Task 1. Create the VPC network

  • In Cloud Shell, enter the following command to create a VPC network:
gcloud compute networks create {{{my_primary_project.startup_script.network_name| Network Name}}} --subnet-mode custom Created NAME SUBNET_MODE BGP_ROUTING_MODE {{{my_primary_project.startup_script.network_name| Network Name}}} CUSTOM REGIONAL

Create a subnet

  • In Cloud Shell, enter the following command to create a subnet:
gcloud compute networks subnets create {{{my_primary_project.startup_script.subnet_name| Subnet Name}}} \ --network {{{my_primary_project.startup_script.network_name| Network Name}}} --range 10.0.0.0/24 --region {{{my_primary_project.startup_script.region_1| Region}}} Created NAME REGION NETWORK RANGE {{{my_primary_project.startup_script.subnet_name| Subnet Name}}} {{{my_primary_project.startup_script.region_1| Region}}} {{{my_primary_project.startup_script.network_name| Network Name}}} 10.0.0.0/24

Create VPC firewall rules

After creating the VPC and subnet, set up a few firewall rules.

  • The first firewall rule named allow-js-site allows all IPs to access the external IP of the test application's website on port 3000.

  • The second firewall rule named allow-health-check allows health-checks from source IP of the load balancers.

  1. In Cloud Shell, enter the following command to create a firewall rule to allow all IPs to access the application:
gcloud compute firewall-rules create {{{my_primary_project.startup_script.firewall_rule| Firewall Name}}} --allow tcp:3000 --network {{{my_primary_project.startup_script.network_name| Network Name}}}

Output:

Creating firewall...done. NAME NETWORK DIRECTION PRIORITY ALLOW DENY DISABLED {{{my_primary_project.startup_script.firewall_rule| Firewall Name}}} {{{my_primary_project.startup_script.network_name| Network Name}}} INGRESS 1000 tcp:3000 False
  1. In Cloud Shell, enter the following command to create firewall rule to allow health-checks from the Google health-check ranges:
gcloud compute firewall-rules create {{{my_primary_project.startup_script.firewall_rule1| Firewall Name1}}} \ --network={{{my_primary_project.startup_script.network_name| Network Name}}} \ --action=allow \ --direction=ingress \ --source-ranges=130.211.0.0/22,35.191.0.0/16 \ --target-tags=allow-healthcheck \ --rules=tcp

Output:

Creating firewall...done. NAME NETWORK DIRECTION PRIORITY ALLOW DENY DISABLED {{{my_primary_project.startup_script.firewall_rule1| Firewall_Name1}}} {{{my_primary_project.startup_script.network_name| Network Name}}} INGRESS 1000 tcp False

Click Check my progress to verify the objective. Create the VPC network

Task 2. Set up the test application

Create the test application, in this case, the OWASP Juice Shop web server. When you create the compute instance, you use a container image to ensure the server has the appropriate services. You deploy this server in the and has a network tag that allows health checks.

Create the OWASP Juice Shop application

  • Use the open source well-known OWASP Juice Shop application to serve as the vulnerable application. You can also use this application to do OWASP security challenges through the OWASP website.
gcloud compute instances create-with-container {{{my_primary_project.startup_script.vm_instance| vm_instance}}} --container-image bkimminich/juice-shop \ --network {{{my_primary_project.startup_script.network_name| Network Name}}} \ --subnet {{{my_primary_project.startup_script.subnet_name| Subnet Name}}} \ --private-network-ip=10.0.0.3 \ --machine-type n1-standard-2 \ --zone {{{my_primary_project.startup_script.zone| Zone}}} \ --tags allow-healthcheck

Output:

NAME ZONE MACHINE_TYPE PREEMPTIBLE {{{my_primary_project.startup_script.vm_instance| vm_instance}}} {{{my_primary_project.startup_script.zone| Zone}}} n1-standard-2 INTERNAL_IP EXTERNAL_IP STATUS 10.0.0.3 <public IP> RUNNING

Click Check my progress to verify the objective. Set up the test application

Set up the Cloud load balancer component: instance group

  1. In Cloud Shell, enter the following command to create the unmanaged instance group:
gcloud compute instance-groups unmanaged create {{{my_primary_project.startup_script.vm_instance_group| Instance Group}}} \ --zone={{{my_primary_project.startup_script.zone| Zone}}}

Output:

NAME LOCATION SCOPE NETWORK MANAGED INSTANCES {{{my_primary_project.startup_script.vm_instance_group| Instance Group}}} {{{my_primary_project.startup_script.zone| Zone}}} zone 0
  1. Add the Juice Shop Google Compute Engine (GCE) instance to the unmanaged instance group:
gcloud compute instance-groups unmanaged add-instances {{{my_primary_project.startup_script.vm_instance_group| Instance Group}}} \ --zone={{{my_primary_project.startup_script.zone| Zone}}} \ --instances={{{my_primary_project.startup_script.vm_instance| VM Instance}}}

Output:

Updated [https://www.googleapis.com/compute/v1/projects//zones/{{{my_primary_project.startup_script.zone| Zone}}}/instanceGroups/{{{my_primary_project.startup_script.vm_instance_group| Instance_Group}}}].
  1. Set the named port to that of the Juice Shop application:
gcloud compute instance-groups unmanaged set-named-ports \ {{{my_primary_project.startup_script.vm_instance_group| Instance Group}}} \ --named-ports=http:3000 \ --zone={{{my_primary_project.startup_script.zone| Zone}}}

Output:

Updated [https://www.googleapis.com/compute/v1/projects//zones/{{{my_primary_project.startup_script.zone| Zone}}}/instanceGroups/{{{my_primary_project.startup_script.vm_instance_group| Instance Group}}}].

Click Check my progress to verify the objective. Set up the Cloud load balancer component- instance group

Set up the Cloud load balancer component: health check

Now that you've created the unmanaged instance group, create a health check, backend service, URL map, target proxy, and forwarding rule.

  • In Cloud Shell, enter the following command to create the health-check for the Juice Shop service port:

gcloud compute health-checks create tcp tcp-port-3000 \ --port 3000

Output:

Created NAME PROTOCOL tcp-port-3000 TCP

Set up the Cloud load balancer component: backend service

  1. In Cloud Shell, enter the following command to create the backend service parameters:

gcloud compute backend-services create juice-shop-backend \ --protocol HTTP \ --port-name http \ --health-checks tcp-port-3000 \ --enable-logging \ --global

Output:

NAME BACKENDS PROTOCOL juice-shop-backend HTTP
  1. Add the Juice Shop instance group to the backend service:
gcloud compute backend-services add-backend juice-shop-backend \ --instance-group={{{my_primary_project.startup_script.vm_instance_group| Instance Group}}} \ --instance-group-zone={{{my_primary_project.startup_script.zone| Zone}}} \ --global

Output:

Updated [https://www.googleapis.com/compute/v1/projects/cythom-host1/global/backendServices/juice-shop-backend].

Set up the Cloud load balancer component: URL map

  • In Cloud Shell, enter the following command to create the URL map to send incoming requests to the backend:

gcloud compute url-maps create juice-shop-loadbalancer \ --default-service juice-shop-backend

Output:

NAME DEFAULT_SERVICE juice-shop-loadbalancer backendServices/juice-shop-backend

Set up the Cloud load balancer component: target proxy

  • In Cloud Shell, enter the following command to create the Target Proxy to route incoming requests the URL map:

gcloud compute target-http-proxies create juice-shop-proxy \ --url-map juice-shop-loadbalancer

Output:

NAME URL_MAP juice-shop-proxy juice-shop-loadbalancer

Set up the Cloud load balancer component: forwarding rule

  • In Cloud Shell, enter the following command to create the forwarding rule for the Load Balancer:

gcloud compute forwarding-rules create juice-shop-rule \ --global \ --target-http-proxy=juice-shop-proxy \ --ports=80

Output:

Created [https://www.googleapis.com/compute/v1/projects/cythom-host1/global/forwardingRules/juice-shop-rule].

Verify the Juice Shop service is online

  1. From Cloud Shell:

PUBLIC_SVC_IP="$(gcloud compute forwarding-rules describe juice-shop-rule --global --format="value(IPAddress)")" echo $PUBLIC_SVC_IP

Output:

<public VIP of service>

Wait a few minutes before continuing on, else you may retrieve a HTTP/1.1 404 Not Found response.

  1. From Cloud Shell:

curl -Ii http://$PUBLIC_SVC_IP

Output:

HTTP/1.1 200 OK <...>

You can also go to the browser to view the Juice Shop!

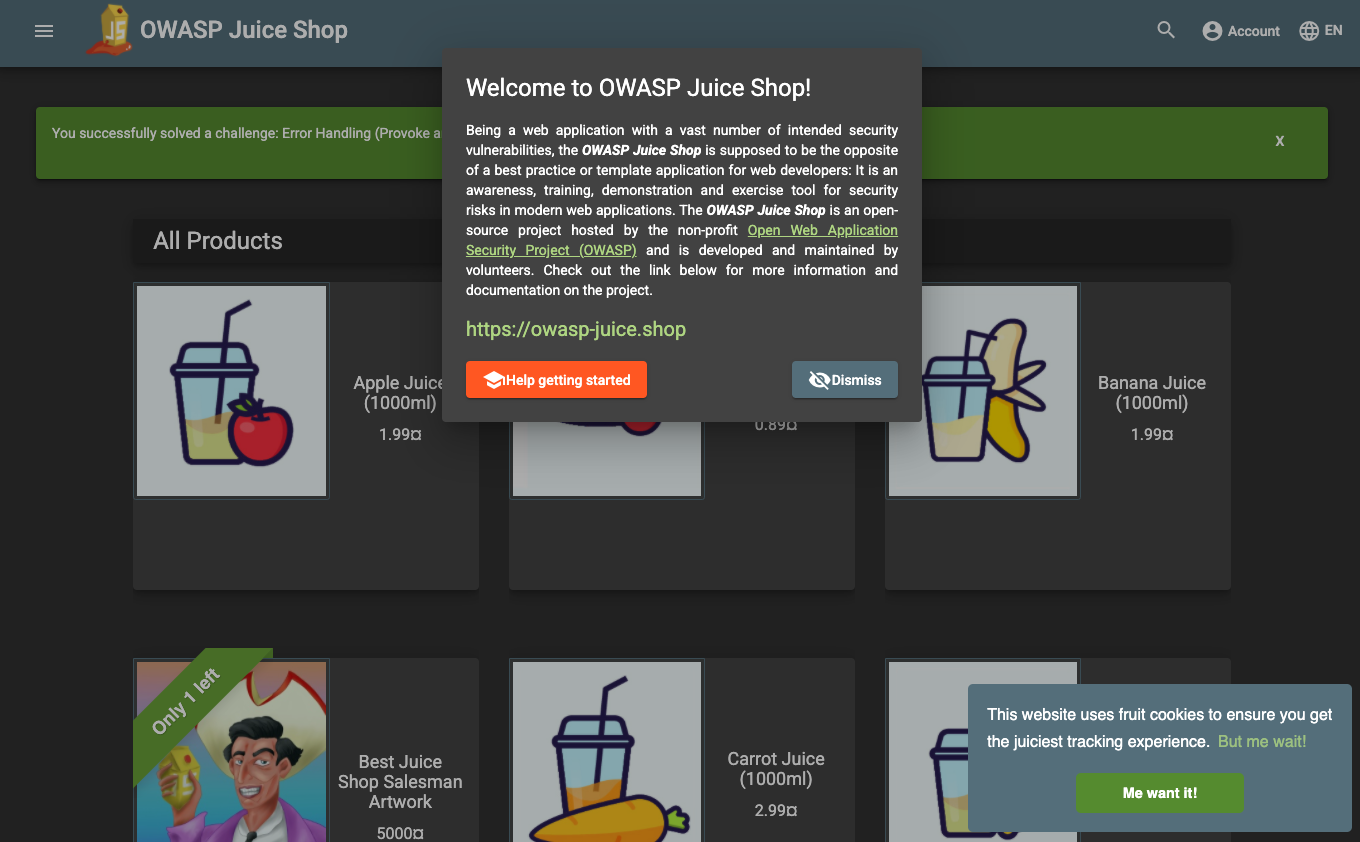

The Welcome to OWASP Juice Shop page

You're now ready to explore the Juice Shop vulnerabilities and protect against them with Cloud Armor WAF rule sets.

Click Check my progress to verify the objective. Set up the Cloud load balancer component- health check

Task 3. Demonstrate known vulnerabilities

In this lab, you demonstrate the states before and after Cloud Armor WAF rules are propagated in condensed steps.

Observe an LFI vulnerability: path traversal

Local File Inclusion is the process of observing files present on the server by exploiting lack of input validation in the request to potentially expose sensitive data. The following shows a path traversal is possible. In your browser or with curl, observe an existing path served by the application.

  1. From Cloud Shell:

curl -Ii http://$PUBLIC_SVC_IP/ftp

Output:

HTTP/1.1 200 OK <...>

Observe that path traversal works too.

  1. From Cloud Shell:

curl -Ii http://$PUBLIC_SVC_IP/ftp/../

Output:

HTTP/1.1 200 OK <...>

Observe an RCE vulnerability

Remote Code Execution includes various UNIX and Windows command injection scenarios allowing attackers to execute OS commands usually restricted to privileged users. The following shows a simple ls command execution passed in.

  • From Cloud Shell:

curl -Ii http://$PUBLIC_SVC_IP/ftp?doc=/bin/ls

Output:

HTTP/1.1 200 OK <...>

Remove the curl flags to observe the full output.

Observe a well-known scanner's access

Both commercial and open source scan applications for various purposes, including to find vulnerabilities. These tools use well-known User-Agent and other Headers. Observe curl works with a well-known User-Agent Header.

  • In Cloud Shell:

curl -Ii http://$PUBLIC_SVC_IP -H "User-Agent: blackwidow"

Output:

HTTP/1.1 200 OK <...>

Observe a protocol attack: HTTP splitting

Some web applications use input from the user to generate the headers in the responses. If the application doesn't properly filter the input, an attacker can potentially poison the input parameter with the sequence %0d%0a (the CRLF sequence that is used to separate different lines).

The response could then be interpreted as two responses by anything that happens to parse it, like an intermediary proxy server, potentially serving false content in subsequent requests. Insert the sequence %0d%0a into the input parameter, which can lead to serving a misleading page.

  • From Cloud Shell:

curl -Ii "http://$PUBLIC_SVC_IP/index.html?foo=advanced%0d%0aContent-Length:%200%0d%0a%0d%0aHTTP/1.1%20200%20OK%0d%0aContent-Type:%20text/html%0d%0aContent-Length:%2035%0d%0a%0d%0a<html>Sorry,%20System%20Down</html>"

Output:

HTTP/1.1 200 OK <...>

Observe session fixation

  • In Cloud Shell:

curl -Ii http://$PUBLIC_SVC_IP -H session_id=X

Output:

HTTP/1.1 200 OK <...>

Task 4. Define Cloud Armor WAF rules

  1. List the preconfigured WAF rules, using the following command in Cloud Shell:

gcloud compute security-policies list-preconfigured-expression-sets EXPRESSION_SET Sqli-canary RULE_ID owasp-crs-v030001-id942110-sqli owasp-crs-v030001-id942120-sqli <...>
  1. Create the Cloud Armor security policy using the following command in Cloud Shell:
gcloud compute security-policies create {{{my_primary_project.startup_script.policy_name| Policy Name}}} \ --description "Block with OWASP ModSecurity CRS"
  1. In Cloud Shell, update the security policy default rule.
Note: The default rule priority has a numerical value of 2147483647. gcloud compute security-policies rules update 2147483647 \ --security-policy {{{my_primary_project.startup_script.policy_name| Policy Name}}} \ --action "deny-403"
  1. Since the default rule is configured with action deny, you must allow access from your IP. Please find your public IP (curl, ipmonkey, whatismyip, etc):

MY_IP=$(curl ifconfig.me)
  1. Add the first rule to allow access from your IP (INSERT YOUR IP BELOW):
gcloud compute security-policies rules create 10000 \ --security-policy {{{my_primary_project.startup_script.policy_name| Policy Name}}} \ --description "allow traffic from my IP" \ --src-ip-ranges "$MY_IP/32" \ --action "allow"
  1. In Cloud Shell, update the security policy to block LFI attacks.

Apply the OWASP ModSecurity Core Rule Set that prevents path traversal for local file inclusions.

gcloud compute security-policies rules create 9000 \ --security-policy {{{my_primary_project.startup_script.policy_name| Policy Name}}} \ --description "block local file inclusion" \ --expression "evaluatePreconfiguredExpr('lfi-stable')" \ --action deny-403
  1. In Cloud Shell, update the security policy to block Remote Code Execution (rce).

Per the OWASP ModSecurity Core Rule Set, apply rules that look for rce, including command injection. Typical OS commands are detected and blocked.

gcloud compute security-policies rules create 9001 \ --security-policy {{{my_primary_project.startup_script.policy_name| Policy Name}}} \ --description "block rce attacks" \ --expression "evaluatePreconfiguredExpr('rce-stable')" \ --action deny-403
  1. Update the security policy to block security scanners.

Apply the OWASP ModSecurity Core Rule Set to block well-known security scanners, scripting HTTP clients, and web crawlers.

gcloud compute security-policies rules create 9002 \ --security-policy {{{my_primary_project.startup_script.policy_name| Policy Name}}} \ --description "block scanners" \ --expression "evaluatePreconfiguredExpr('scannerdetection-stable')" \ --action deny-403
  1. In Cloud Shell, update the security policy to block protocol attacks.

Per the OWASP ModSecurity Core Rule Set, apply rules that look for Carriage Return (CR) %0d and Linefeed (LF)%0a characters and other types of protocol attacks like HTTP Request Smuggling.

gcloud compute security-policies rules create 9003 \ --security-policy {{{my_primary_project.startup_script.policy_name| Policy Name}}} \ --description "block protocol attacks" \ --expression "evaluatePreconfiguredExpr('protocolattack-stable')" \ --action deny-403
  1. Update the security policy to block session fixation.

Per the OWASP ModSecurity Core Rule Set, apply the following rules using Cloud Shell:

gcloud compute security-policies rules create 9004 \ --security-policy {{{my_primary_project.startup_script.policy_name| Policy Name}}} \ --description "block session fixation attacks" \ --expression "evaluatePreconfiguredExpr('sessionfixation-stable')" \ --action deny-403
  1. Attach the security policy to the backend service:
gcloud compute backend-services update juice-shop-backend \ --security-policy {{{my_primary_project.startup_script.policy_name| Policy Name}}} \ --global

Rules may take some time to propagate (but not more than 10 mins).

  1. Once sufficient time has passed, test the vulnerabilities previously demonstrated to confirm Cloud Armor WAF rule enforcement in the next step.

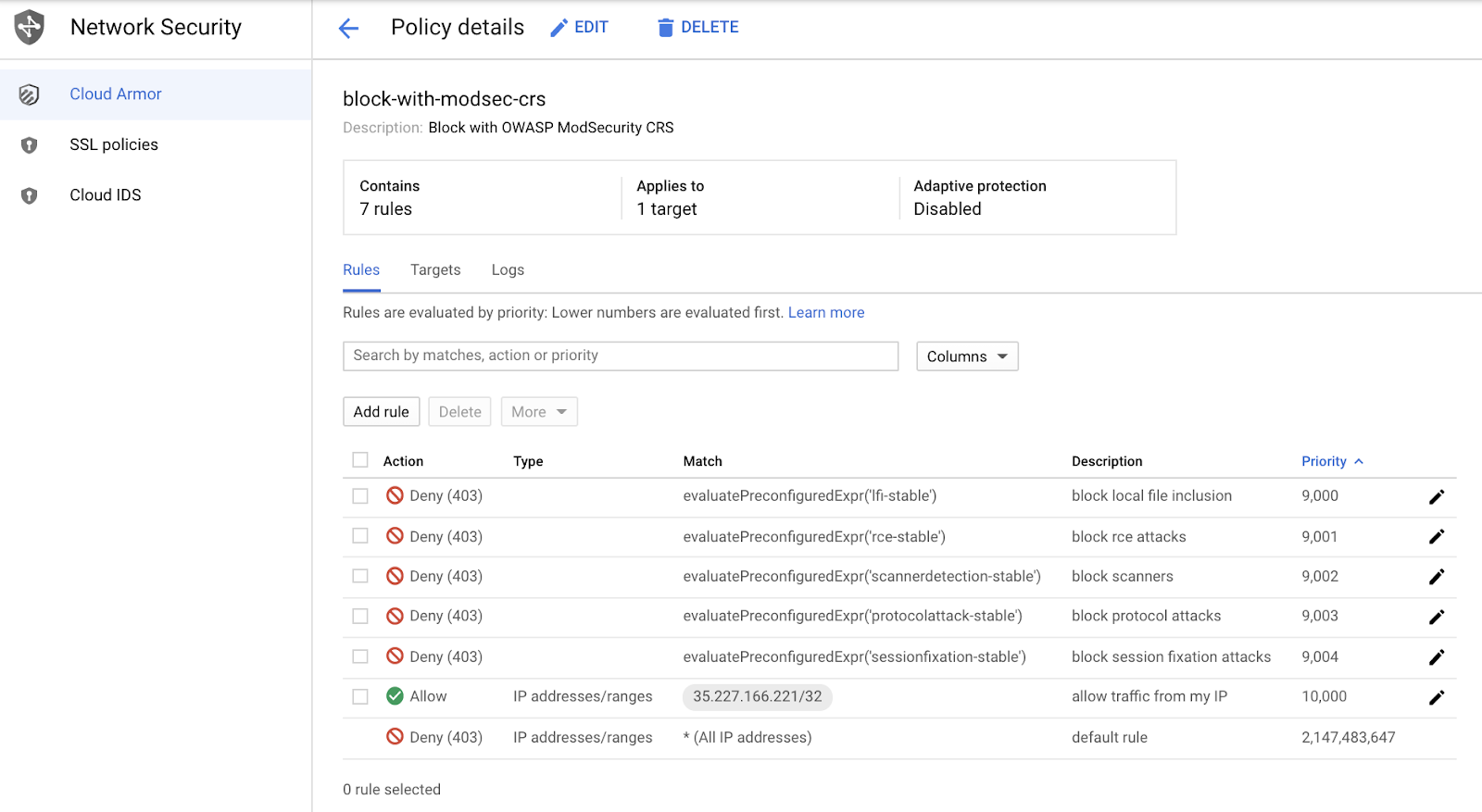

Click Check my progress to verify the objective. Create the Cloud Armor security policy

Observe Cloud Armor protection with OWASP ModSecurity Core Rule Set

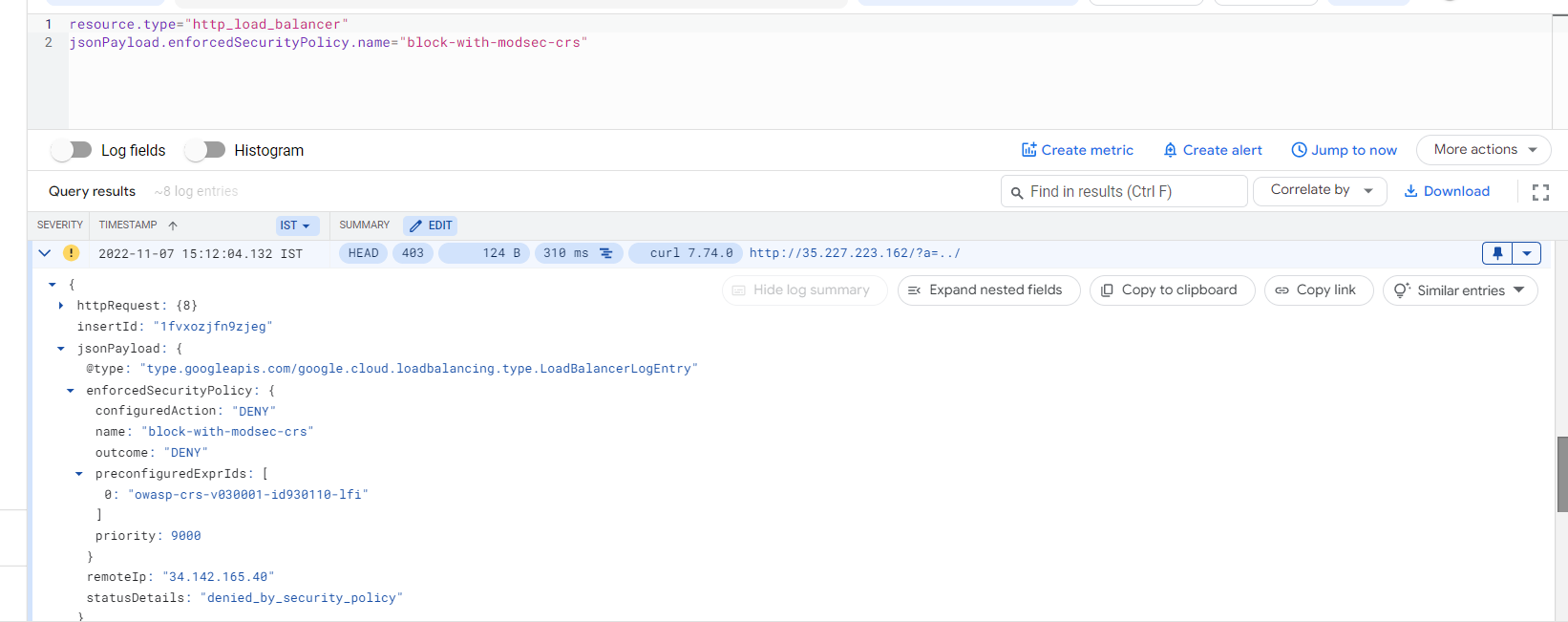

  1. In Cloud Shell, confirm the LFI vulnerability is mitigated:

curl -Ii http://$PUBLIC_SVC_IP/?a=../

Output:

HTTP/1.1 403 Forbidden <...>

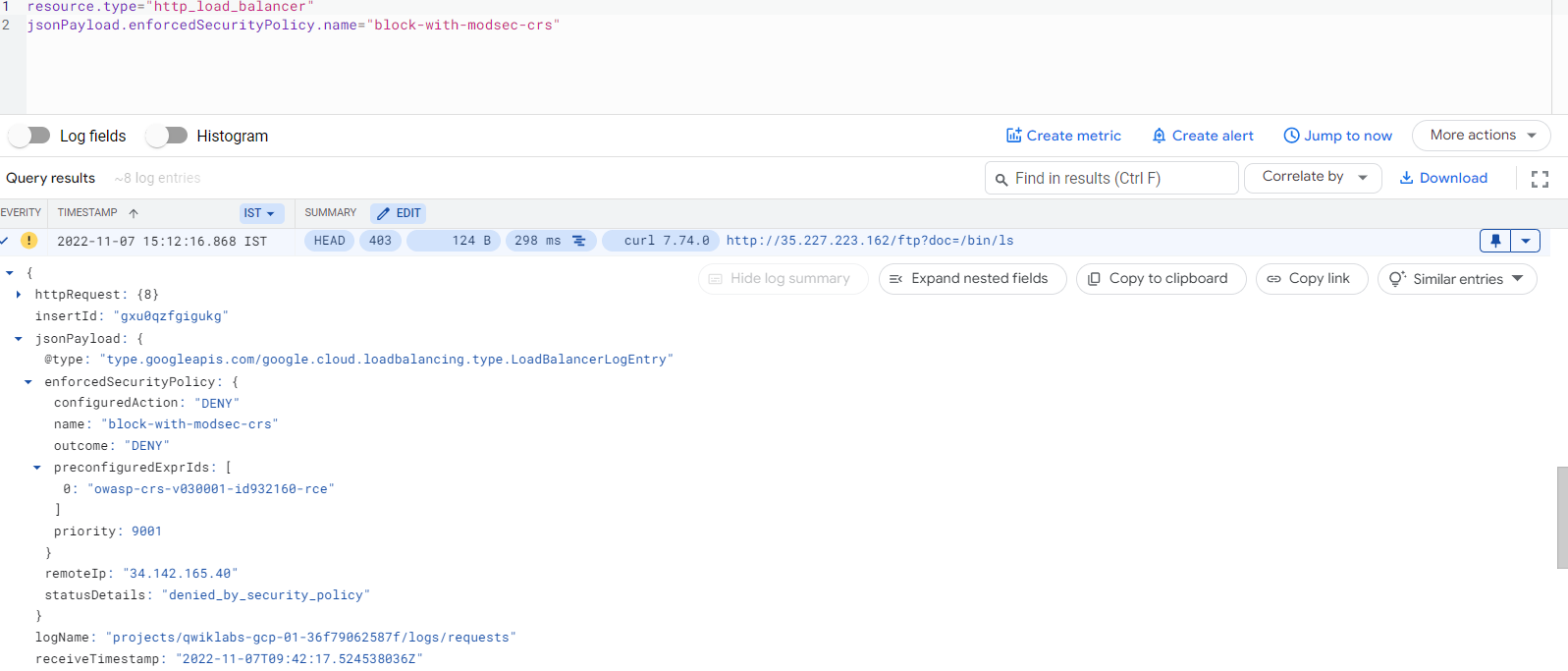

  1. In Cloud Shell, confirm the RCE attack is mitigated:

curl -Ii http://$PUBLIC_SVC_IP/ftp?doc=/bin/ls

Output:

HTTP/1.1 403 Forbidden <..>
  1. In Cloud Shell, confirm well-known scanner detection.

curl -Ii http://$PUBLIC_SVC_IP -H "User-Agent: blackwidow"

Output:

HTTP/1.1 403 Forbidden <..>
  1. In Cloud Shell, confirm a protocol attack is mitigated.

Per the OWASP ModSecurity Core Rule Set ver.3.0.2, the protocol attack is mitigated by:

curl -Ii "http://$PUBLIC_SVC_IP/index.html?foo=advanced%0d%0aContent-Length:%200%0d%0a%0d%0aHTTP/1.1%20200%20OK%0d%0aContent-Type:%20text/html%0d%0aContent-Length:%2035%0d%0a%0d%0a<html>Sorry,%20System%20Down</html>"

Output:

HTTP/1.1 403 Forbidden <..>
  1. In Cloud Shell, confirm session fixation attempts are blocked:

curl -Ii http://$PUBLIC_SVC_IP/?session_id=a

Output:

HTTP/1.1 403 Forbidden <..>

Task 5. Review Cloud Armor Security rules

Now that you've created the security policy, look at what rules have been configured.

Rules tabbed page, which lists several rules and their descriptions

Rules are evaluated by priority: lower numbers are evaluated first and once triggered, processing does not continue for rules with higher priority values.

  • Priority 9000 - Block LFI (local file inclusion)
  • Priority 9001 - Block RCE (remote code execution/command injection)
  • Priority 9002 - Block Scanners Detected
  • Priority 9003 - Block Protocol Attacks like HTTP splitting and HTTP smuggling
  • Priority 9004 - Block Session Fixation Attacks
  • Priority 10000 - Allow your IP to access the Website
  • Priority Default - Deny.
Note: Notice the "allow your IP" rule is configured with the highest priority number to allow access to the site, however blocks any attack.

Task 6. Observe Cloud Armor security policy logs

From the Cloud Armor console page, view details of the security policy and click the Logs tab followed by the View policy logs link to be directed to the Cloud Logging page. It automatically filters based on the security policy of interest, for example, resource.type:(http_load_balancer) AND jsonPayload.enforcedSecurityPolicy.name:. Observe the 403 error response codes and expand the log details to observe the enforced security policy's name, matched field value, and further down the preconfigured expression IDs (or the signature id).

It automatically filters based on the security policy of interest, for example, resource.type:(http_load_balancer) AND jsonPayload.enforcedSecurityPolicy.name:().

  • Observe the 403 error response codes and expand the log details to observe the enforced security policy's name, matched field value, and further down the preconfigured expression IDs (or the signature id).

The following screenshots show examples of the logs for the enforced security policies configured in this lab.

LFI log The LFI log

RCE log The RCE log

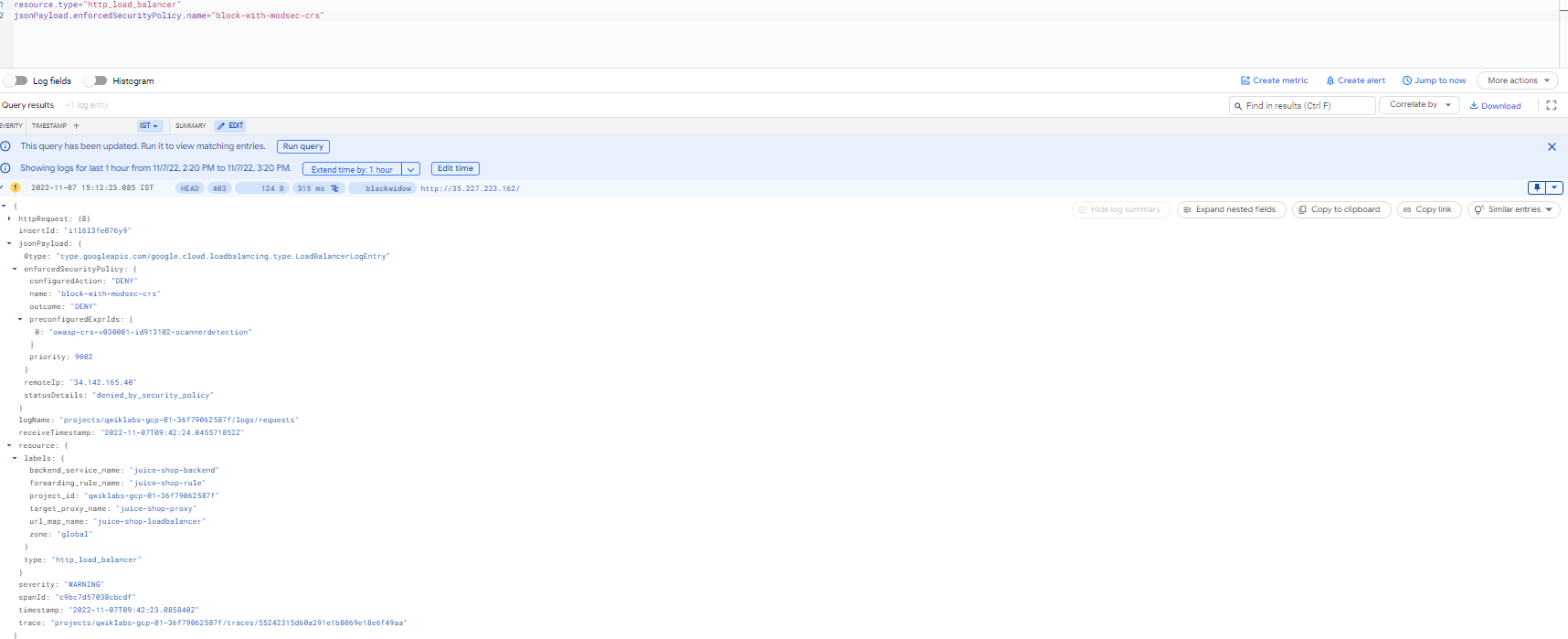

Scanner detection log The Scanner detection  log

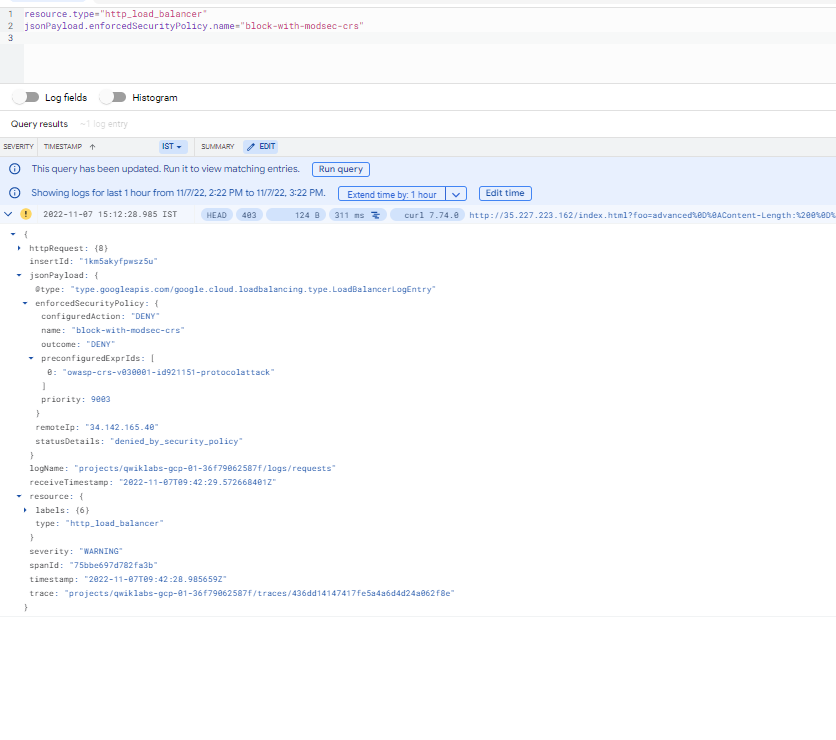

Protocol attack log The Protocol attack log

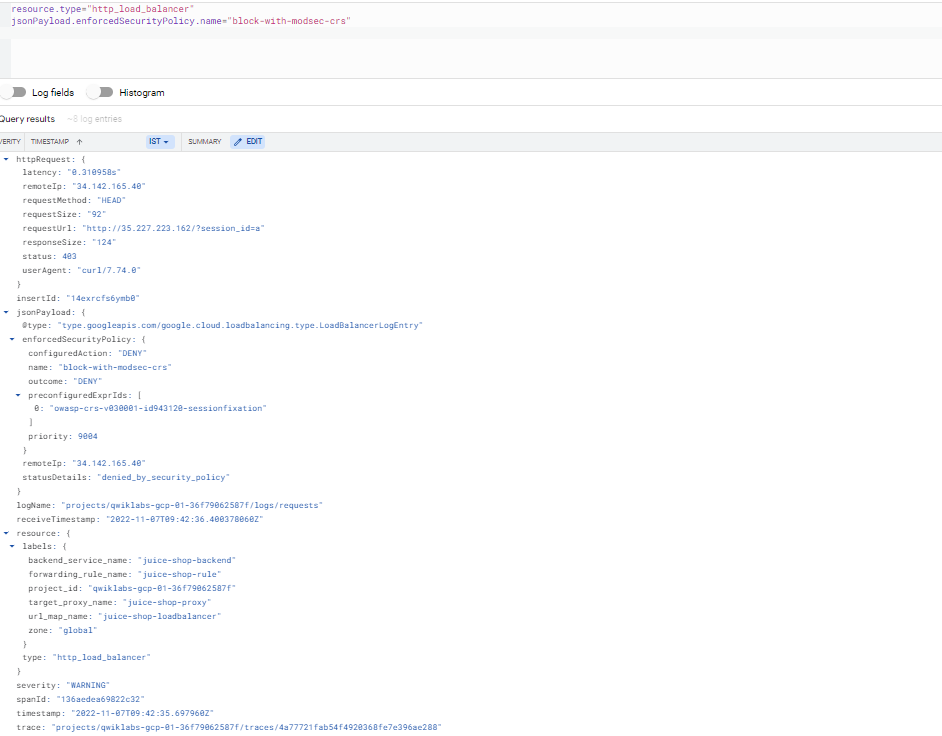

Session fixation log The Session fixation log

Congratulations!

You've successfully mitigated some of the common vulnerabilities by using Google Cloud Armor WAF rules.

Manual Last Updated: December 22, 2022

Lab Last Tested: November 11, 2022

Copyright 2023 Google LLC All rights reserved. Google and the Google logo are trademarks of Google LLC. All other company and product names may be trademarks of the respective companies with which they are associated.
