Creating a Data Transformation Pipeline with Cloud Dataprep

1 hour 15 minutes 5 Credits

This lab was developed with our partner, Alteryx. Your personal information may be shared with Alteryx, the lab sponsor, if you have opted-in to receive product updates, announcements, and offers in your Account Profile.

GSP430

Google Cloud self-paced labs logo

Overview

Cloud Dataprep by Alteryx is an intelligent data service for visually exploring, cleaning, and preparing structured and unstructured data for analysis. In this lab you explore the Cloud Dataprep UI to build a data transformation pipeline that outputs results into BigQuery.

The dataset you'll use is an ecommerce dataset that has millions of Google Analytics session records for the Google Merchandise Store loaded into BigQuery. You have a copy of that dataset for this lab and will explore the available fields and row for insights.

Objectives

In this lab, you will learn how to perform these tasks:

  • Connect BigQuery datasets to Cloud Dataprep.
  • Explore dataset quality with Cloud Dataprep.
  • Create a data transformation pipeline with Cloud Dataprep.
  • Run transformation jobs outputs to BigQuery.

Setup and requirements

Note: to run this lab, you will need to use Google Chrome. Other browsers are currently not supported by Cloud Dataprep.

It is recommended that you take the Working with Cloud Dataprep on Google Cloud lab before attempting this lab.

Before you click the Start Lab button

Read these instructions. Labs are timed and you cannot pause them. The timer, which starts when you click Start Lab, shows how long Google Cloud resources will be made available to you.

This hands-on lab lets you do the lab activities yourself in a real cloud environment, not in a simulation or demo environment. It does so by giving you new, temporary credentials that you use to sign in and access Google Cloud for the duration of the lab.

To complete this lab, you need:

  • Access to a standard internet browser (Chrome browser recommended).
Note: Use an Incognito or private browser window to run this lab. This prevents any conflicts between your personal account and the Student account, which may cause extra charges incurred to your personal account.
  • Time to complete the lab---remember, once you start, you cannot pause a lab.
Note: If you already have your own personal Google Cloud account or project, do not use it for this lab to avoid extra charges to your account.

How to start your lab and sign in to the Google Cloud Console

  1. Click the Start Lab button. If you need to pay for the lab, a pop-up opens for you to select your payment method. On the left is the Lab Details panel with the following:

    • The Open Google Console button
    • Time remaining
    • The temporary credentials that you must use for this lab
    • Other information, if needed, to step through this lab
  2. Click Open Google Console. The lab spins up resources, and then opens another tab that shows the Sign in page.

    Tip: Arrange the tabs in separate windows, side-by-side.

    Note: If you see the Choose an account dialog, click Use Another Account.
  3. If necessary, copy the Username from the Lab Details panel and paste it into the Sign in dialog. Click Next.

  4. Copy the Password from the Lab Details panel and paste it into the Welcome dialog. Click Next.

    Important: You must use the credentials from the left panel. Do not use your Google Cloud Skills Boost credentials. Note: Using your own Google Cloud account for this lab may incur extra charges.
  5. Click through the subsequent pages:

    • Accept the terms and conditions.
    • Do not add recovery options or two-factor authentication (because this is a temporary account).
    • Do not sign up for free trials.

After a few moments, the Cloud Console opens in this tab.

Note: You can view the menu with a list of Google Cloud Products and Services by clicking the Navigation menu at the top-left. Navigation menu icon

Task 1. Open Google Cloud Dataprep

  1. In the Cloud Console go to the Navigation menu, and under Analytics select Dataprep.

  2. To get into Cloud Dataprep, check that you agree to Google Dataprep Terms of Service, and then click Accept.

  3. Click the checkbox and then click Agree and Continue when prompted to share account information with Alteryx.

  4. Click Allow to give Alteryx access to your project.

  5. Select your Qwiklabs credentials to sign in and click Allow.

  6. Check the box and click Accept to agree to Alteryx Terms of Service.

  7. If prompted to use the default location for the storage bucket, click Continue.

Task 2. Creating a BigQuery dataset

Although this lab is largely focused on Cloud Dataprep, you need BigQuery as an endpoint for dataset ingestion to the pipeline and as a destination for the output when the pipeline is completed.

Data flow pipeline

  1. In the Cloud Console, select Navigation menu > BigQuery.

  2. The Welcome to BigQuery in the Cloud Console message box opens. This message box provides a link to the quickstart guide and lists UI updates.

  3. Click Done.

  4. In the Explorer pane, select your project name:

Explorer pane

  1. In the left pane, under Explorer section, click on the View actions icon (View actions icon) to the right of your project ID, then click Create dataset.

  • For Dataset ID, type ecommerce.

  • Leave the other values at their defaults.

  1. Click CREATE DATASET. You will now see your dataset under your project in the left pane.

  2. Copy and paste the following SQL query into the Query Editor:

#standardSQL CREATE OR REPLACE TABLE ecommerce.all_sessions_raw_dataprep OPTIONS( description="Raw data from analyst team to ingest into Cloud Dataprep" ) AS SELECT * FROM `data-to-insights.ecommerce.all_sessions_raw` WHERE date = '20170801'; # limiting to one day of data 56k rows for this lab
  1. Click RUN. This query copies over a subset of the public raw ecommerce dataset (one day's worth of session data, or about 56 thousand records) into a new table named all_sessions_raw_dataprep, which has been added to your ecommerce dataset for you to explore and clean in Cloud Dataprep.

  2. Confirm that the new table exists in your ecommerce dataset:

Task 3. Connecting BigQuery data to Cloud Dataprep

In this task, you will connect Cloud Dataprep to your BigQuery data source. On the Cloud Dataprep page:

  1. Click Create a new flow in the left corner.

  2. Rename the Untitled Flow and specify these details:

  • For Flow Name, type Ecommerce Analytics Pipeline

  • For Flow Description, type Revenue reporting table

  1. Click Ok.

  2. If prompted with a What's a flow? popup, select Don't show me any helpers.

  3. Click the Add Icon in the Dataset box.

Add icon highlighted

  1. In the Add Datasets to Flow dialog box, select Import Datasets.

  2. In the left pane, click BigQuery.

  3. When your ecommerce dataset is loaded, click on it.

ecommerce dataset highlighted

  1. Click on the Create dataset icon (+ sign) on the left of the all_sessions_raw_dataprep table.

  2. Click Import & Add to Flow in the bottom right corner.

The data source automatically updates. You are ready to go to the next task.

Task 4. Exploring ecommerce data fields with the UI

In this task, you will load and explore a sample of the dataset within Cloud Dataprep.

  • Click the Recipe icon and then select Edit Recipe.

Recipe icon and Edit Recipe button highlighted

Cloud Dataprep loads a sample of your dataset into the Transformer view. This process might take a few seconds. You are now ready to start exploring the data!

Answer the following questions:

  • How many columns are there in the dataset?

Dataset

Answer: 32 columns.

  • How many rows does the sample contain?

Dataset

Answer: About 12 thousand rows.

  • What is the most common value in the channelGrouping column?
Hint: Find out by hovering your mouse cursor over the histogram under the channelGrouping column title.

channelGrouping column

Answer: Referral. A referring site is typically any other website that has a link to your content. An example here is a different website reviewed a product on our ecommerce website and linked to it. This is considered a different acquisition channel than if the visitor came from a search engine.

Note: When looking for a specific column, click the Find column icon (Find column icon) in the top right corner, then start typing the column's name in the Find column textfield, then click on the column's name. This will automatically scroll the grid to bring the column on the screen.
  • What are the top three countries from which sessions are originated?

Country dataset

Answer: United States, India, United Kingdom

  • What does the grey bar under totalTransactionRevenue represent?

totalTransactionRevenue bar

Answer: Missing values for the totalTransactionRevenue field. This means that a lot of sessions in this sample did not generate revenue. Later, we will filter out these values so our final table only has customer transactions and associated revenue.

  • What is the maximum timeOnSite in seconds, maximum pageviews, and maximum sessionQualityDim for the data sample? (Hint: Open the menu to the right of the timeOnSite column by clicking dropdown arrowthe Column Details menu)

timeOnSite and maximum pageviews datasets

timeOnSite Overview tabbed page

To close the details window, click the Close Column Details (X) button in the top right corner. Then repeat the process to view details for the pageviews and sessionQualityDim columns.

Close button

Answers:

  • Maximum Time On Site: 5,561 seconds (or 92 minutes)
  • Maximum Pageviews: 155 pages
  • Maximum Session Quality Dimension: 97
Note: Your answers for maximums may vary slightly due to the data sample used by Cloud Dataprep. Note on averages: Use extra caution when performing aggregations like averages over a column of data. We need to first ensure fields like timeOnSite are only counted once per session. We'll explore the uniqueness of visitor and session data in a later lab.
  • Looking at the histogram for sessionQualityDim, are the data values evenly distributed?

sessionQualityDim histogram

Answer: No, they are skewed to lower values (low quality sessions), which is expected.

  • What is the date range for the dataset? Hint: Look at date field

Answer: 8/1/2017 (one day of data)

  • You might see a red bar under the productSKU column. If so, what might that mean?

productSKU column

Answer: A red bar indicates mismatched values. While sampling data, Cloud Dataprep attempts to automatically identify the type of each column. If you do not see a red bar for the productSKU column, then this means that Cloud Dataprep correctly identified the type for the column (i.e. the String type). If you do see a red bar, then this means that Cloud Dataprep found enough number values in its sampling to determine (incorrectly) that the type should be Integer. Cloud Dataprep also detected some non-integer values and therefore flagged those values as mismatched. In fact, the productSKU is not always an integer (for example, a correct value might be "GGOEGOCD078399"). So in this case, Cloud Dataprep incorrectly identified the column type: it should be a string, not an integer. You will fix that later in this lab.

  • Looking at the v2ProductName column, what are the most popular products?

v2ProductName column

Answer: Nest products

  • Looking at the v2ProductCategory column, what are some of the most popular product categories?

v2ProductCategory column

Answers:

The most popular product categories are:

  • Nest

  • Bags

  • (not set) (which means that some sessions are not associated with a category)

  • True or False? The most common productVariant is COLOR.

Answer: False. It's (not set) because most products do not have variants (80%+)

  • What are the two values in the type column?

Answer: PAGE and EVENT

A user can have many different interaction types when browsing your website. Types include recording session data when viewing a PAGE or a special EVENT (like "clicking on a product") and other types. Multiple hit types can be triggered at the exact same time so you will often filter on type to avoid double counting. We'll explore this more in a later analytics lab.

  • What is the maximum productQuantity?

Answer: 100 (your answer may vary)

productQuantity indicates how many units of that product were added to cart. 100 means 100 units of a single product was added.

  • What is the dominant currencyCode for transactions?

Answer: USD (United States Dollar)

  • Are there valid values for itemQuantity or itemRevenue?

Answer: No, they are all NULL (or missing) values.

Note: After exploration, in some datasets you may find duplicative or deprecated columns. We will be using `productQuantity` and `productRevenue` fields instead and dropping the `itemQuantity` and `itemRevenue` fields later in this lab to prevent confusion for our report users.
  • What percentage of transactionId values are valid? What does this represent for our ecommerce dataset?

transactionId Overview page

  • Answer: About 4.6% of transaction IDs have a valid value, which represents the average conversion rate of the website (4.6% of visitors transact).
  • How many eCommerceAction_type values are there, and what is the most common value?
Hint: Count the distinct number of histogram columns.

eCommerceAction_type values

Answers: There are seven values found in our sample. The most common value is zero 0 which indicates that the type is unknown. This makes sense as the majority of the web sessions on our website will not perform any ecommerce actions as they are just browsing.

  • Using the schema, what does eCommerceAction_type = 6 represent?
Hint: Search for eCommerceAction type and read the description for the mapping

Answer: 6 maps to "Completed purchase". Later in this lab we will ingest this mapping as part of our data pipeline.

commerceAction.action_type STRING

Task 5. Cleaning the data

In this task, you will clean the data by deleting unused columns, eliminating duplicates, creating calculated fields, and filtering out unwanted rows.

Converting the productSKU column data type

  1. To ensure that the productSKU column type is a string data type, open the menu to the right of the productSKU column by clicking dropdown arrow, then click Change type > String.

productSKU > Change type > String

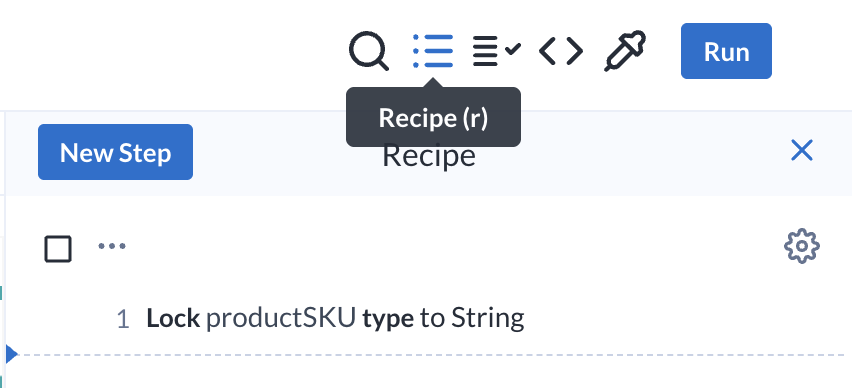

  1. Verify that the first step in your data transformation pipeline was created by clicking on the Recipe icon:

Recipe icon

Deleting unused columns

As we mentioned earlier, we will be deleting the itemQuantity and itemRevenue columns as they only contain NULL values and are not useful for the purpose of this lab.

  1. Open the menu for the itemQuantity column, and then click Delete.

itemQuantity column with the Delete menu option highlighted

  1. Repeat the process to delete the itemRevenue column.

Deduplicating rows

Your team has informed you there may be duplicate session values included in the source dataset. Let's remove these with a new deduplicate step.

  1. Click the Filter rows icon in the toolbar, then click Remove duplicate rows.

Filter rows dropdown menu with the Remove duplicate option highlighted

  1. Click Add in the right-hand panel.

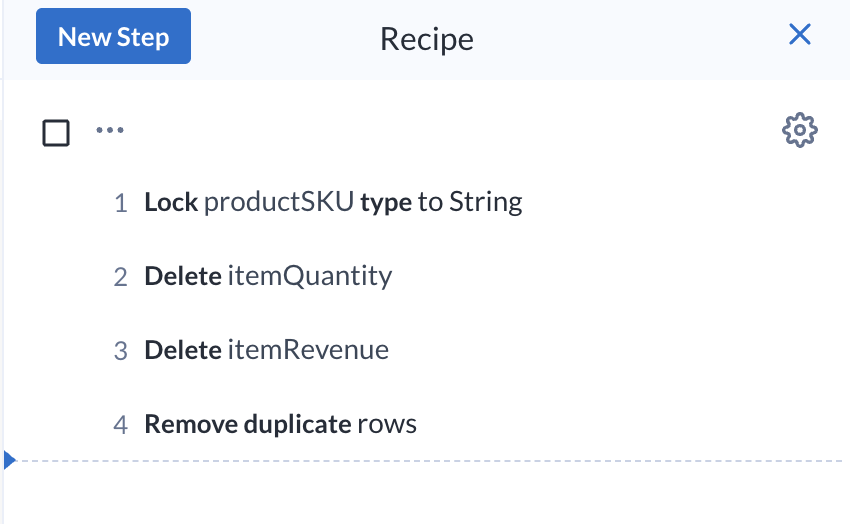

  2. Review the recipe that you created so far, it should resemble the following:

Four-step recipe

Filtering out sessions without revenue

Your team has asked you to create a table of all user sessions that bought at least one item from the website. Filter out user sessions with NULL revenue.

  1. Under the totalTransactionRevenue column, click the grey Missing values bar. All rows with a missing value for totalTransactionRevenue are now highlighted in red.
  2. In the Suggestions panel, in Delete rows , click Add.

Suggestions panel

This step filters your dataset to only include transactions with revenue (where totalTransactionRevenue is not NULL).

Filtering sessions for PAGE views

The dataset contains sessions of different types, for example PAGE (for page views) or EVENT (for triggered events like "viewed product categories" or "added to cart"). To avoid double counting session pageviews, add a filter to only include page view related hits.

  1. In the histogram below the type column, click the bar for PAGE. All rows with the type PAGE are now highlighted in green.

  2. In the Suggestions panel, in Keep rows, and click Add.

Task 6. Enriching the data

Search your schema documentation for visitId and read the description to determine if it is unique across all user sessions or just the user.

  • visitId: an identifier for this session. This is part of the value usually stored as the utmb cookie. This is only unique to the user. For a completely unique ID, you should use a combination of fullVisitorId and visitId.

As we see, visitId is not unique across all users. We will need to create a unique identifier.

Creating a new column for a unique session ID

As you discovered, the dataset has no single column for a unique visitor session. Create a unique ID for each session by concatenating the fullVisitorID and visitId fields.

  1. Click on the Merge columns icon in the toolbar.

Merge columns icon

  1. For Columns, select fullVisitorId and visitId.

  2. For Separator type a single hyphen character: -.

  3. For the New column name, type unique_session_id.

Merge columns panel

  1. Click Add.

The unique_session_id is now a combination of the fullVisitorId and visitId. We will explore in a later lab whether each row in this dataset is at the unique session level (one row per user session) or something even more granular.

Creating a case statement for the ecommerce action type

As you saw earlier, values in the eCommerceAction_type column are integers that map to actual ecommerce actions performed in that session. For example, 3 = "Add to Cart" or 5 = "Check out". This mapping will not be immediately apparent to our end users so let's create a calculated field that brings in the value name.

  1. Click on Conditions in the toolbar, then click Case on single column.

Conditions dropdown menu with Case on single column option highlighted

  1. For Column to evaluate, specify eCommerceAction_type.

  2. Next to Cases (1), click Add 8 times for a total of 9 cases.

Conditions section

  1. For each Case, specify the following mapping values (including the single quote characters):

Comparison

New value

0

'Unknown'

1

'Click through of product lists'

2

'Product detail views'

3

'Add product(s) to cart'

4

'Remove product(s) from cart'

5

'Check out'

6

'Completed purchase'

7

'Refund of purchase'

8

'Checkout options'

Condition panel with a preview of the evaluated column, eCommerceAction_type evaluated

  1. For New column name, type eCommerceAction_label. Leave the other fields at their default values.

  2. Click Add.

Adjusting values in the totalTransactionRevenue column

As mentioned in the schema, the totalTransactionRevenue column contains values passed to Analytics multiplied by 10^6 (e.g., 2.40 would be given as 2400000). You now divide the contents of that column by 10^6 to get the original values.

  1. Open the menu to the right of the totalTransactionRevenue column by clicking dropdown arrow, then select Calculate > Custom formula.

Custom formula highlighted

  1. For Formula, type: DIVIDE(totalTransactionRevenue,1000000) and for New column name, type: totalTransactionRevenue1. Notice the preview for the transformation:

Preview

  1. Click Add.
Note: You might see a red bar under the totalTransactionRevenue1 column. Open the menu to the right of the totalTransactionRevenue1 column by clicking 93c14cbf1f70a561.png, then click Change type > Decimal.
  1. Review the full list of steps in your recipe:

Full Recipe

  1. You can now click Run.

Task 7. Running Cloud Dataprep jobs to BigQuery

  1. In the Run Job page, select Dataflow for your Running Environment.

  2. Under Publishing Actions, click on Edit on the right of Create-CSV.

  3. In the following page, select BigQuery from the left hand menu.

  4. Select your ecommerce dataset.

  5. Click Create a New Table from the panel on the right.

  6. Name your table revenue_reporting.

  7. Select Drop the Table every run.

  8. Click on Update.

  9. Click RUN.

Once your Cloud Dataprep job is completed, refresh your BigQuery page and confirm that the output table revenue_reporting exists.

Note: If your job fails, try waiting a minute, pressing the back button on your browser, and running the job again with the same settings.

Click Check my progress to verify the objective. Verify if the Cloud Dataprep jobs output the data to BigQuery

Congratulations!

You've successfully explored your ecommerce dataset and created a data transformation pipeline with Cloud Dataprep.

Finish your quest

This self-paced lab is part of the Data Engineering quest. A quest is a series of related labs that form a learning path. Completing this quest earns you a badge to recognize your achievement. You can make your badge or badges public and link to them in your online resume or social media account. Enroll in this quest and get immediate completion credit. Refer to the Google Cloud Skills Boost catalog for all available quests.

Take your next lab

Continue your quest with ETL Processing on Google Cloud Using Dataflow and BigQuery, or check out these suggestion:

Next steps / Learn more

  • Alteryx on the Google Cloud Marketplace!

  • Do you already have a Google Analytics account and want to query your own datasets in BigQuery? Follow this export guide.

Google Cloud training and certification

...helps you make the most of Google Cloud technologies. Our classes include technical skills and best practices to help you get up to speed quickly and continue your learning journey. We offer fundamental to advanced level training, with on-demand, live, and virtual options to suit your busy schedule. Certifications help you validate and prove your skill and expertise in Google Cloud technologies.

Last Tested Date: September 30, 2022

Last Updated Date: September 12, 2022

Copyright 2022 Google LLC All rights reserved. Google and the Google logo are trademarks of Google LLC. All other company and product names may be trademarks of the respective companies with which they are associated.
