Deploy infrastructure with Terraform
Deploy Kubernetes Load Balancer Service with Terraform
In Terraform, a Provider is the logical abstraction of an upstream API. This lab will show you how to set up a Kubernetes cluster and deploy Load Balancer type NGINX service on it.
In this lab, you will learn how to:
- Deploy a Kubernetes cluster along with a service using Terraform
For this lab, you should have experience with the following:
- Familiarity with Kubernetes Services
- Familiarity with
Setup and requirements
Before you click the Start Lab button
Read these instructions. Labs are timed and you cannot pause them. The timer, which starts when you click Start Lab, shows how long Google Cloud resources will be made available to you.
This hands-on lab lets you do the lab activities yourself in a real cloud environment, not in a simulation or demo environment. It does so by giving you new, temporary credentials that you use to sign in and access Google Cloud for the duration of the lab.
To complete this lab, you need:
- Access to a standard internet browser (Chrome browser recommended).
- Time to complete the lab---remember, once you start, you cannot pause a lab.
How to start your lab and sign in to the Google Cloud Console
Click the Start Lab button. If you need to pay for the lab, a pop-up opens for you to select your payment method. On the left is the Lab Details panel with the following:
- The Open Google Console button
- Time remaining
- The temporary credentials that you must use for this lab
- Other information, if needed, to step through this lab
Click Open Google Console. The lab spins up resources, and then opens another tab that shows the Sign in page.
Tip: Arrange the tabs in separate windows, side-by-side.
Note: If you see the Choose an account dialog, click Use Another Account.
If necessary, copy the Username from the Lab Details panel and paste it into the Sign in dialog. Click Next.
Copy the Password from the Lab Details panel and paste it into the Welcome dialog. Click Next.
Important: You must use the credentials from the left panel. Do not use your Google Cloud Skills Boost credentials. Note: Using your own Google Cloud account for this lab may incur extra charges.
Click through the subsequent pages:
- Accept the terms and conditions.
- Do not add recovery options or two-factor authentication (because this is a temporary account).
- Do not sign up for free trials.
After a few moments, the Cloud Console opens in this tab.
Activate Cloud Shell
Cloud Shell is a virtual machine that is loaded with development tools. It offers a persistent 5GB home directory and runs on the Google Cloud. Cloud Shell provides command-line access to your Google Cloud resources.
- Click Activate Cloud Shell at the top of the Google Cloud console.
When you are connected, you are already authenticated, and the project is set to your PROJECT_ID. The output contains a line that declares the PROJECT_ID for this session:
gcloud is the command-line tool for Google Cloud. It comes pre-installed on Cloud Shell and supports tab-completion.
- (Optional) You can list the active account name with this command:
Your output should now look like this:
- (Optional) You can list the project ID with this command:
gcloud, in Google Cloud, refer to the gcloud CLI overview guide.
A service is a grouping of pods that are running on the cluster. Services are "cheap" and you can have many services within the cluster. Kubernetes services can efficiently power a microservice architecture.
Services provide important features that are standardized across the cluster: load-balancing, service discovery between applications, and features to support zero-downtime application deployments.
Each service has a pod label query which defines the pods which will process data for the service. This label query frequently matches pods created by one or more replication controllers. Powerful routing scenarios are possible by updating a service's label query via the Kubernetes API with deployment software.
While you could use
kubectl or similar CLI-based tools mapped to API calls to manage all Kubernetes resources described in YAML files, orchestration with Terraform presents a few benefits:
- One language - You can use the same configuration language to provision the Kubernetes infrastructure and to deploy applications into it.
Drift detection -
terraform planwill always present you the difference between reality at a given time and the config you intend to apply.
- Full lifecycle management - Terraform doesn't just initially create resources, but offers a single command to create, update, and delete tracked resources without needing to inspect the API to identify those resources.
- Synchronous feedback - While asynchronous behavior is often useful, sometimes it's counter-productive as the job of identifying operation results (failures or details of created resource) is left to the user. e.g. you don't have the IP/hostname of the load balancer until it has finished provisioning, hence you can't create any DNS record pointing to it.
- Graph of relationships - Terraform understands relationships between resources which may help in scheduling - e.g. Terraform won't try to create a service in a Kubernetes cluster until the cluster exists.
Task 1. Clone the sample code
- In Cloud Shell, start by cloning the sample code:
- Navigate to the
Task 2. Understand the code
- Review the contents of the
- Variables are defined for
network_name. These will be used to create the Kubernetes cluster.
- The Google Cloud provider will let us create resources in this project.
- There are several resources defined to create the appropriate network and cluster.
- At the end, there are some outputs which you'll see after running
- Review the contents of the
- The script configures a Kubernetes provider with Terraform and creates the service, namespace and a replication_controller resource.
- The script returns an
nginxservice IP as an output.
Task 3. Initialize and install dependencies
terraform init command is used to initialize a working directory containing the Terraform configuration files.
This command performs several different initialization steps in order to prepare a working directory for use and is always safe to run multiple times, to bring the working directory up to date with changes in the configuration:
- Run the
terraform applycommand, which is used to apply the changes required to reach the desired state of the configuration:
Review Terraform's actions and inspect the resources which will be created.
When ready, type yes to begin Terraform actions.
On completion, you should see similar output:
Verify resources created by Terraform
- In the console, navigate to Navigation menu > Kubernetes Engine.
- Click on
tf-gke-k8scluster and check its configuration.
- In the left panel, click Services & Ingress and check the

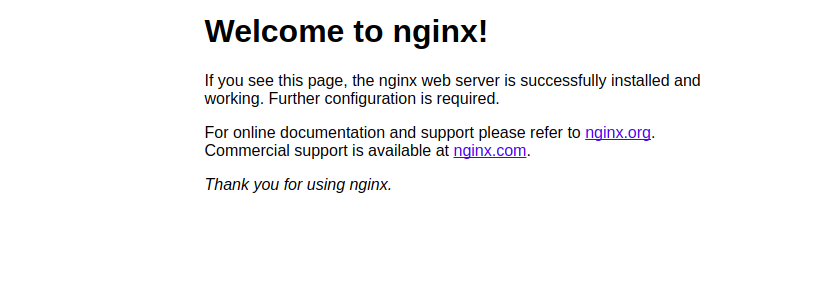

- Click the Endpoints IP address to open the
Welcome to nginx!page in a new browser tab.
Click Check my progress to verify your performed task. If you have successfully deployed infrastructure with Terraform, you will see an assessment score.
In this lab, you used Terraform to initialize, plan, and deploy a Kubernetes cluster along with a service.
