Smart Analytics, Machine Learning, and AI on Google Cloud

访问 700 多个实验和课程

Using the Natural Language API to classify unstructured text

实验 1 小时 universal_currency_alt 5 个积分 show_chart 高级
info 此实验可能会提供 AI 工具来支持您学习。
访问 700 多个实验和课程

Overview

The Cloud Natural Language API lets you extract entities from text, perform sentiment and syntactic analysis, and classify text into categories. In this lab, we'll focus on text classification. Using a database of 700+ categories, this API feature makes it easy to classify a large dataset of text.

What you'll learn

  • Creating a Natural Language API request and calling the API with curl
  • Using the NL API's text classification feature
  • Using text classification to understand a dataset of news articles

What you'll need

  • A Google Cloud Platform Project
  • A Browser, such as Chrome or Firefox

Setup and requirements

Lab setup

For each lab, you get a new Google Cloud project and set of resources for a fixed time at no cost.

  1. Sign in to Qwiklabs using an incognito window.

  2. Note the lab's access time (for example, 1:15:00), and make sure you can finish within that time.
    There is no pause feature. You can restart if needed, but you have to start at the beginning.

  3. When ready, click Start lab.

  4. Note your lab credentials (Username and Password). You will use them to sign in to the Google Cloud Console.

  5. Click Open Google Console.

  6. Click Use another account and copy/paste credentials for this lab into the prompts.
    If you use other credentials, you'll receive errors or incur charges.

  7. Accept the terms and skip the recovery resource page.

Activate Google Cloud Shell

Google Cloud Shell is a virtual machine that is loaded with development tools. It offers a persistent 5GB home directory and runs on the Google Cloud.

Google Cloud Shell provides command-line access to your Google Cloud resources.

  1. In Cloud console, on the top right toolbar, click the Open Cloud Shell button.

  2. Click Continue.

It takes a few moments to provision and connect to the environment. When you are connected, you are already authenticated, and the project is set to your PROJECT_ID. For example:

gcloud is the command-line tool for Google Cloud. It comes pre-installed on Cloud Shell and supports tab-completion.

  • You can list the active account name with this command:
gcloud auth list

Output:

Credentialed accounts: - @.com (active)

Example output:

Credentialed accounts: - google1623327_student@qwiklabs.net
  • You can list the project ID with this command:
gcloud config list project

Output:

[core] project =

Example output:

[core] project = qwiklabs-gcp-44776a13dea667a6 Note: Full documentation of gcloud is available in the gcloud CLI overview guide .

Task 1. Confirm that the Cloud Natural Language API is enabled

  1. Click the Navigation menu icon () at the top left of the screen.

  2. Select APIs & services > Enabled APIs and Services.

  3. Click + ENABLE APIS AND SERVICES.

  4. Then, search for language in the search box. Click Cloud Natural Language API.

  5. If the API is not enabled, you'll see the ENABLE button. Click ENABLE to enable the Cloud Natural Language API.

When the API is enabled, you see the MANAGE button on the Cloud Natural Language API tile.

Task 2. Create an API key

Since you're using curl to send a request to the Natural Language API, you need to generate an API key to pass in the request URL.

  1. To create an API key, in your Console, click Navigation menu > APIs & services > Credentials.

  2. Then click + CREATE CREDENTIALS.

  3. In the drop down menu, select API key:

  4. Next, copy the key you just generated. Then click CLOSE.

Now that you have an API key, save it to an environment variable to avoid having to insert the value of your API key in each request.

  1. In Cloud Shell run the following. Be sure to replace <your_api_key> with the key you just copied:
export API_KEY=<YOUR_API_KEY>

Task 3. Classify a news article

Using the Natural Language API's classifyText method, you can sort text data into categories with a single API call. This method returns a list of content categories that apply to a text document. These categories range in specificity, from broad categories like /Computers & Electronics to highly specific categories such as /Computers & Electronics/Programming/Java (Programming Language). A full list of 700+ possible categories can be found in the Content Categories Guide.

We'll start by classifying a single article, and then we'll see how we can use this method to make sense of a large news corpus. To start, let's take this headline and description from a New York Times article in the food section:

A Smoky Lobster Salad With a Tapa Twist. This spin on the Spanish pulpo a la gallega skips the octopus, but keeps the sea salt, olive oil, pimentón and boiled potatoes.

  1. In your Cloud Shell environment, create a request.json file with the code below. You can either create the file using one of your preferred command line editors (nano, vim, emacs) or use the Cloud Shell code editor:

  1. Create a new file named request.json and add the following:
{ "document":{ "type":"PLAIN_TEXT", "content":"A Smoky Lobster Salad With a Tapa Twist. This spin on the Spanish pulpo a la gallega skips the octopus, but keeps the sea salt, olive oil, pimentón and boiled potatoes." } }
  1. Now, you can send this text to the Natural Language API's classifyText method with the following curl command:
curl "https://language.googleapis.com/v1/documents:classifyText?key=${API_KEY}" \ -s -X POST -H "Content-Type: application/json" --data-binary @request.json

Look at the response:

Output:

{ categories: [ { name: '/Food & Drink/Cooking & Recipes', confidence: 0.85 }, { name: '/Food & Drink/Food/Meat & Seafood', confidence: 0.63 } ] }

The API returned 2 categories for this text:

  • /Food & Drink/Cooking & Recipes
  • /Food & Drink/Food/Meat & Seafood

The text doesn't explicitly mention that this is a recipe or even that it includes seafood, but the API is able to categorize it. Classifying a single article is cool, but to really see the power of this feature, let's classify lots of text data.

Task 4. Classifying a large text dataset

To see how the classifyText method can help us understand a dataset with lots of text, you'll use this public dataset of BBC news articles. The dataset consists of 2,225 articles in five topic areas (business, entertainment, politics, sports, tech) from 2004 - 2005. A subset of these articles are in a public Google Cloud Storage bucket. Each of the articles is in a .txt file.

To examine the data and send it to the Natural Language API, you'll write a Python script to read each text file from Cloud Storage, send it to the classifyText endpoint, and store the results in a BigQuery table. BigQuery is Google Cloud's big data warehouse tool - it lets you easily store and analyze large data sets.

  • To see the type of text you'll be working with, run the following command to view one article:

    gcloud storage cat gs://cloud-training-demos-text/bbc_dataset/entertainment/001.txt

Next you'll create a BigQuery table for your data.

Task 5. Creating a BigQuery table for our categorized text data

Before sending the text to the Natural Language API, you need a place to store the text and category for each article.

  1. In the Google Cloud console, click Navigation menu () > BigQuery.

  2. Click Done for the welcome notice when launching BigQuery.

  3. In the left panel, click the View actions icon () next to your project name and click Create dataset.

  4. For Dataset ID, type news_classification_dataset

  5. Click Create dataset.

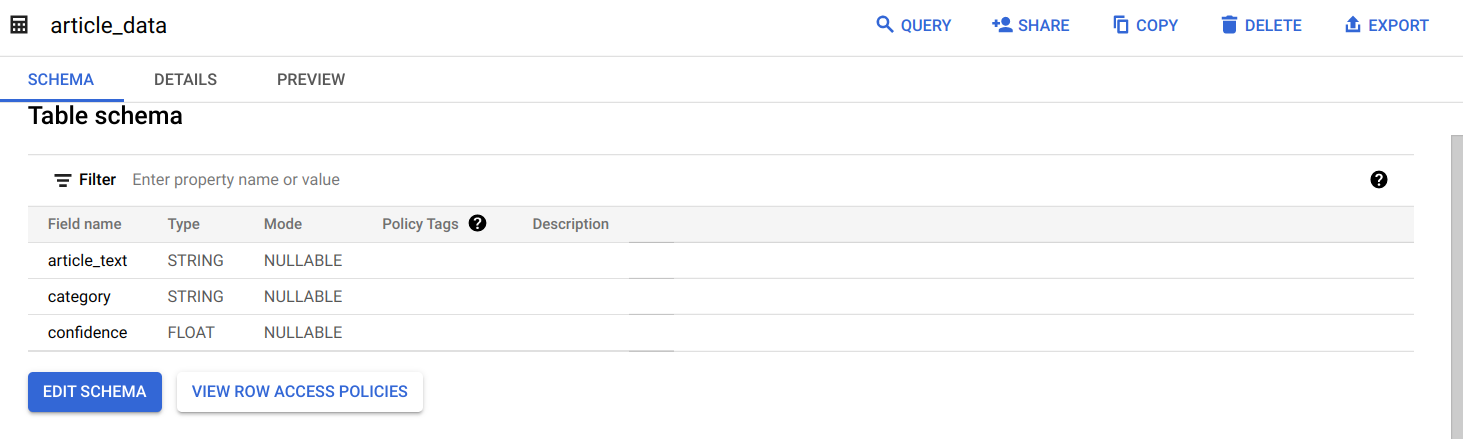

  6. Click on the View actions icon next to your dataset name and click Create table. Use the following settings for the new table:

  • Create table from: Empty table
  • Name your table article_data
  • Click Add Field (+) under Schema, and add the following 3 fields: article_text with type STRING, category with type STRING, and confidence with type FLOAT.
  1. Click CREATE TABLE.

The table is empty right now. In the next step you'll read the articles from Cloud Storage, send them to the Natural Language API for classification, and store the result in BigQuery.

Task 6. Classifying news data and storing the result in BigQuery

Before writing a script to send the news data to the Natural Language API, you need to create a service account. This will be used to authenticate to the Natural Language API and BigQuery from a Python script.

  1. First, back in Cloud Shell, export the name of your Cloud project as an environment variable. Replace <your_project_name> with the GCP Project ID found in the Lab details panel of the lab.
export PROJECT=<your_project_name>
  1. Then run the following commands from Cloud Shell to create a service account:
gcloud iam service-accounts create my-account --display-name my-account gcloud projects add-iam-policy-binding $PROJECT --member=serviceAccount:my-account@$PROJECT.iam.gserviceaccount.com --role=roles/bigquery.admin gcloud projects add-iam-policy-binding $PROJECT --member=serviceAccount:my-account@$PROJECT.iam.gserviceaccount.com --role=roles/serviceusage.serviceUsageConsumer gcloud iam service-accounts keys create key.json --iam-account=my-account@$PROJECT.iam.gserviceaccount.com export GOOGLE_APPLICATION_CREDENTIALS=key.json

Now you're ready to send the text data to the Natural Language API!

To do that, write a Python script using the Python module for Google Cloud. You can accomplish the same thing from any language, there are many different cloud client libraries.

  1. Create a file called classify-text.py and copy the following into it. Replace YOUR_PROJECT with your GCP Project ID.
Note: Please leave the single quotes around the Project ID value in place. from google.cloud import storage, language_v1, bigquery # Set up our GCS, NL, and BigQuery clients storage_client = storage.Client() nl_client = language_v1.LanguageServiceClient() # TODO: replace YOUR_PROJECT with your project id below bq_client = bigquery.Client(project='YOUR_PROJECT') dataset_ref = bq_client.dataset('news_classification_dataset') dataset = bigquery.Dataset(dataset_ref) table_ref = dataset.table('article_data') # Update this if you used a different table name table = bq_client.get_table(table_ref) # Send article text to the NL API's classifyText method def classify_text(article): response = nl_client.classify_text( document=language_v1.types.Document( content=article, type_='PLAIN_TEXT' ) ) return response rows_for_bq = [] files = storage_client.bucket('cloud-training-demos-text').list_blobs() print("Got article files from GCS, sending them to the NL API (this will take ~2 minutes)...") # Send files to the NL API and save the result to send to BigQuery for file in files: if file.name.endswith('txt'): article_text = file.download_as_bytes() nl_response = classify_text(article_text) if len(nl_response.categories) > 0: rows_for_bq.append((str(article_text), str(nl_response.categories[0].name), nl_response.categories[0].confidence)) print("Writing NL API article data to BigQuery...") # Write article text + category data to BQ errors = bq_client.insert_rows(table, rows_for_bq) assert errors == []

Now you're ready to start classifying articles and importing them to BigQuery.

  1. Run the following script:
python3 classify-text.py

The script takes about two minutes to complete, so while it's running let's discuss what's happening.

Note: If you get an error while executing python3 classify-text.py, the cloud shell might be disconnected. In order to fix that, please export your environment variables by running the below commands then re-run the python3 classify-text.py command.

  • export PROJECT= (GCP PROJECT ID)
  • export GOOGLE_APPLICATION_CREDENTIALS=key.json

We're using the google-cloud Python client library to access Cloud Storage, the Natural Language API, and BigQuery. First, a client is created for each service; then references are created to the BigQuery table. files is a reference to each of the BBC dataset files in the public bucket. We iterate through these files, download the articles as strings, and send each one to the Natural Language API in our classify_text function. For all articles where the Natural Language API returns a category, the article and its category data are saved to a rows_for_bq list. When classifying each article is done, the data is inserted into BigQuery using insert_rows().

Note: The Natural Language API can return more than one category for a document, but for this lab you're only storing the first category returned to keep things simple.

When the script has finished running, it's time to verify that the article data was saved to BigQuery.

  1. In BigQuery, navigate to the article_data table in the BigQuery tab and click QUERY > In new tab:

  1. Edit the results in the Untitled box, adding an asterisk between SELECT and FROM:
SELECT * FROM `news_classification_dataset.article_data`
  1. Now click RUN.

You will see your data when the query completes. Scroll to the right to see the category column.

The category column has the name of the first category the Natural Language API returned for the article, and confidence is a value between 0 and 1 indicating how confident the API is that it categorized the article correctly. You'll learn how to perform more complex queries on the data in the next step.

Task 7. Analyzing categorized news data in BigQuery

First, see which categories were most common in the dataset.

  1. In the BigQuery console, click + Compose new query.

  2. Enter the following query:

SELECT category, COUNT(*) c FROM `news_classification_dataset.article_data` GROUP BY category ORDER BY c DESC
  1. Now click Run.

You should see something like this in the query results:

  1. If you wanted to find the article returned for a more obscure category like /Arts & Entertainment/Music & Audio/Classical Music, you could run the following query:
SELECT * FROM `news_classification_dataset.article_data` WHERE category = "/Arts & Entertainment/Music & Audio/Classical Music"
  1. To get only the articles where the Natural language API returned a confidence score greater than 90%, run the following query:
SELECT article_text, category FROM `news_classification_dataset.article_data` WHERE cast(confidence as float64) > 0.9

To perform more queries on your data, explore the BigQuery documentation. BigQuery also integrates with a number of visualization tools. To create visualizations of your categorized news data, check out the Data Studio quickstart for BigQuery.

Congratulations!

You've learned how to use the Natural Language API text classification method to classify news articles. You started by classifying one article, and then learned how to classify and analyze a large news dataset using the NL API with BigQuery.

What we've covered

  • Creating a Natural Language API classifyText request and calling the API with curl
  • Using the Google Cloud Python module to analyze a large news dataset
  • Importing and analyzing data in BigQuery

Copyright 2022 Google LLC All rights reserved. Google and the Google logo are trademarks of Google LLC. All other company and product names may be trademarks of the respective companies with which they are associated.
