Overview

In this lab, you explore how to collect and analyze telemetry from Anthos clusters on bare metal deployments and services.

You leverage Google Cloud's operations suite to do so. Anthos clusters on bare metal write their logs into Cloud Logging and their metrics into Cloud Monitoring. Once the data is saved in the cloud, you can use Google Cloud's operations suite's dashboards to understand and troubleshoot service performance, and have the evolution history over time. In addition, you install the Anthos Service Mesh to collect tracing information automatically.

Bare metal doesn't always mean bare metal

Anthos clusters on bare metal can indeed run on bare metal servers, but can also run on virtual machines in VMware, AWS, or even GCE. Doing bare metal installs doesn't take direct advantage of VMware, AWS, or GKE APIs, it uses a more generic approach to making Anthos work on your cluster.

In this lab, you run Anthos clusters on bare metal atop of GCE VMs. This does require a little extra work as the load balancer VMs need Layer 2 connectivity, so the VMs have been created and configured to use VXLAN, which encapsulates Layer 2 connections on a Layer 3 network. In a pure bare metal deployment, you would just skip this step and everything else would remain the same.

Objectives

In this lab, you learn how to perform the following tasks:

• Learn how to configure the level of logging in your Anthos on bare metal clusters.
• Evaluate service performance using Cloud Monitoring and Cloud Logging features within Google Cloud.
• Install Anthos Service Mesh and investigate the telemetry in Cloud Tracing.
• Enable Node Problem Detector to detect issues in your cluster nodes.

Setup and requirements

In this task, you use Qwiklabs and perform initialization steps for your lab.

For each lab, you get a new Google Cloud project and set of resources for a fixed time at no cost.

1. Sign in to Qwiklabs using an incognito window.

2. Note the lab's access time (for example, 1:15:00), and make sure you can finish within that time.
   There is no pause feature. You can restart if needed, but you have to start at the beginning.

3. When ready, click Start lab.

4. Note your lab credentials (Username and Password). You will use them to sign in to the Google Cloud Console.

5. Click Open Google Console.

6. Click Use another account and copy/paste credentials for this lab into the prompts.
   If you use other credentials, you'll receive errors or incur charges.

7. Accept the terms and skip the recovery resource page.

After you complete the initial sign-in steps, the project dashboard appears.

8. Click Select a project, highlight your Google Cloud Project ID, and click Open to select your project.

Activate Google Cloud Shell

Google Cloud Shell is a virtual machine that is loaded with development tools. It offers a persistent 5GB home directory and runs on the Google Cloud.

Google Cloud Shell provides command-line access to your Google Cloud resources.

1. In Cloud console, on the top right toolbar, click the Open Cloud Shell button.



2. Click Continue.

It takes a few moments to provision and connect to the environment. When you are connected, you are already authenticated, and the project is set to your PROJECT_ID. For example:

gcloud is the command-line tool for Google Cloud. It comes pre-installed on Cloud Shell and supports tab-completion.

• You can list the active account name with this command:

gcloud auth list

Output:

Credentialed accounts: - @.com (active)

Example output:

Credentialed accounts: - google1623327_student@qwiklabs.net

• You can list the project ID with this command:

gcloud config list project

Output:

[core] project =

Example output:

[core] project = qwiklabs-gcp-44776a13dea667a6 Note: Full documentation of gcloud is available in the gcloud CLI overview guide .

Task 1. Explore the pre-created environment

This environment has been pre-configured with a hybrid Anthos cluster on bare metal running on Google Cloud's Compute Engine VMs. The hybrid deployment model is a specialized multi-cluster deployment that enables to run user workloads on your admin cluster. In this type of deployment, you could add more user clusters to support multiple teams or workload types.

Note: Hybrid cluster deployments:

• Allow re-use of control plane nodes for user workloads.
• Efficient choice when there are no security concerns regarding running user workloads on your admin cluster, which contains sensitive data.

Check the provisioned Compute Engine infrastructure

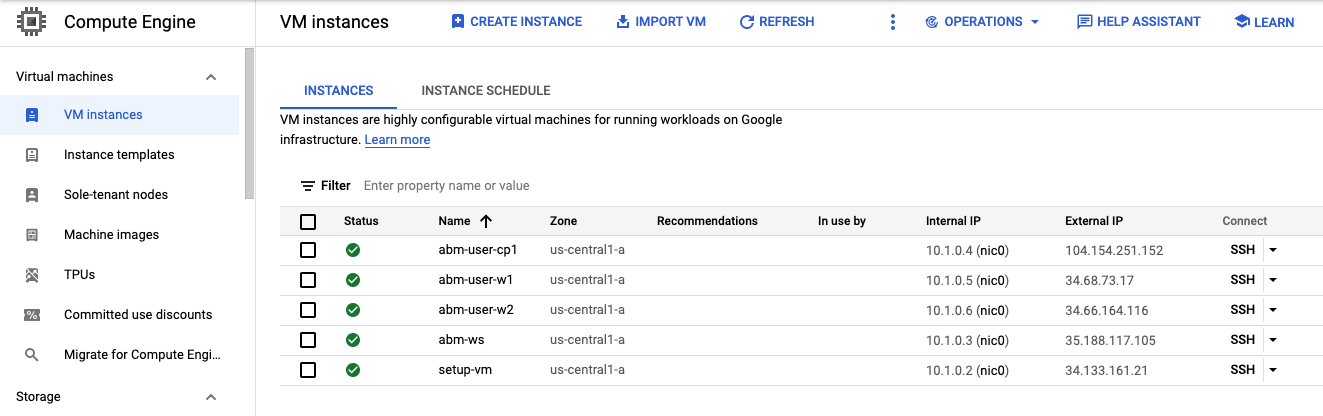

1. In the Console, go to Navigation menu > Compute Engine > VM instances and verify that you have five VMs. It should look like this:

The pre-created VMs have the following functions:

• setup-vm: a vm used to create the rest of the infrastructure. Check out the startup_script to check the steps taken to create the infrastructure and install the Anthos software.
• abm-ws: an admin workstation in the same network as the cluster to perfom the configuration, creation, and management of the Anthos cluster on bare metal.
• abm-user-cp1: a control plane nodes.
• abm-user-w1 & abm-user-w2: two worker nodes.

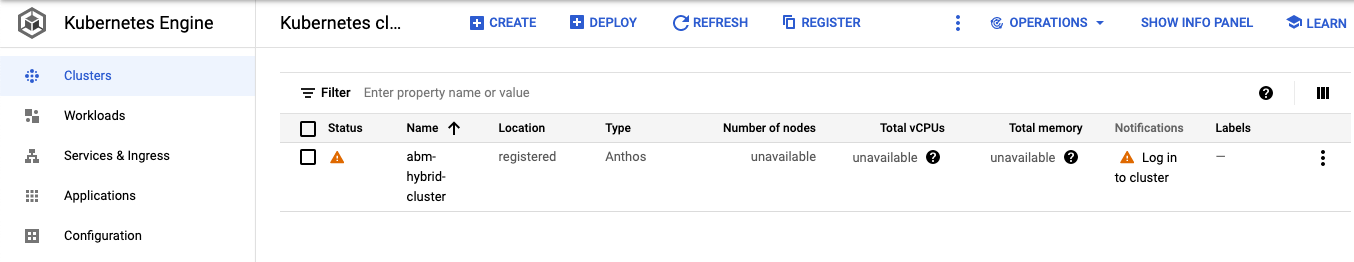

2. Go to Navigation menu > Kubernetes Engine > Clusters and verify that you have a single Anthos cluster registered. Notice you have not logged in yet. It should look like this:

Task 2. Log in to your Anthos cluster

When you create Anthos clusters in Google Cloud, AWS, or VMware, you typically use an environment-specific installation process that takes advantage of native APIs.

When you create a bare metal cluster, the installation process doesn't automatically create machines for you (typically, they are physical machines so they can't be created out of thin air). That doesn't mean, however, that you can't create "bare metal" clusters running on VMs in any of those environments.

In this lab, the "bare metal" cluster has been created on GCE VMs. It will behave almost identically to a bare metal cluster running on physical devices in your data center. Where the administration in the lab deviates from a pure bare metal scenario, the lab instructions will make it clear.

The cluster in the lab (see diagram below) is made of a single master node and two worker nodes. In a production environment, you might consider using three nodes for high availability of both the data and the control plane.

Investigate the configuration in the admin workstation

1. Set the Zone environment variable:

   ZONE={{{ project_0.default_zone| "Zone added at lab start" }}}

2. In Cloud Shell, SSH into admin workstation, accepting the defauls for any questions:

gcloud compute ssh --ssh-flag="-A" root@abm-ws \ --zone $ZONE \ --tunnel-through-iap

3. Set the KUBECONFIG environment variable with the path to the cluster's configuration file to run kubectl commands on the cluster:

cd baremetal export CLUSTER_ID=abm-hybrid-cluster export KUBECONFIG=$HOME/baremetal/bmctl-workspace/$CLUSTER_ID/$CLUSTER_ID-kubeconfig kubectl get nodes -o wide You should see output that looks like this:

Output:

NAME STATUS ROLES AGE VERSION INTERNAL-IP EXTERNAL-IP OS-IMAGE KERNEL-VERSION CONTAINER-RUNTIME abm-user-cp1 Ready control-plane,master 45m v1.23.5-gke.1504 10.200.0.3 Ubuntu 20.04.5 LTS 5.15.0-1029-gcp containerd://1.5.11-gke.0 abm-user-w1 Ready worker 42m v1.23.5-gke.1504 10.200.0.4 Ubuntu 20.04.5 LTS 5.15.0-1029-gcp containerd://1.5.11-gke.0 abm-user-w2 Ready worker 42m v1.23.5-gke.1504 10.200.0.5 Ubuntu 20.04.5 LTS 5.15.0-1029-gcp containerd://1.5.11-gke.0

4. Look at the configuration file used to create the Anthos cluster on bare metal and check that the desired options matched the current configuration:

cat bmctl-workspace/abm-hybrid-cluster/abm-hybrid-cluster.yaml Notice that the cluster type is set to hybrid. Note: Questions

• What are the IPs for the master nodes?
• What are the IPs for the worker nodes?
• What container runtime is being used?

Log in to your Anthos cluster on bare metal from the Console

5. In Cloud Shell, create a Kubernetes Service Account on your cluster and grant it the cluster-admin role:

kubectl create serviceaccount -n kube-system admin-user kubectl create clusterrolebinding admin-user-binding \ --clusterrole cluster-admin --serviceaccount kube-system:admin-user

6. Create a token that you can use to log in to the cluster from the Console:

kubectl create token admin-user -n kube-system

7. Select the token in the SSH session (this will copy the token - don't try to copy with CTRL+C).

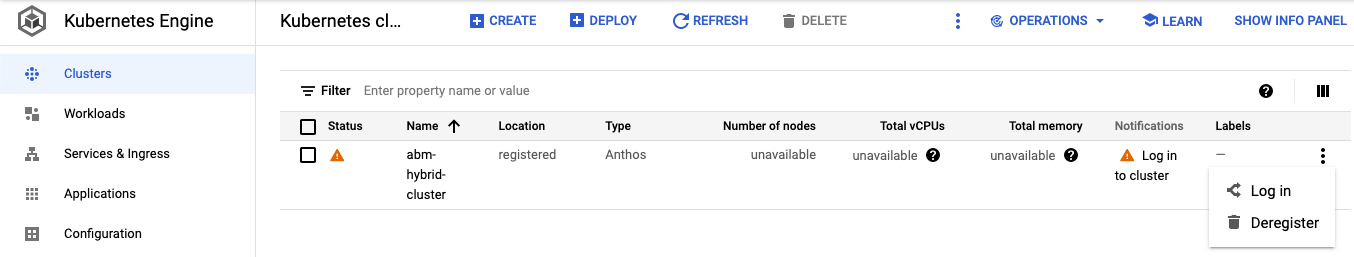

8. Find the abm-admin-cluster entry in the cluster list showing in the Console and click the Actions icon (three dots) at the far right of the row.

9. Select Log in, select Token, then paste the token from your Clipboard into the provided field. Click Login. When you're done, it should look like this:

Congratulations! You have successfully signed in to your Anthos on bare metal hybrid cluster!

Task 3. Understand installed observability software stack

• Check all the observability tools installed in the cluster:

kubectl -n kube-system get pods -l "managed-by=stackdriver" __Output:__ NAME READY STATUS gke-metrics-agent-2g59c 1/1 Running gke-metrics-agent-m476n 1/1 Running gke-metrics-agent-rznvw 1/1 Running kube-state-metrics-6c6f7b8bb7-rzbpb 1/1 Running node-exporter-mc6pl 1/1 Running node-exporter-vxnpp 1/1 Running node-exporter-xj8ng 1/1 Running stackdriver-log-forwarder-4kjlm 1/1 Running stackdriver-log-forwarder-f8jhc 1/1 Running stackdriver-log-forwarder-x9lbv 1/1 Running stackdriver-metadata-agent-cluster-level-js 1/1 Running Note: Cloud Logging and Cloud Monitoring are installed and activated in each cluster when you create a new admin, user, or hybrid cluster. The Stackdriver agents include several components on each cluster:

• Stackdriver Operator (stackdriver-operator-*). Manages the lifecycle for all other Stackdriver agents deployed onto the cluster.
• Stackdriver Custom Resource. A resource that is automatically created as part of the Anthos clusters on bare metal installation process.
• Stackdriver Log Forwarder (stackdriver-log-forwarder-*). A Fluent Bit daemonset that forwards logs from each machine to the Cloud Logging. The log Forwarder buffers the log entries on the node locally and re-sends them for up to 4 hours. If the buffer gets full or if the Log Forwarder can't reach the Cloud Logging API for more than 4 hours, logs are dropped.
• Stackdriver Metadata Collector (stackdriver-metadata-agent-). A deployment that sends metadata for Kubernetes resources such as pods, deployments, or nodes to the Stackdriver Resource Metadata API; this data is used to enrich metric queries by enabling you to query by deployment name, node name, or even Kubernetes service name.

You can always disable Cloud Logging and Cloud Monitoring by deleting the resources using kubectl delete. If you want to use a third-party service for monitoring your cluster, check out the documentation to find guides to work with third-party solutions such as Elastic Stack, Splunk Connect, or Datadog.

Task 4. Explore audit logs

1. Verify that the configuration file used to create the Anthos cluster on bare metal does not have the setting to disable the collection of audit logs:

cat bmctl-workspace/abm-hybrid-cluster/abm-hybrid-cluster.yaml | grep disableCloudAuditLogging:

Notice it's an empty output.

Note: Audit logs keep a chronological record of calls made to a cluster's Kubernetes API server. Audit logs are useful for investigating suspicious API requests and for collecting statistics.

2. Access the audit logs using the gcloud cli tool:

export PROJECT_ID=$(gcloud config get-value project) echo "gcloud logging read 'logName="projects/${PROJECT_ID}/logs/externalaudit.googleapis.com%2Factivity" AND resource.type="k8s_cluster" AND protoPayload.serviceName="anthosgke.googleapis.com"' --limit 2 --freshness 300d" > get_audit_logs.sh sh get_audit_logs.sh

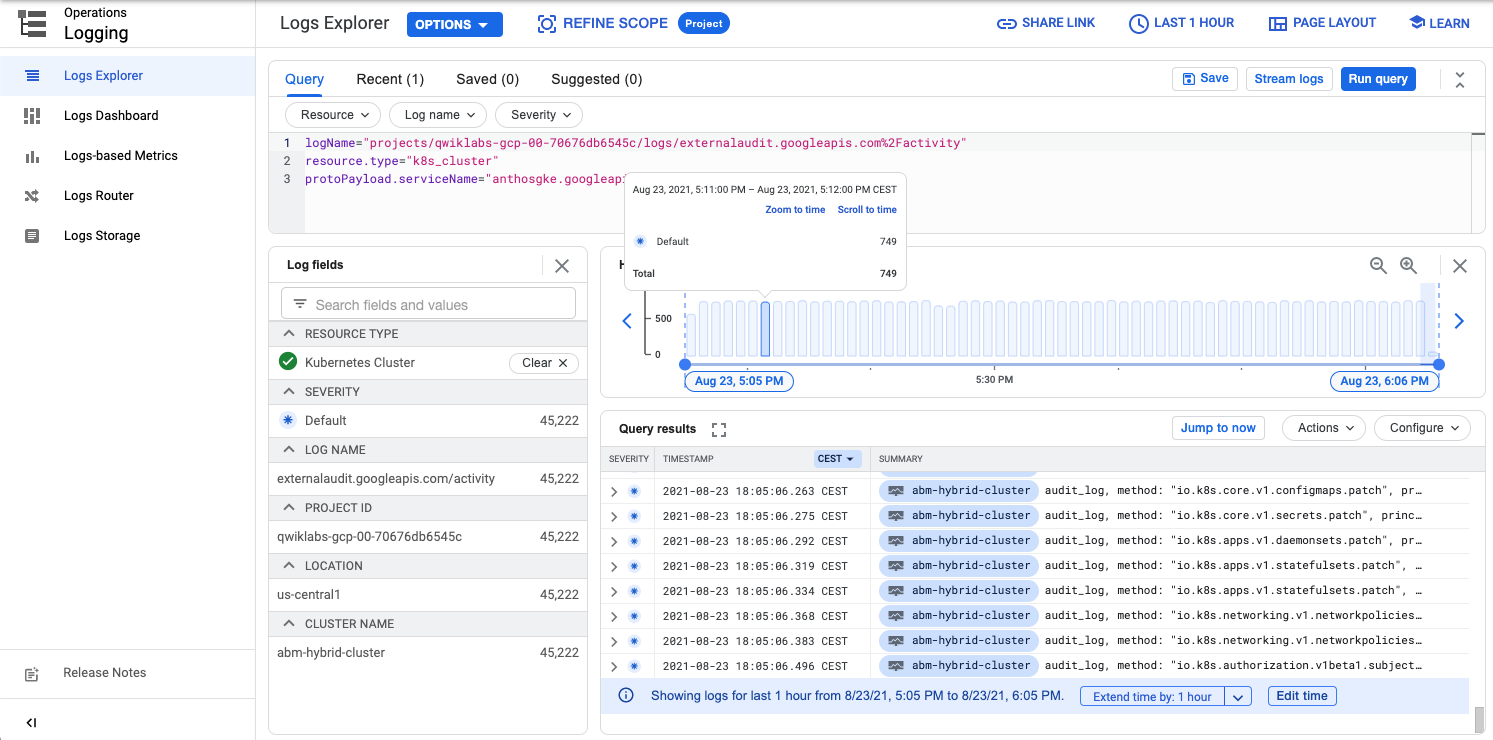

3. Access the audit logs from the Console by navigating to Navigation menu > Logging > Logs Explorer and entering the following query. Then, replace the PROJECT_ID in the query with and click Run query:

logName="projects/PROJECT_ID/logs/externalaudit.googleapis.com%2Factivity" resource.type="k8s_cluster" protoPayload.serviceName="anthosgke.googleapis.com"

Task 5. Explore cluster logs

1. On the Logs Explorer screen, remove all filters from the query box and click Run query.

Notice on the left side of the screen that you can choose to explore Kubernetes Container, Cluster, and Node logs. If you don't see them, click on the buble named "Log fields" to view them.

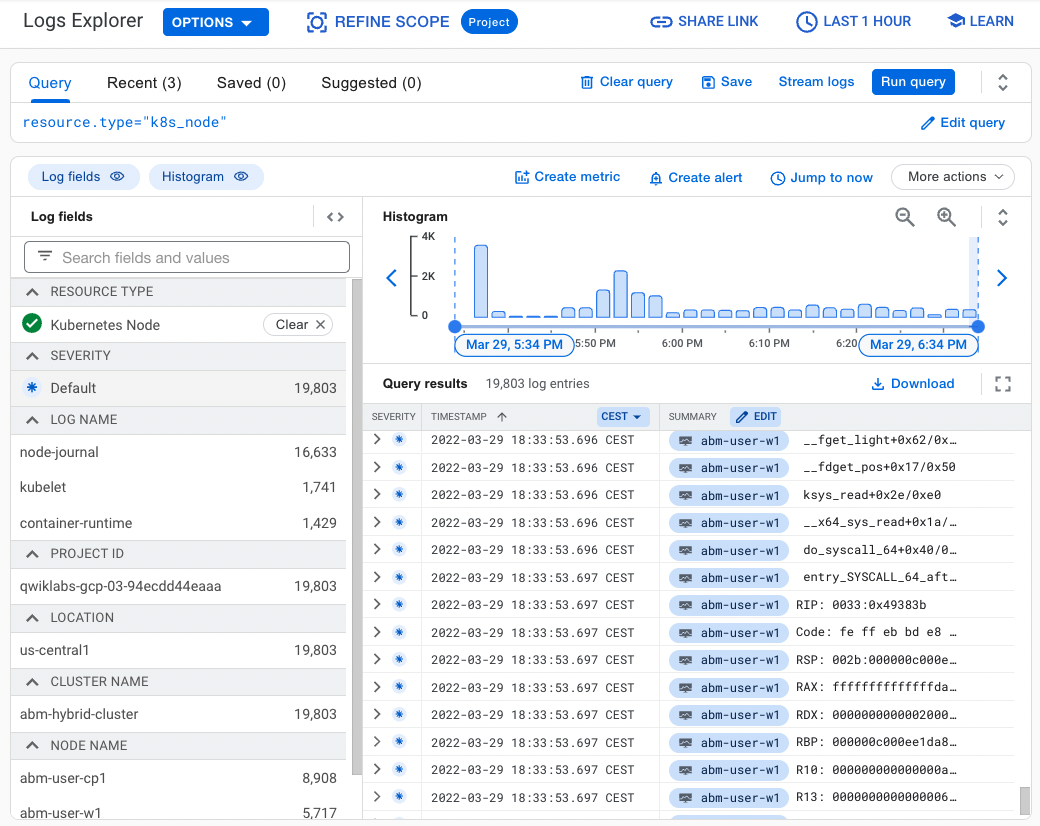

2. In the left-side logs field panel, select Kubernetes Node.

3. Now select the abm-user-cp1 node name to further filter the logs.

Task 6. Explore application logs

1. Come back to the Cloud Shell window you were using to SSH into the admin workstation. Verify that the configuration file used to create the Anthos cluster on bare metal has the setting enabled to collect metrics and logs from our applications:

cat bmctl-workspace/abm-hybrid-cluster/abm-hybrid-cluster.yaml | grep enableApplication:

Output:

enableApplication: true

2. Create a hello-app application and a Kubernetes Service of type LoadBalancer to access the app:

kubectl create deployment hello-app --image=gcr.io/google-samples/hello-app:2.0 kubectl expose deployment hello-app --name hello-app-service --type LoadBalancer --port 80 --target-port=8080

3. Get the IP for this workload:

kubectl get svc

Output:

NAME TYPE CLUSTER-IP EXTERNAL-IP PORT(S) AGE hello-app-service LoadBalancer 10.100.255.205 10.200.0.101 80:32014/TCP 10m kubernetes ClusterIP 10.96.0.1 443/TCP 3d23h

4. Access the public IP provided by the hello-app-service by running the below command multiple times.

curl 10.200.0.101

Output:

Hello, world! Version: 2.0.0 Hostname: hello-app-7c5698d447-qpwwr

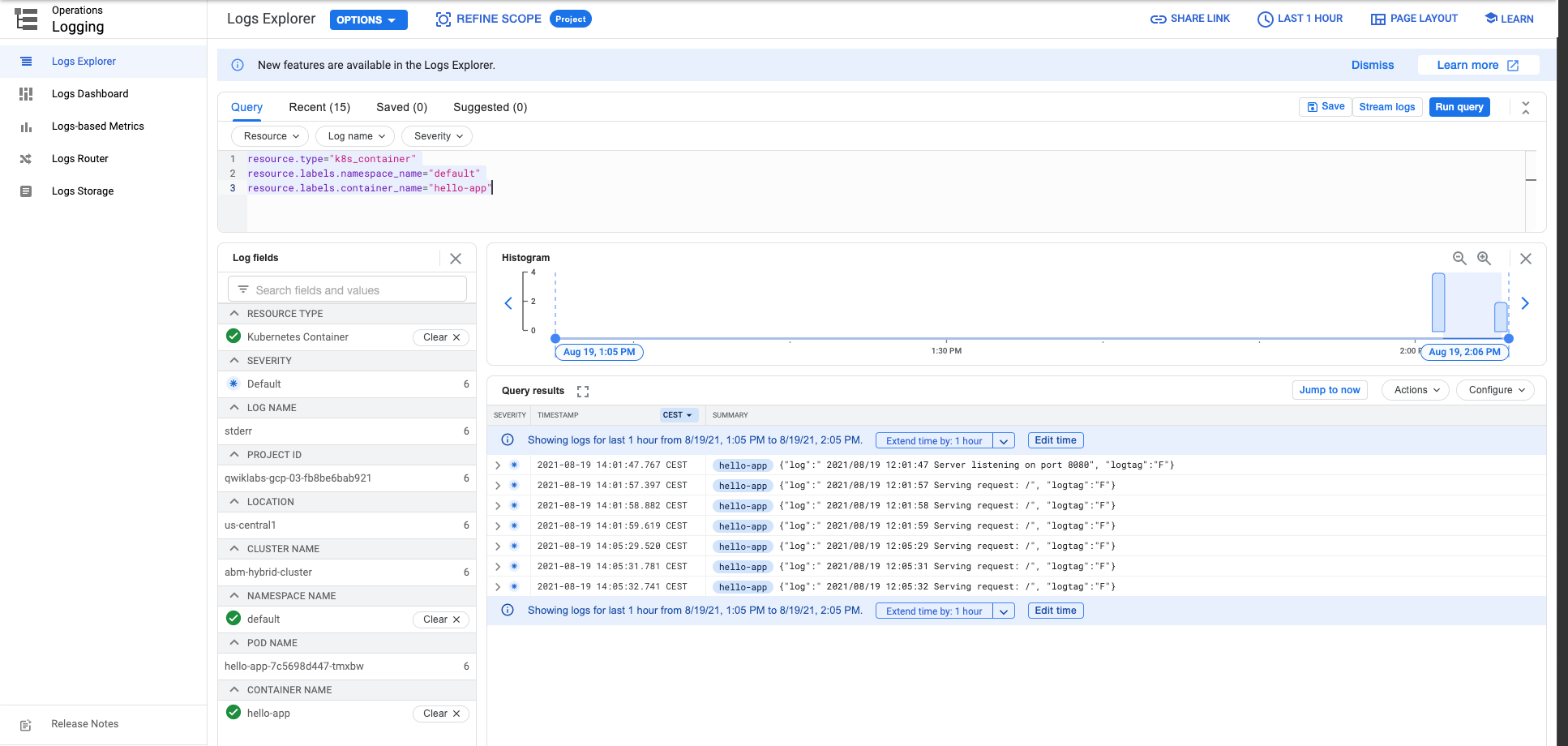

5. In the Console, go to Navigation menu > Logging > Logs Explorer and enter the following query and click Run query:

resource.type="k8s_container" resource.labels.namespace_name="default" resource.labels.container_name="hello-app"

It should look like this:

Notice that a log was created every time that you ran the curl command.

Task 7. Explore cluster metrics

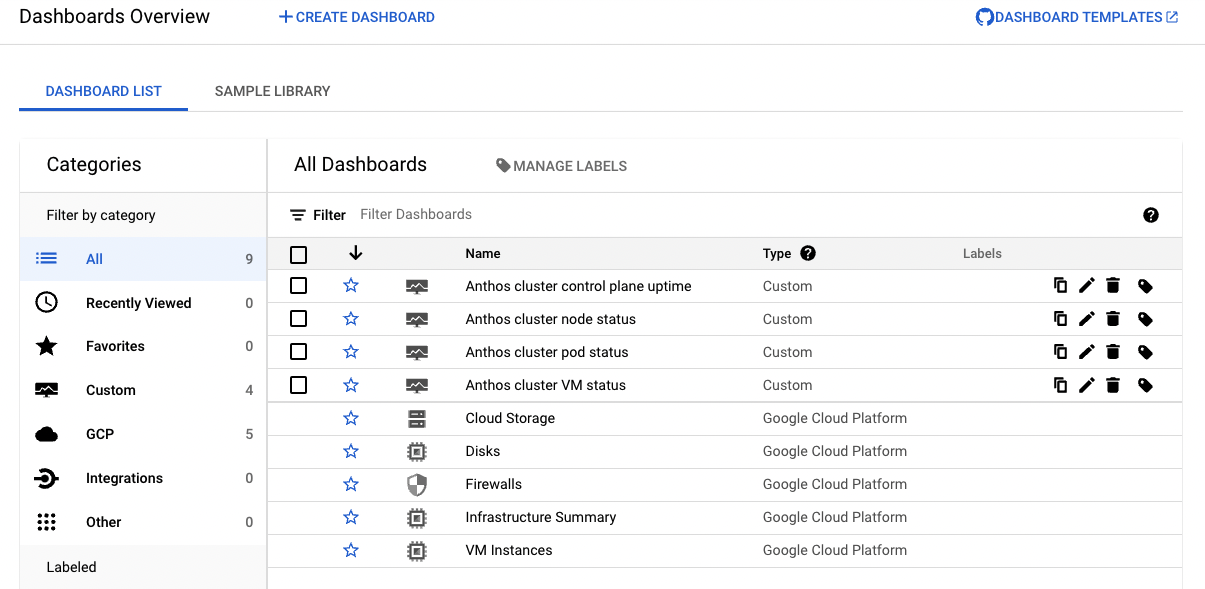

1. In the Console, go to Navigation menu > Monitoring > Dashboards. Notice that the Anthos on bare metal installer has created some dashboards for you already.

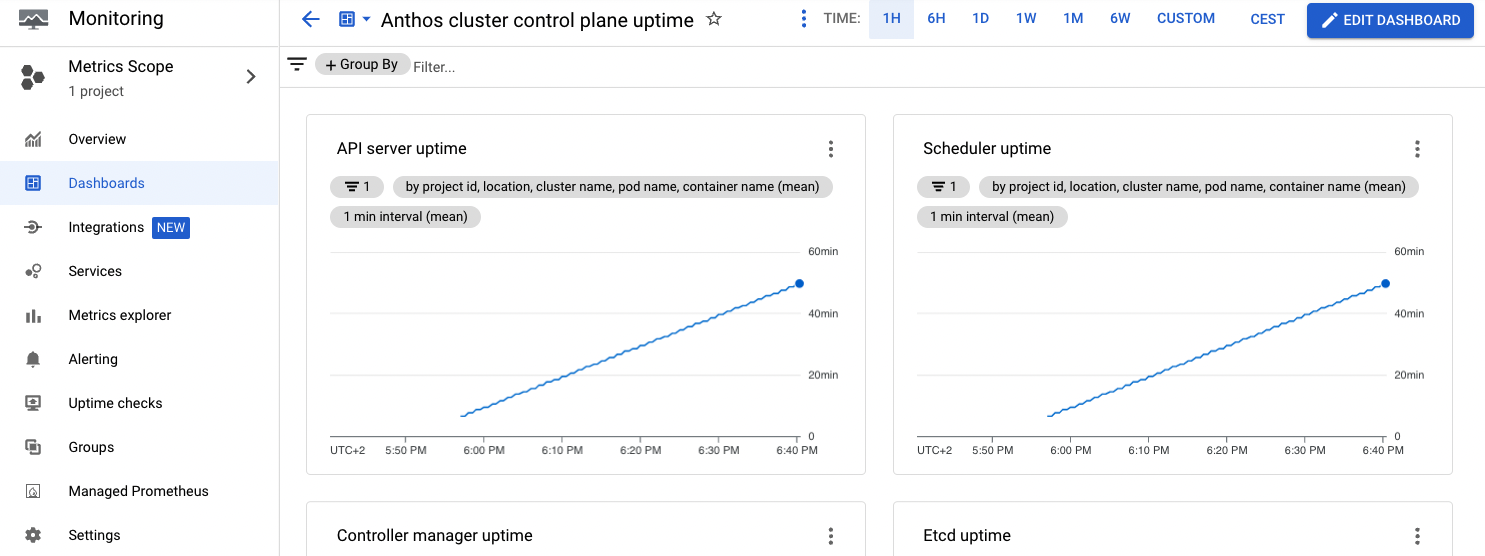

2. Click the Anthos cluster control plane uptime to see the availability of your cluster. It should look something like this.

3. Explore the other dashboards and the metrics available.

Task 8. Explore application metrics

1. In the Console, go to Navigation menu > Monitoring > Dashboards.

2. In the dashboards list, locate the Anthos cluster pod status and click Open dashboard settings icon > Copy Dashboard.

3. Name it Hello App Anthos cluster pod status and click Copy.

4. Click the newly created dashboard. You see that it's gathering metrics for all pods in your cluster for a variety of metrics. Let's change it so that it only monitors the hello-app pod that we created earlier. For that, click the Edit Dashboard button the top right of the screen.

5. Change all the metrics to only monitor your hello-app pod. For that, select one of the graphs and see how an Options tab opens on the left side of the screen. Remove all filters, and create a single filter with the following details. Then, click Done and do the same in the next graph.

   Key	Value
   Label	container
   Comparison	=(equals)
   Value	hello-app

6. Once you are done modifying all the graphs, click on Close Editor on the top right corner of your screen.

Congratulations! You have successfully created a dashboard in Google Cloud to monitor your hello-app pod running on your on-premises cluster.

Task 9. Install Anthos Service Mesh

1. Come back to the Cloud Shell window you were using to SSH into the admin workstation. Create an overlay file that will be used in the Anthos Service Mesh installation to enable Cloud Trace:

cat <<'EOF' > cloud-trace.yaml apiVersion: install.istio.io/v1alpha1 kind: IstioOperator spec: meshConfig: enableTracing: true values: global: proxy: tracer: stackdriver EOF

2. Download the asmcli tool to install Anthos Service Mesh on your cluster:

curl https://storage.googleapis.com/csm-artifacts/asm/asmcli_1.15 > asmcli chmod +x asmcli

3. Clean up the environment variables to make sure there are no conflicts with Kubeconfig when installing Anthos Service Mesh:

export PROJECT_ID= export CLUSTER_NAME= export CLUSTER_LOCATION=

4. Install Anthos Service Mesh in your cluster using the Cloud Trace overlay:

export FLEET_PROJECT_ID=$(gcloud config get-value project) ./asmcli install \ --kubeconfig ./bmctl-workspace/abm-hybrid-cluster/abm-hybrid-cluster-kubeconfig \ --fleet_id $FLEET_PROJECT_ID \ --output_dir . \ --platform multicloud \ --enable_all \ --ca mesh_ca \ --custom_overlay cloud-trace.yaml

Task 10. Explore application tracing

1. Create and label a demo namespace to enable automatic sidecar injection:

export ASM_REV=$(kubectl -n istio-system get pods -l app=istiod -o json | jq -r '.items[0].metadata.labels["istio.io/rev"]') kubectl create namespace demo kubectl label namespace demo istio.io/rev=$ASM_REV --overwrite

2. Install the Hipster Shop application in the demo namespace:

kubectl apply -f https://raw.githubusercontent.com/GoogleCloudPlatform/microservices-demo/master/release/kubernetes-manifests.yaml -n demo kubectl apply -f https://raw.githubusercontent.com/GoogleCloudPlatform/microservices-demo/master/release/istio-manifests.yaml -n demo kubectl patch deployments/productcatalogservice -p '{"spec":{"template":{"metadata":{"labels":{"version":"v1"}}}}}' -n demo

3. To be able to access the application from outside the cluster, install the ingress Gateway:

git clone https://github.com/GoogleCloudPlatform/anthos-service-mesh-packages kubectl apply -f anthos-service-mesh-packages/samples/gateways/istio-ingressgateway -n demo

4. Configure the Gateway:

kubectl apply -f https://raw.githubusercontent.com/GoogleCloudPlatform/microservices-demo/master/release/istio-manifests.yaml -n demo

5. View the Hipster Shop pods that have been created in the demo namespace. Notice that they have a 2/2 in a ready state. That means that the two containers are ready, including the application container and the mesh sidecar container.

kubectl get pods -n demo

Output:

NAME READY STATUS RESTARTS AGE adservice-6968794d67-9jjsz 2/2 Running 0 9m34s cartservice-7749594b7b-hvjhr 2/2 Running 0 9m35s checkoutservice-74ffc6d4d7-xhl82 2/2 Running 0 9m35s currencyservice-6d9994d877-glg4j 2/2 Running 0 9m34s emailservice-664c59564c-7d742 2/2 Running 0 9m35s frontend-6584fd4c49-sq5v9 2/2 Running 0 9m35s loadgenerator-656dfb64b4-9wxh7 2/2 Running 0 9m34s paymentservice-57f8db46c-fb87h 2/2 Running 0 9m35s productcatalogservice-5594689988-db8d8 2/2 Running 0 9m32s recommendationservice-7f75cf8b77-rvzkl 2/2 Running 0 9m35s redis-cart-74594bd569-pvkp6 2/2 Running 0 9m34s shippingservice-84d57c8cbc-bwp64 2/2 Running 0 9m34s

6. Get the external IP from the istio-ingressgateway to access the Hipster Shop that you just deployed:

kubectl get svc istio-ingressgateway -n demo

Output:

NAME TYPE CLUSTER-IP EXTERNAL-IP istio-ingressgateway LoadBalancer 10.96.7.34 10.200.0.103

7. Access the Hipster Shop using the IP you copied in the previous task:

curl 10.200.0.103

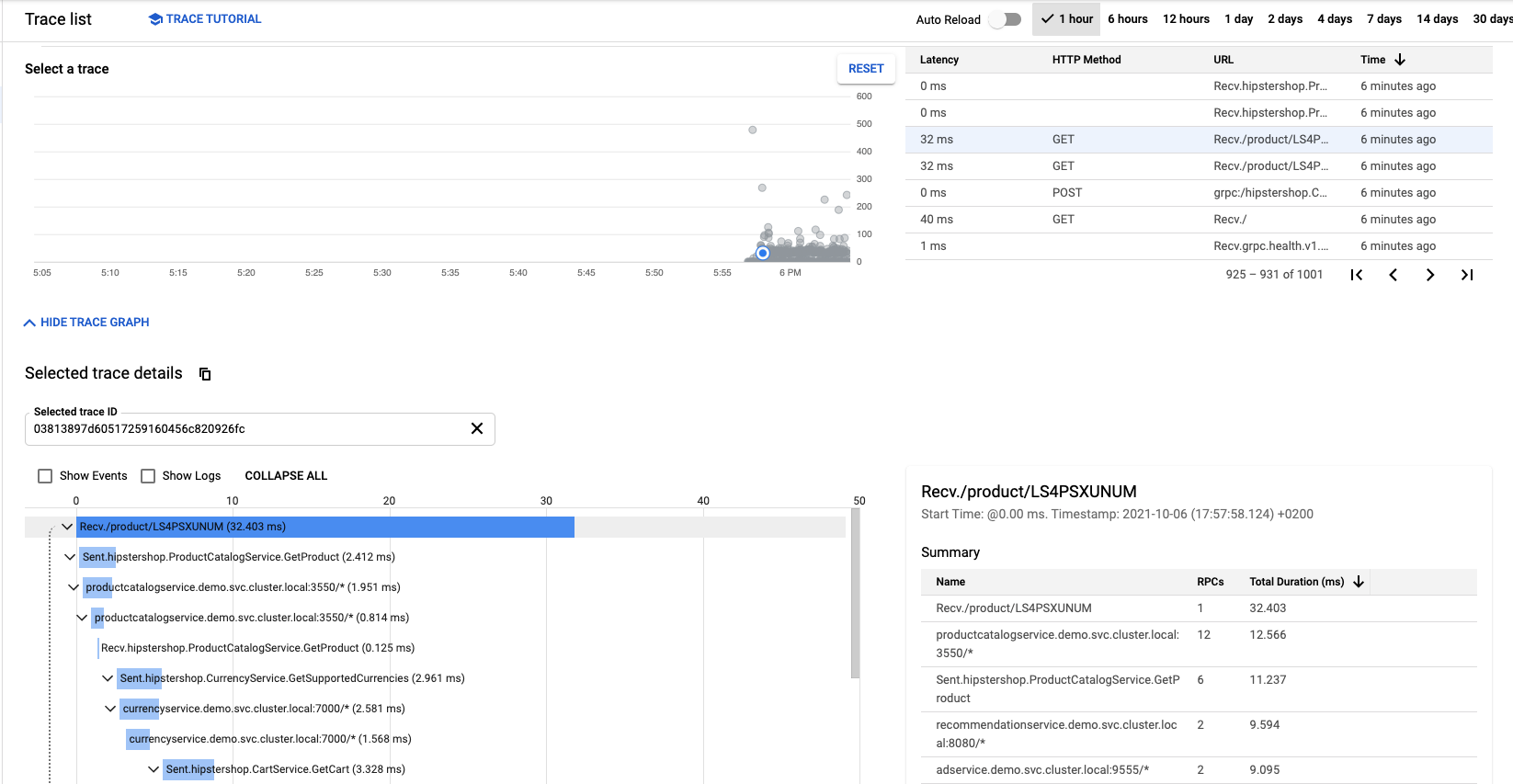

8. In the Console, go to Navigation menu > Trace > Trace List and select a trace from the graph that you would like to review. You see the breakdown by service so that you can investigate bottlenecks and networking issues.

Task 11. Detect and repair node problems

Many node problems can affect the pods running on the node, such as issues in the kernel, hardware, or container runtime. These problems are invisible to the upstream layers in the cluster management stack.

Node Problem Detector (NDP) detects common node problems, and reports node events and conditions. NPD runs as a systemd service on each node and can be enabled and disabled.

1. Come back to the Cloud Shell window you were using to SSH into the admin workstation. Check that the following conditions are being checked on the worker nodes by default:

kubectl describe node abm-user-w2

2. In the Conditions section of the output, verify that that the following conditions are present:

Checks provided by the Node Problem Detector:

• FrequentContainerdRestart
• NoFrequentContainerdRestart
• KernelHasNoDeadlock
• ReadonlyFilesystem
• FilesystemIsNotReadOnly
• FrequentUnregisterNetDevice
• NoFrequentUnregisterNetDevice
• ContainerRuntimeIsHealthy
• KubeletIsHealthy
• FrequentKubeletRestart
• FrequentDockerRestart

Checks provided by Kubernetes:

• MemoryPressure
• DiskPressure
• PIDPressure
• Ready

3. Also, verify that there are not any Events indicating there might be a problem.

Node Problem Detector is enabled by default in your cluster starting in Anthos clusters on bare metal v1.10.

4. Edit the configmap to enable or disable it:

kubectl edit configmap node-problem-detector-config -n cluster-abm-hybrid-cluster

5. Add the following lines at the end of the file. Remember that before writing on the file, you need to press the letter a:

data: enabled: "true"

After editing, it should look similar to this:

apiVersion: v1 kind: ConfigMap metadata: creationTimestamp: "2021-10-12T18:57:56Z" name: node-problem-detector-config namespace: cluster-abm-hybrid-cluster resourceVersion: "6784" uid: f6550318-103d-474c-b818-0485a70f5f94 data: enabled: "true"

6. Press the keyboard key ESC, then enter :wq and press Enter to save the file.

Now, when you get the state of the node, nothing will have changed, but you could disable it by changing the value to false.

7. Run kubectl describe again to view that no changes were made:

kubectl describe node abm-user-w2

8. Verify that the same conditions are being displayed:

• FrequentContainerdRestart
• NoFrequentContainerdRestart
• KernelHasNoDeadlock
• ReadonlyFilesystem
• FilesystemIsNotReadOnly
• FrequentUnregisterNetDevice
• NoFrequentUnregisterNetDevice
• ContainerRuntimeIsHealthy
• KubeletIsHealthy
• FrequentKubeletRestart
• FrequentDockerRestart
• MemoryPressure
• DiskPressure
• PIDPressure
• Ready

9. Also, verify that there are not any Events indicating there might be a problem.

Introduction of a node problem

Let's introduce a problem in one of the nodes to see if NPD reports it correctly.

1. Open a new tab in the Google Cloud Console.

2. Set the Zone environment variable:

   ZONE={{{ project_0.default_zone| "Zone added at lab start" }}}

3. SSH into the abm-user-w2 worker node:

gcloud compute ssh --ssh-flag="-A" root@abm-user-w2 --zone $ZONE --tunnel-through-iap

4. Stop the container runtime to simulate a problem in the node:

sudo systemctl stop containerd

5. Go back to the first Cloud Shell window and check the conditions of the node where we stopped containerd:

kubectl describe node abm-user-w2

Notice that the status of the Condition "ContainerRuntimeUnhealthy" is "true". Also, notice that the following events appar now:

• ContainerdUnhealthy
• NodeNotReady
• ContainerGCFailed

All errors might take a couple seconds to appear.

6. In the second Cloud Shell window, you can get more information by running journalctl. Input letter q to exit:

journalctl -u node-problem-detector

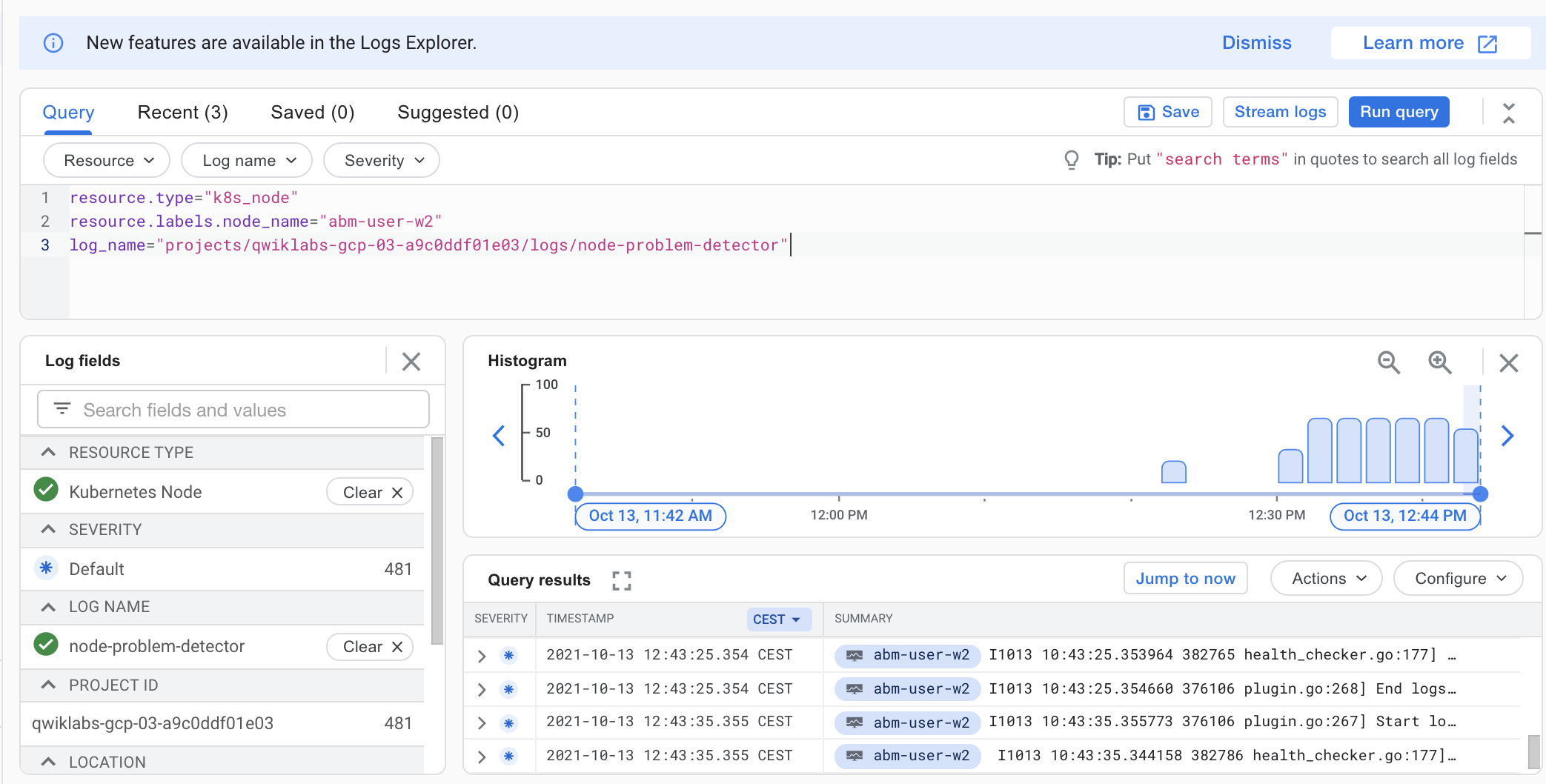

7. Alternatively, you can also check the logs in Cloud Logging. To do so, in the Console, go to Navigation menu > Logging > Logs Explorer and enter the following query. Then, replace the PROJECT_ID in the query with and click Run query:

resource.type="k8s_node" resource.labels.node_name="abm-user-w2" log_name="projects/PROJECT_ID/logs/node-problem-detector"

It should look like this:

Repairing the node problem

8. To repair the node problem, go to the second Cloud Shell window, and start the container runtime again:

sudo systemctl start containerd

9. Check the status of the node until the Condition "ContainerRuntimeUnhealthy" is false:

kubectl describe node abm-user-w2

Task 12. Troubleshooting

1. Set the Zone environment variable:

   ZONE={{{ project_0.default_zone| "Zone added at lab start" }}}

2. If you get disconnected from Cloud Shell and want to sign back into the admin workstation:

gcloud compute ssh --ssh-flag="-A" root@abm-ws \ --zone $ZONE \ --tunnel-through-iap

3. If you get disconnected from Cloud Shell and want to connect to the hybrid cluster:

# From the hybrid workstation (root@abm-ws) export KUBECONFIG=$KUBECONFIG:~/baremetal/bmctl-workspace/abm-hybrid-cluster/abm-hybrid-cluster-kubeconfig kubectl get nodes

Review

In this lab, you explored logs and metrics from Anthos clusters on bare metal. You learned how to access cluster, application, and audit logs, as well as cluster and application metrics.

End your lab

When you have completed your lab, click End Lab. Google Cloud Skills Boost removes the resources you’ve used and cleans the account for you.

You will be given an opportunity to rate the lab experience. Select the applicable number of stars, type a comment, and then click Submit.

The number of stars indicates the following:

• 1 star = Very dissatisfied
• 2 stars = Dissatisfied
• 3 stars = Neutral
• 4 stars = Satisfied
• 5 stars = Very satisfied

You can close the dialog box if you don't want to provide feedback.

For feedback, suggestions, or corrections, please use the Support tab.

Copyright 2022 Google LLC All rights reserved. Google and the Google logo are trademarks of Google LLC. All other company and product names may be trademarks of the respective companies with which they are associated.
